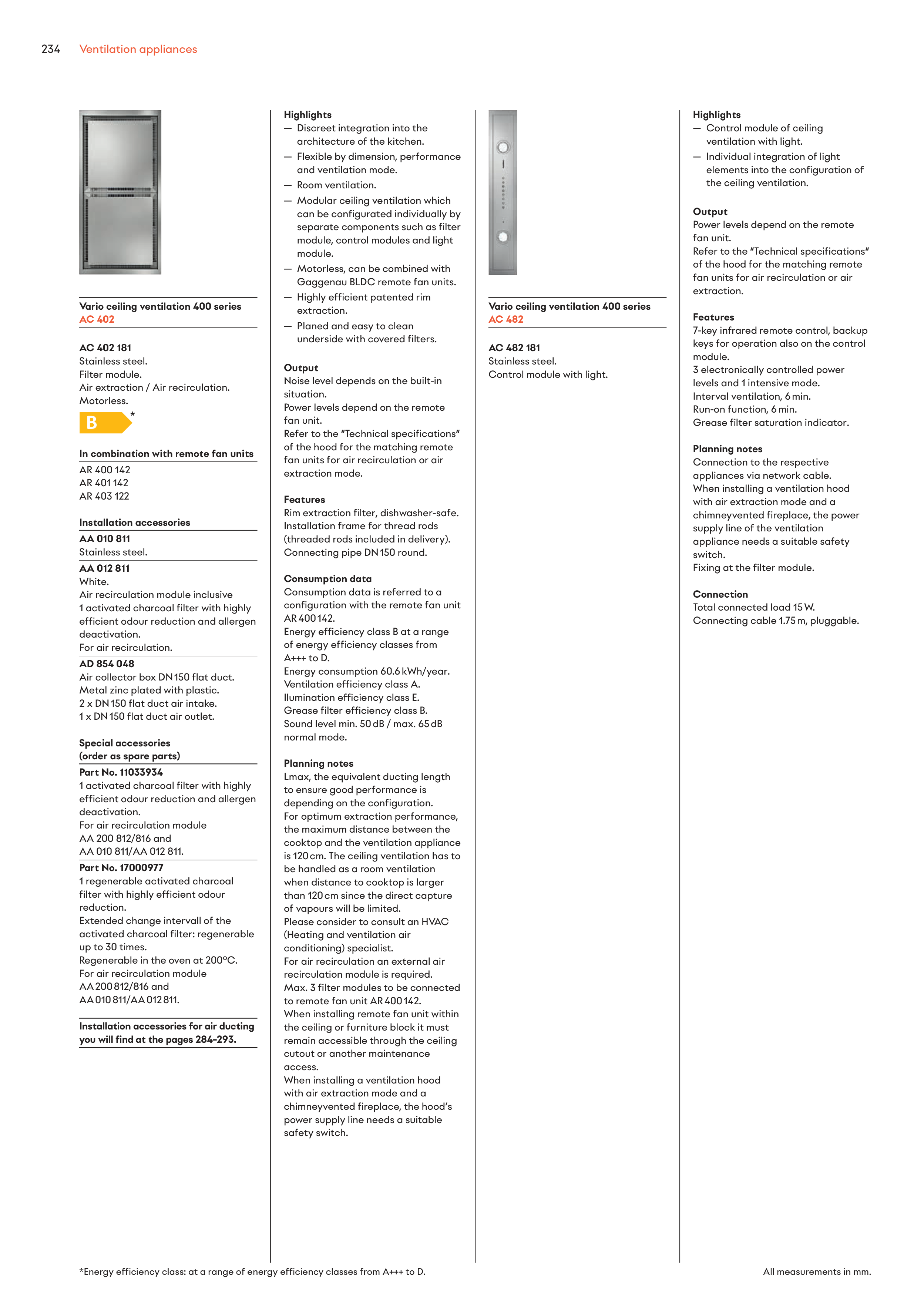

*Energy efficiency class: at a range of energy efficiency classes from A+++ to D.
All measurements in mm.
Vario ceiling ventilation 400 series
A C 402
A C 402 181
Stainless steel.
Filter module.
Air extraction / Air recirculation.
Motorless.
In combination with remote fan units
AR 400 142
AR 401 142
AR 403 122
Installation accessories
A A 010 811
Stainless steel.
A A 012 811
White.
Air recirculation module inclusive
1 activated charcoal filter with highly
efficient odour reduction and allergen
deactivation.
For air recirculation.
A D 854 048
Air collector box DN 150 flat duct.
Metal zinc plated with plastic.
2 x DN 150 flat duct air intake.
1 x DN 150 flat duct air outlet.
Special accessories
(order as spare parts)
Part No. 11033934
1 activated charcoal filter with highly
efficient odour reduction and allergen
deactivation.
For air recirculation module
AA 200 812/816 and
AA 010 811/AA 012 811.
Part No. 17000977
1 regenerable activated charcoal
filter with highly efficient odour
reduction.
Extended change intervall of the
activated charcoal filter: regenerable
up to 30 times.
Regenerable in the oven at 200°C.
For air recirculation module
AA 200 812/816 and
AA 010 811/AA 012 811.
Installation accessories for air ducting
you will find at the pages 284–293.
B
Highlights
— Discreet integration into the
architecture of the kitchen.
— Flexible by dimension, performance
and ventilation mode.
— Room ventilation.
— Modular ceiling ventilation which
can be configurated individually by
separate components such as filter
module, control modules and light
module.
— Motorless, can be combined with
Gaggenau BLDC remote fan units.
— Highly efficient patented rim
extraction.
— Planed and easy to clean
underside with covered filters.
Output
Noise level depends on the built-in
situation.
Power levels depend on the remote
fan unit.
Refer to the "Technical specifications"
of the hood for the matching remote
fan units for air recirculation or air
extraction mode.
Features
Rim extraction filter, dishwasher-safe.
Installation frame for thread rods
(threaded rods included in delivery).
Connecting pipe DN 150 round.
Consumption data
Consumption data is referred to a
configuration with the remote fan unit
AR 400 142.
Energy efficiency class B at a range
of energy efficiency classes from
A+++ to D.
Energy consumption 60.6 kWh/year.
Ventilation efficiency class A.
Ilumination efficiency class E.
Grease filter efficiency class B.
Sound level min. 50 dB / max. 65 dB
normal mode.
Planning notes
Lmax, the equivalent ducting length
to ensure good performance is
depending on the configuration.
For optimum extraction performance,
the maximum distance between the
cooktop and the ventilation appliance
is 120 cm. The ceiling ventilation has to
be handled as a room ventilation
when distance to cooktop is larger
than 120 cm since the direct capture
of vapours will be limited.
Please consider to consult an HVAC
(Heating and ventilation air
conditioning) specialist.
For air recirculation an external air
recirculation module is required.
Max. 3 filter modules to be connected
to remote fan unit AR 400 142.
When installing remote fan unit within
the ceiling or furniture block it must
remain accessible through the ceiling
cutout or another maintenance
access.
When installing a ventilation hood
with air extraction mode and a
chimneyvented fireplace, the hood’s
power supply line needs a suitable
safety switch.
Vario ceiling ventilation 400 series
A C 482
A C 482 181
Stainless steel.
Control module with light.
Highlights
— Control module of ceiling
ventilation with light.
— Individual integration of light
elements into the configuration of
the ceiling ventilation.
Output
Power levels depend on the remote
fan unit.
Refer to the "Technical specifications"
of the hood for the matching remote
fan units for air recirculation or air
extraction.
Features
7-key infrared remote control, backup
keys for operation also on the control
module.
3 electronically controlled power
levels and 1 intensive mode.
Interval ventilation, 6 min.
Run-on function, 6 min.
Grease filter saturation indicator.
Planning notes
Connection to the respective
appliances via network cable.
When installing a ventilation hood
with air extraction mode and a
chimneyvented fireplace, the power
supply line of the ventilation
appliance needs a suitable safety
switch.
Fixing at the filter module.
Connection
Total connected load 15 W.
Connecting cable 1.75 m, pluggable.
Ventilation appliances
234
