All measurements in mm.

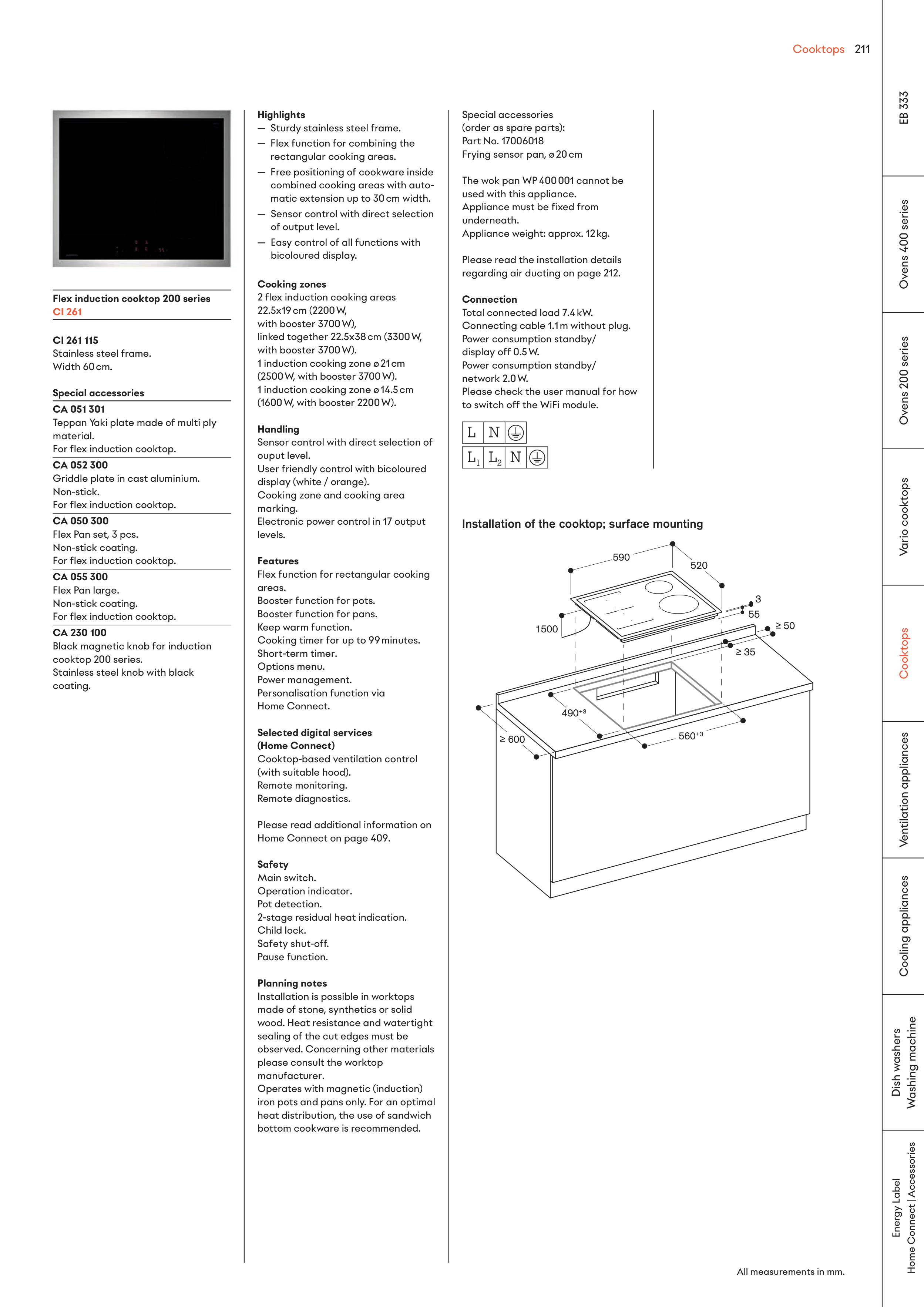

Flex induction cooktop 200 series
C I 261
C I 261 115
Stainless steel frame.
Width 60 cm.
Special accessories
C A 051 301
Teppan Yaki plate made of multi ply
material.
For flex induction cooktop.
C A 052 300
Griddle plate in cast aluminium.
Non-stick.
For flex induction cooktop.
C A 050 300
Flex Pan set, 3 pcs.
Non-stick coating.
For flex induction cooktop.
C A 055 300
Flex Pan large.
Non-stick coating.
For flex induction cooktop.
C A 230 100
Black magnetic knob for induction
cooktop 200 series.
Stainless steel knob with black
coating.
Highlights
— Sturdy stainless steel frame.
— Flex function for combining the
rectangular cooking areas.
— Free positioning of cookware inside
combined cooking areas with auto-
matic extension up to 30 cm width.
— Sensor control with direct selection
of output level.
— Easy control of all functions with
bicoloured display.
Cooking zones
2 flex induction cooking areas
22.5x19 cm (2200 W,
with booster 3700 W),
linked together 22.5x38 cm (3300 W,
with booster 3700 W).
1 induction cooking zone ø 21 cm
(2500 W, with booster 3700 W).
1 induction cooking zone ø 14.5 cm
(1600 W, with booster 2200 W).
Handling
Sensor control with direct selection of
ouput level.
User friendly control with bicoloured
display (white / orange).
Cooking zone and cooking area
marking.
Electronic power control in 17 output
levels.
Features
Flex function for rectangular cooking
areas.
Booster function for pots.
Booster function for pans.
Keep warm function.
Cooking timer for up to 99 minutes.
Short-term timer.
Options menu.
Power management.
Personalisation function via
Home Connect.
Selected digital services
(Home Connect)
Cooktop-based ventilation control
(with suitable hood).
Remote monitoring.
Remote diagnostics.
Please read additional information on
Home Connect on page 409.
Safety
Main switch.
Operation indicator.
Pot detection.
2-stage residual heat indication.
Child lock.
Safety shut-off.
Pause function.
Planning notes
Installation is possible in worktops
made of stone, synthetics or solid
wood. Heat resistance and watertight
sealing of the cut edges must be
observed. Concerning other materials
please consult the worktop
manufacturer.
Operates with magnetic (induction)
iron pots and pans only. For an optimal
heat distribution, the use of sandwich
bottom cookware is recommended.
Special accessories
(order as spare parts):
Part No. 17006018
Frying sensor pan, ø 20 cm
The wok pan WP 400 001 cannot be
used with this appliance.
Appliance must be fixed from
underneath.
Appliance weight: approx. 12 kg.
Please read the installation details
regarding air ducting on page 212.
Connection
Total connected load 7.4 kW.
Connecting cable 1.1 m without plug.
Power consumption standby/
display off 0.5 W.
Power consumption standby/
network 2.0 W.
Please check the user manual for how
to switch off the WiFi module.
Measurements in mm
490+3
520
590
1500
≥ 600
≥ 35
≥ 50
560+3
55
3
Installation of the cooktop; surface mounting
