All measurements in mm.
A:
R 3
Please check the installation manual in case the worktop depth
is below 600 mm.
measurements in mm
≥ 50
≥ 60
≥ 35
1500
≥ 600 (A)
490+2
520
804
780+2
55
3
90°

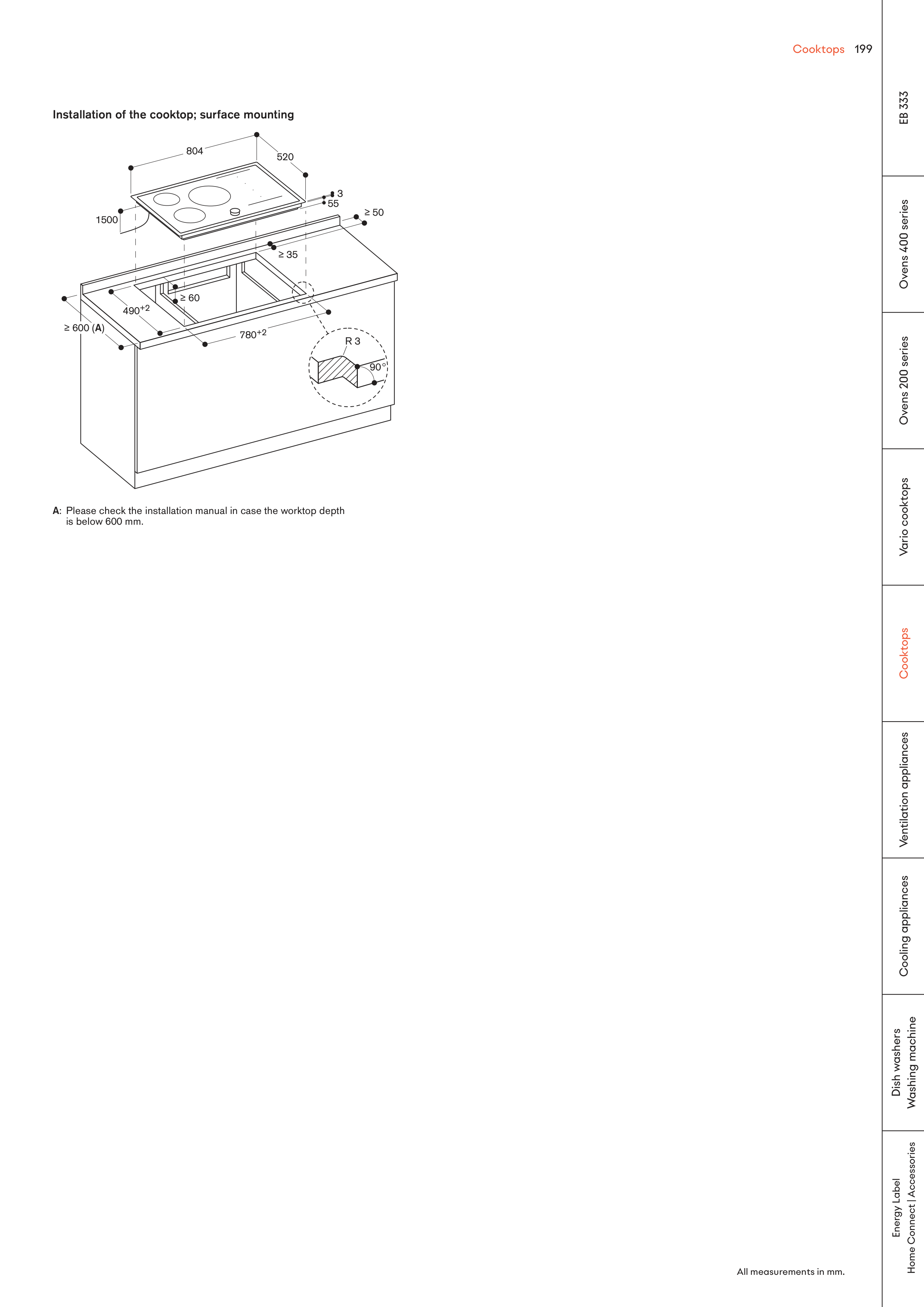

Installation of the cooktop; surface mounting
