All measurements in mm.
Longitudinal section
A: 6.5+0.5
B: 2.5
C: Fill with silicone
measurements in mm
(A)
780+2
793
798±1
(B)
(B)
9
9
(C)
A: 6.5+0.5
B:
R 3
R 5
Please check the installation manual in case the worktop depth
is below 600 mm.
measurements in mm
≥ 50
≥ 35
1500
≥ 600 (B)
513
56
793
798±1
490+2
518±1
780+2
≥ 60
(A)
90°

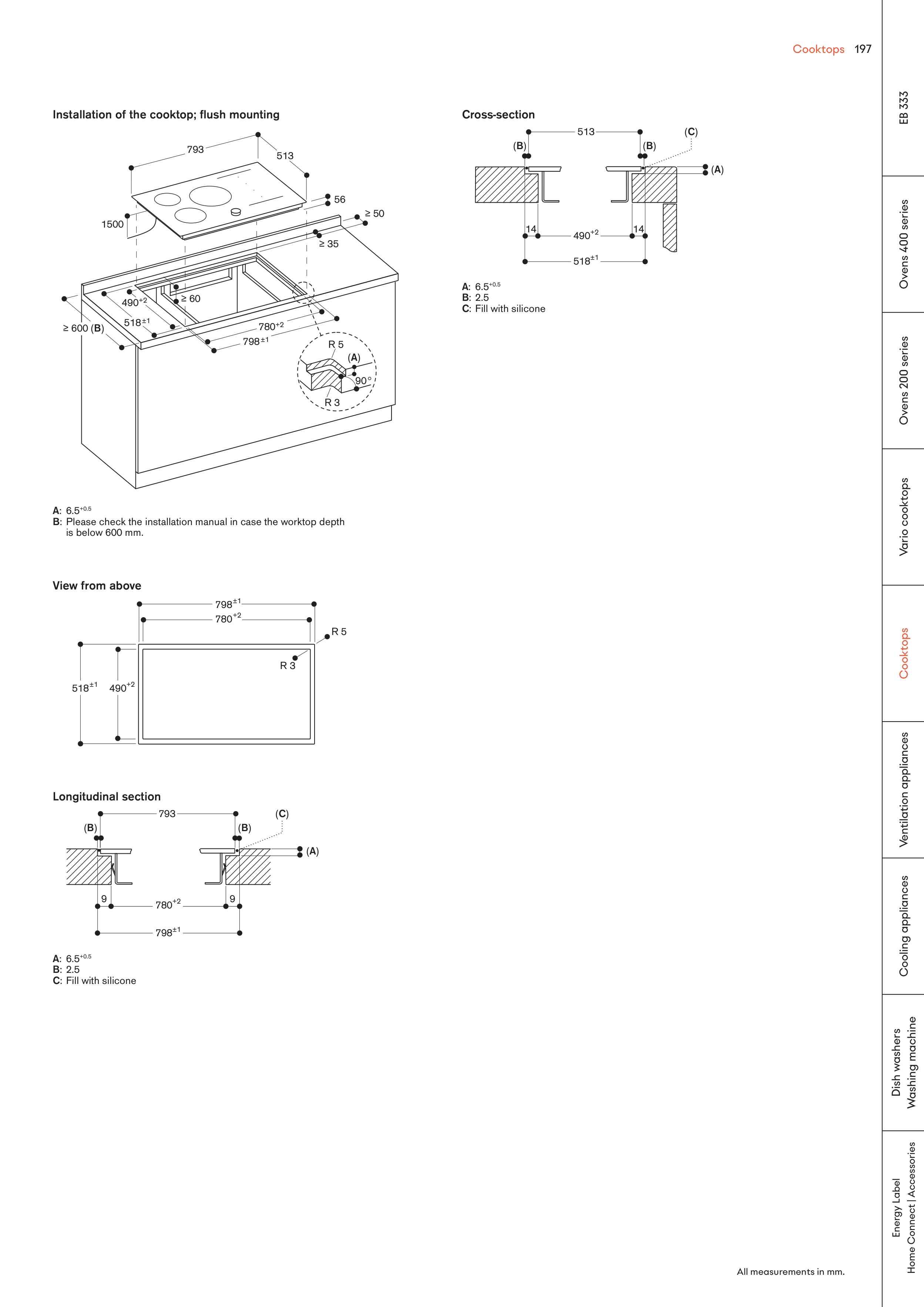

Installation of the cooktop; flush mounting
View from above
measurements in mm
518±1
490+2
798±1
780+2
R 5
R 3
Cross-section
A: 6.5+0.5
B: 2.5
C: Fill with silicone
measurements in mm
490+2
518±1
14
14
513
(C)
(A)
(B)
(B)
