All measurements in mm.
Measurements in mm
521
805
539
95
470
75 227
≥ 50
≥ 600
> 35
≥ 600
≥ 80
492±1
524+1
784±1
808+1
90
330
90
ø 50
ø 60

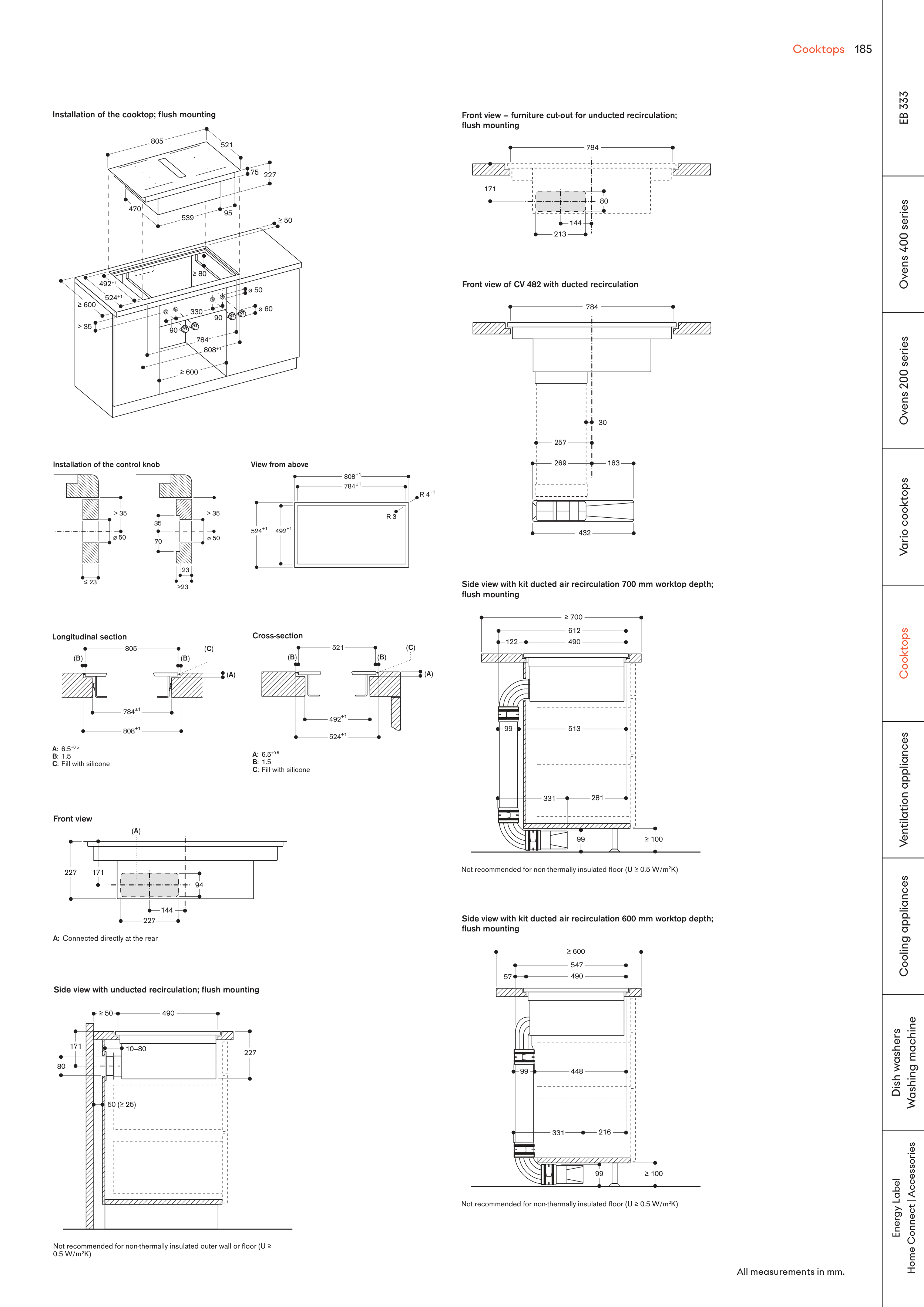

Installation of the cooktop; flush mounting
View from above
measurements in mm
524+1
492±1
808+1
784±1
R 4+1
R 3
Cross-section
A: 6.5+0.5
B: 1.5
C: Fill with silicone
measurements in mm
492±1
524+1
521
(C)
(A)
(B)
(B)
Longitudinal section
A: 6.5+0.5
B: 1.5
C: Fill with silicone
measurements in mm
(C)
(B)
(B)
(A)
784±1
805
808+1
A: Connected directly at the rear
measurements in mm
Front view
(A)
227
171
227
144
94
Front view of CV 482 with ducted recirculation
Measurements in mm
784
432
257
30
269
163
Front view – furniture cut-out for unducted recirculation;
flush mounting
Measurements in mm
171
213
144
80
784
measurements in mm
Installation of the control knob
23
≤ 23
>23
> 35
> 35
70
35
ø 50
ø 50
Not recommended for non-thermally insulated outer wall or floor (U ≥
0.5 W/m2K)
Measurements in mm
Side view with unducted recirculation; flush mounting
10–80
171
≥ 50
490
227
80
50 (≥ 25)
Not recommended for non-thermally insulated floor (U ≥ 0.5 W/m2K)
Measurements in mm
Side view with kit ducted air recirculation 700 mm worktop depth;
flush mounting
≥ 100
99
331
281
490
122
612
≥ 700
513
99
Not recommended for non-thermally insulated floor (U ≥ 0.5 W/m2K)
Measurements in mm
Side view with kit ducted air recirculation 600 mm worktop depth;
flush mounting
331
216
490
57
547
≥ 600
448
99
≥ 100
