All measurements in mm.
A: 6.5+0.5
+1
R 5
R 3
measurements in mm
1500
≥ 50
≥ 35
≥ 80
518±1
513
793
798±1
780+2
490+2
76
(A)
90°

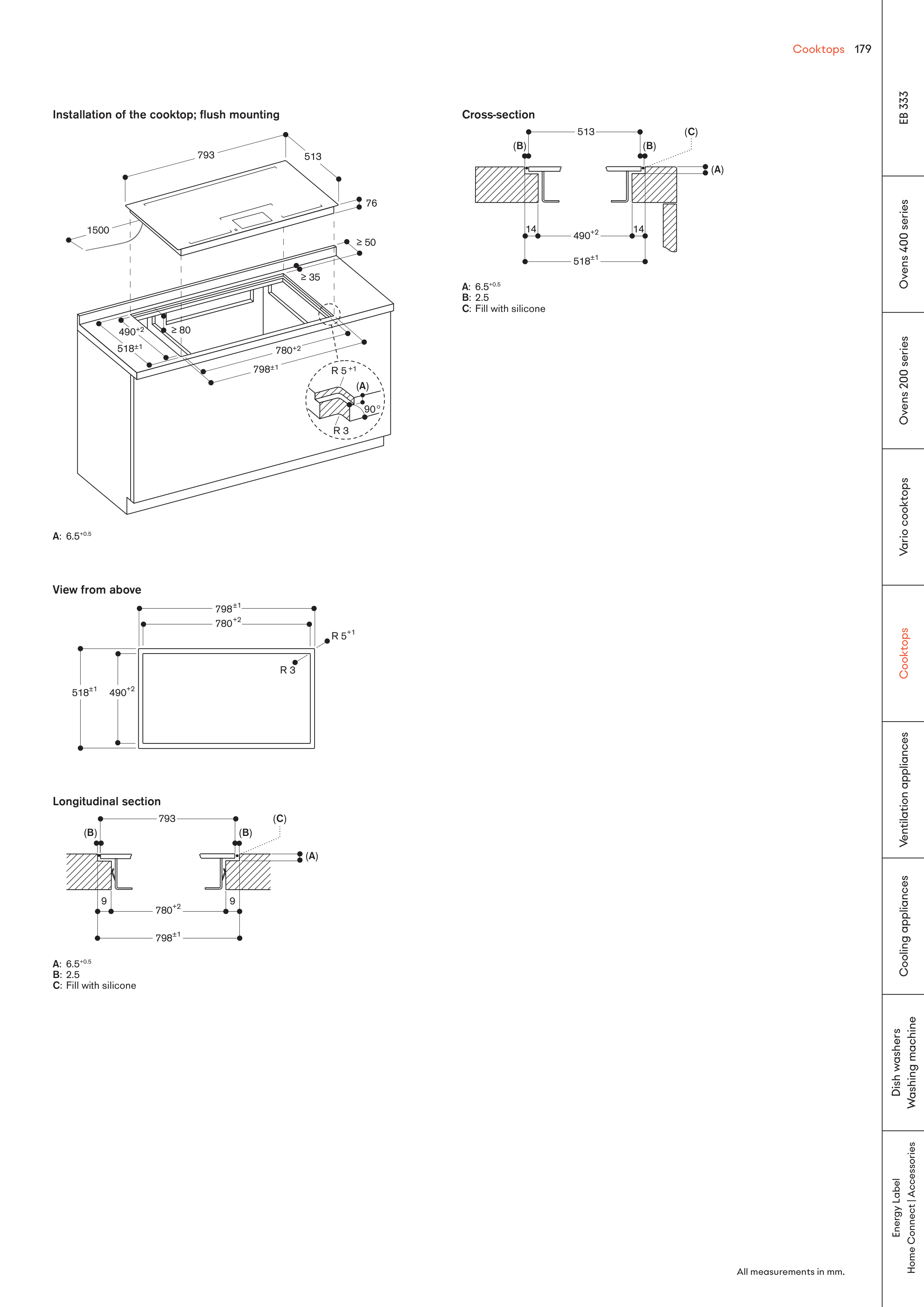

Installation of the cooktop; flush mounting
View from above
measurements in mm
518±1
490+2
+1
798±1
780+2
R 5
R 3
Cross-section
A: 6.5+0.5
B: 2.5
C: Fill with silicone
measurements in mm
490+2
518±1
14
14
513
(C)
(A)
(B)
(B)
Longitudinal section
A: 6.5+0.5
B: 2.5
C: Fill with silicone
measurements in mm
(C)
(B)
(B)
(A)
780+2
793
9
9
798±1
