At the sides
In cases where kitchen furniture door
thicknesses are greater or where
sidewalls protrude up to 34 mm from
front of the edge of the furniture
cavity, the minimum distance on the
hinge side is sufficient for the air
supply and a door opening angle
of 120°. Above that, a distance of
10 mm or even more is required.
The handle side may, if required, be
covered by a side panel provided that
the minimum distance is maintained.
All measurements in mm.

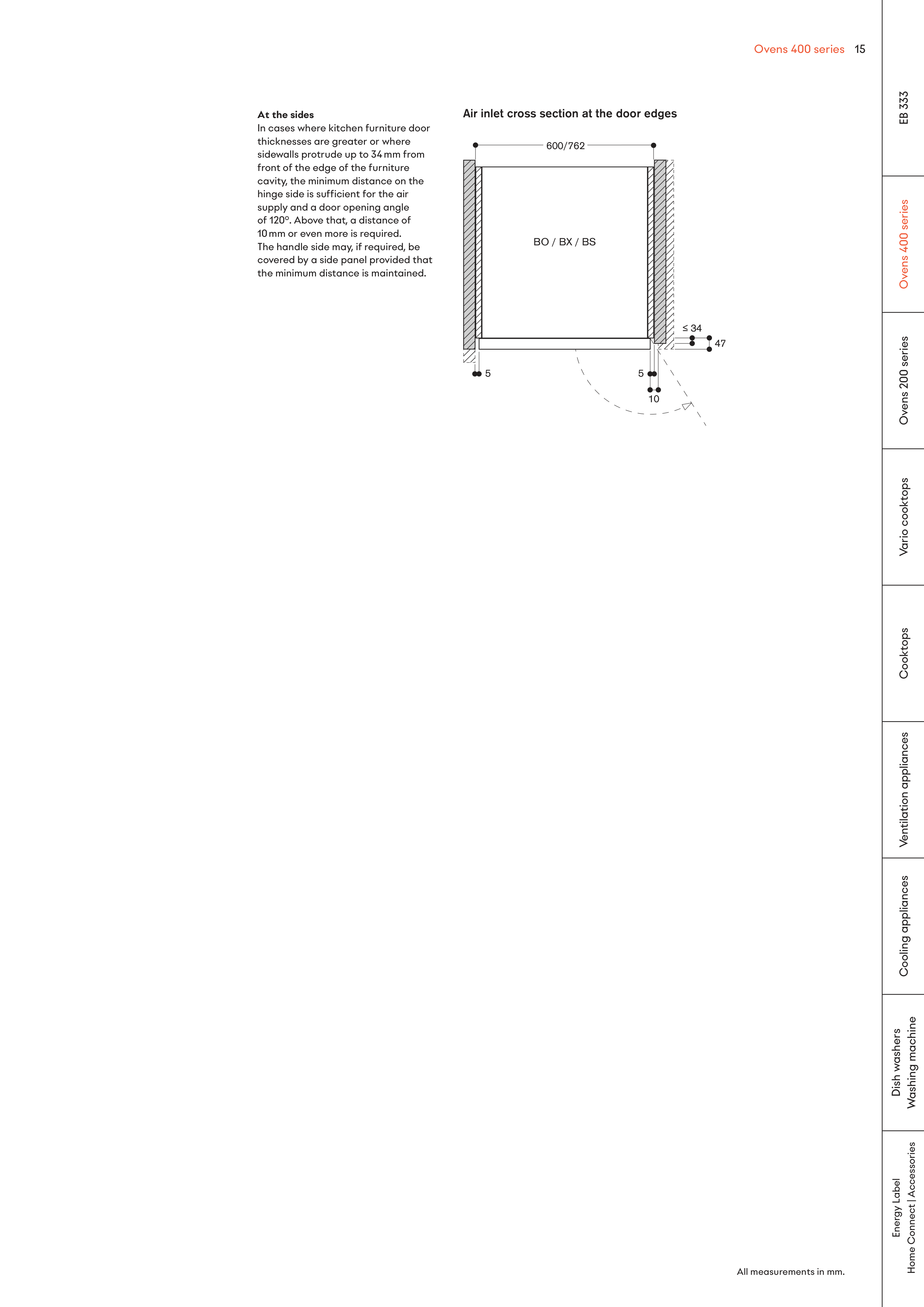

Air inlet cross section at the door edges
Measurements in mm
5
5
47
≤ 34
600/762
BO / BX / BS
10
