All measurements in mm.

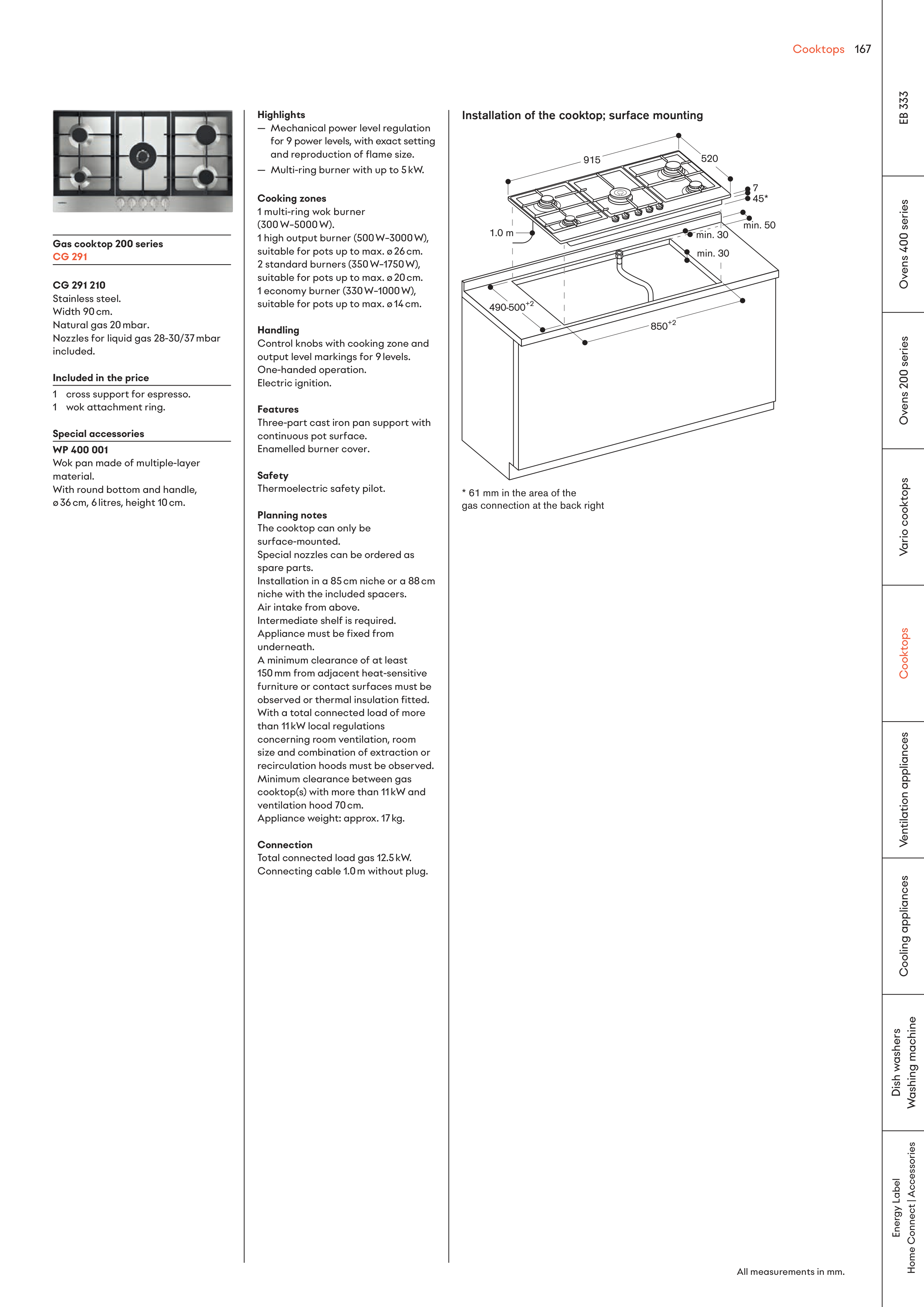

Gas cooktop 200 series
C G 291
C G 291 210
Stainless steel.
Width 90 cm.
Natural gas 20 mbar.
Nozzles for liquid gas 28-30/37 mbar
included.
Included in the price
1 cross support for espresso.
1 wok attachment ring.
Special accessories
W P 400 001
Wok pan made of multiple-layer
material.
With round bottom and handle,
ø 36 cm, 6 litres, height 10 cm.
Highlights
— Mechanical power level regulation
for 9 power levels, with exact setting
and reproduction of flame size.
— Multi-ring burner with up to 5 kW.
Cooking zones
1 multi-ring wok burner
(300 W–5000 W).
1 high output burner (500 W–3000 W),
suitable for pots up to max. ø 26 cm.
2 standard burners (350 W–1750 W),
suitable for pots up to max. ø 20 cm.
1 economy burner (330 W–1000 W),
suitable for pots up to max. ø 14 cm.
Handling
Control knobs with cooking zone and
output level markings for 9 levels.
One-handed operation.
Electric ignition.
Features
Three-part cast iron pan support with
continuous pot surface.
Enamelled burner cover.
Safety
Thermoelectric safety pilot.
Planning notes
The cooktop can only be
surface-mounted.
Special nozzles can be ordered as
spare parts.
Installation in a 85 cm niche or a 88 cm
niche with the included spacers.
Air intake from above.
Intermediate shelf is required.
Appliance must be fixed from
underneath.
A minimum clearance of at least
150 mm from adjacent heat-sensitive
furniture or contact surfaces must be
observed or thermal insulation fitted.
With a total connected load of more
than 11 kW local regulations
concerning room ventilation, room
size and combination of extraction or
recirculation hoods must be observed.
Minimum clearance between gas
cooktop(s) with more than 11 kW and
ventilation hood 70 cm.
Appliance weight: approx. 17 kg.
Connection
Total connected load gas 12.5 kW.
Connecting cable 1.0 m without plug.
Installation of the cooktop; surface mounting
