All measurements in mm.

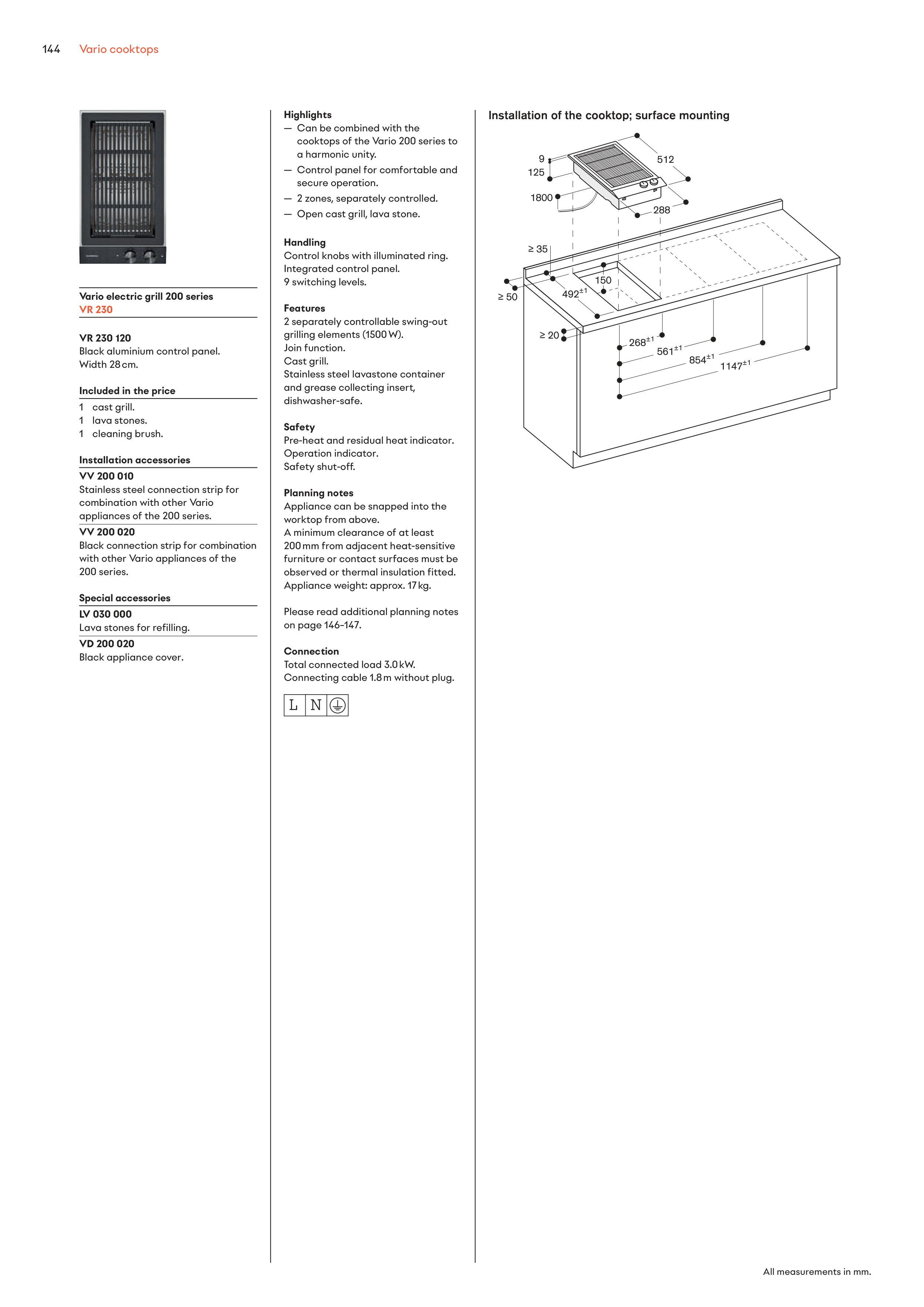

Vario electric grill 200 series
V R 230
V R 230 120
Black aluminium control panel.
Width 28 cm.
Included in the price
1 cast grill.
1 lava stones.
1 cleaning brush.
Installation accessories
V V 200 010
Stainless steel connection strip for
combination with other Vario
appliances of the 200 series.
V V 200 020
Black connection strip for combination
with other Vario appliances of the
200 series.
Special accessories
L V 030 000
Lava stones for refilling.
V D 200 020
Black appliance cover.
Highlights
— Can be combined with the
cooktops of the Vario 200 series to
a harmonic unity.
— Control panel for comfortable and
secure operation.
— 2 zones, separately controlled.
— Open cast grill, lava stone.
Handling
Control knobs with illuminated ring.
Integrated control panel.
9 switching levels.
Features
2 separately controllable swing-out
grilling elements (1500 W).
Join function.
Cast grill.
Stainless steel lavastone container
and grease collecting insert,
dishwasher-safe.
Safety
Pre-heat and residual heat indicator.
Operation indicator.
Safety shut-off.
Planning notes
Appliance can be snapped into the
worktop from above.
A minimum clearance of at least
200 mm from adjacent heat-sensitive
furniture or contact surfaces must be
observed or thermal insulation fitted.
Appliance weight: approx. 17 kg.
Please read additional planning notes
on page 146–147.
Connection
Total connected load 3.0 kW.
Connecting cable 1.8 m without plug.
Installation of the cooktop; surface mounting
Vario cooktops
144
