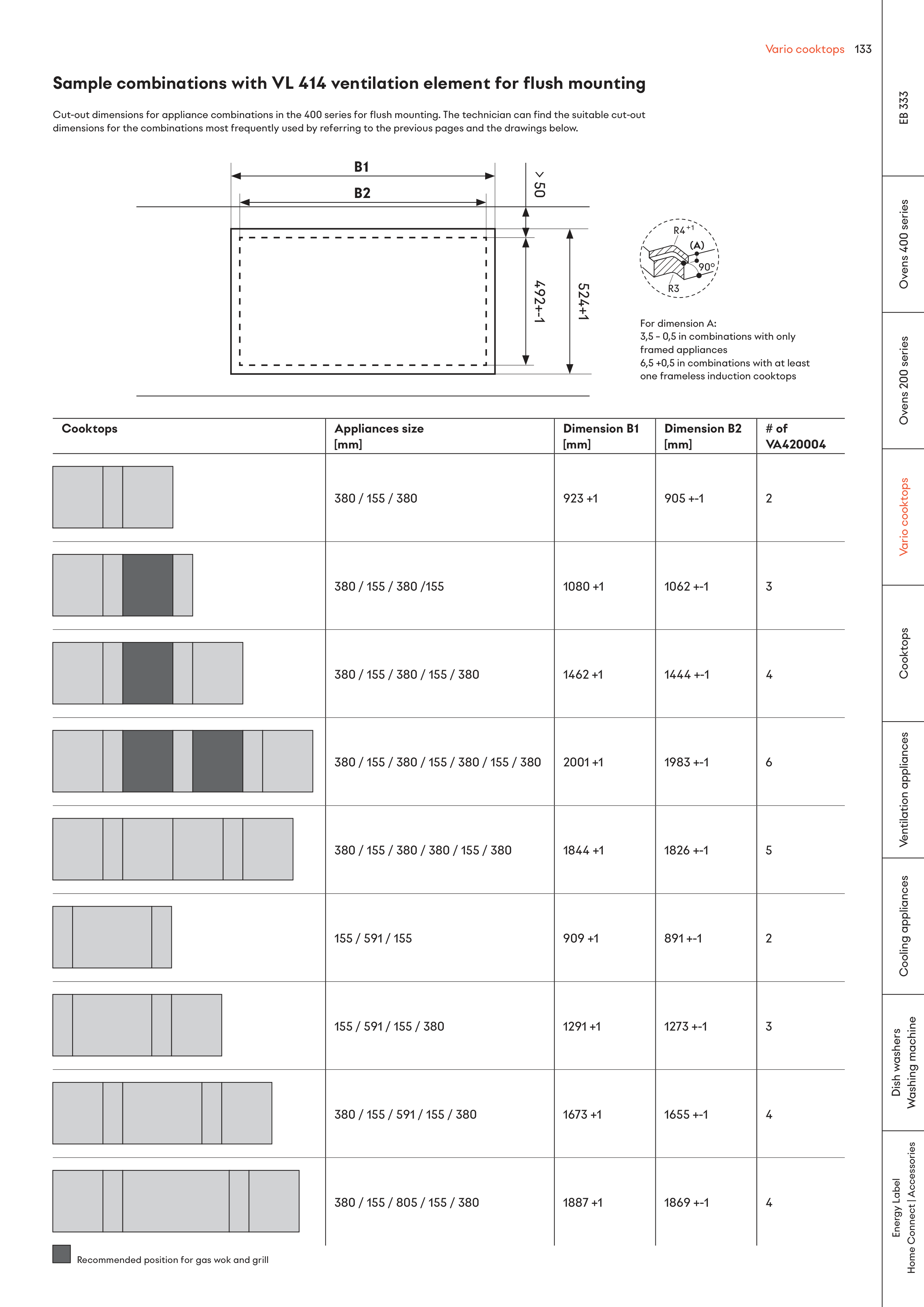

Sample combinations with VL 414 ventilation element for flush mounting
Cut-out dimensions for appliance combinations in the 400 series for flush mounting. The technician can find the suitable cut-out
dimensions for the combinations most frequently used by referring to the previous pages and the drawings below.
Cooktops
Appliances size
[mm]
Dimension B1
[mm]
Dimension B2
[mm]
# of
VA420004
380 / 155 / 380
923 +1
905 +-1
2
380 / 155 / 380 /155
1080 +1
1062 +-1
3
380 / 155 / 380 / 155 / 380
1462 +1
1444 +-1
4
380 / 155 / 380 / 155 / 380 / 155 / 380
2001 +1
1983 +-1
6
380 / 155 / 380 / 380 / 155 / 380
1844 +1
1826 +-1
5
155 / 591 / 155
909 +1
891 +-1
2
155 / 591 / 155 / 380
1291 +1
1273 +-1
3
380 / 155 / 591 / 155 / 380
1673 +1
1655 +-1
4
380 / 155 / 805 / 155 / 380
1887 +1
1869 +-1
4
492+-1
524+1
B1
B2
> 50
For dimension A:
3,5 – 0,5 in combinations with only
framed appliances
6,5 +0,5 in combinations with at least
one frameless induction cooktops
R4
Recommended position for gas wok and grill
R3
(A)
90°
