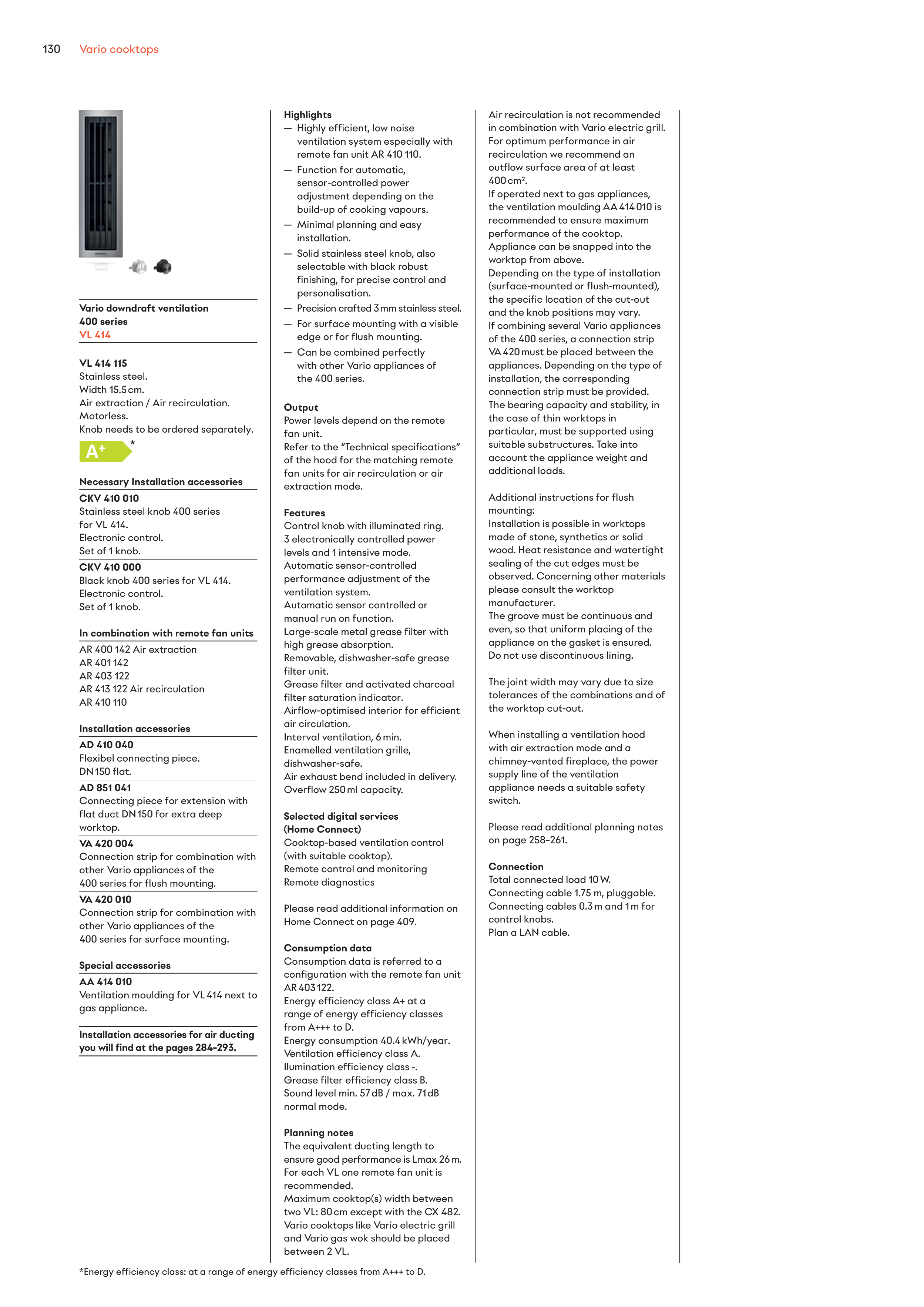

Vario downdraft ventilation
400 series
V L 414
V L 414 115
Stainless steel.
Width 15.5 cm.
Air extraction / Air recirculation.
Motorless.
Knob needs to be ordered separately.
Necessary Installation accessories
CKV 410 010
Stainless steel knob 400 series
for VL 414.
Electronic control.
Set of 1 knob.
CKV 410 000
Black knob 400 series for VL 414.
Electronic control.
Set of 1 knob.
In combination with remote fan units
AR 400 142 Air extraction
AR 401 142
AR 403 122
AR 413 122 Air recirculation
AR 410 110
Installation accessories
A D 410 040
Flexibel connecting piece.
DN 150 flat.
A D 851 041
Connecting piece for extension with
flat duct DN 150 for extra deep
worktop.
V A 420 004
Connection strip for combination with
other Vario appliances of the
400 series for flush mounting.
V A 420 010
Connection strip for combination with
other Vario appliances of the
400 series for surface mounting.
Special accessories
A A 414 010
Ventilation moulding for VL 414 next to
gas appliance.
Installation accessories for air ducting
you will find at the pages 284–293.
A+
Highlights
— Highly efficient, low noise
ventilation system especially with
remote fan unit AR 410 110.
— Function for automatic,
sensor-controlled power
adjustment depending on the
build-up of cooking vapours.
— Minimal planning and easy
installation.
— Solid stainless steel knob, also
selectable with black robust
finishing, for precise control and
personalisation.
— Precision crafted 3 mm stainless steel.
— For surface mounting with a visible
edge or for flush mounting.
— Can be combined perfectly
with other Vario appliances of
the 400 series.
Output
Power levels depend on the remote
fan unit.
Refer to the “Technical specifications”
of the hood for the matching remote
fan units for air recirculation or air
extraction mode.
Features
Control knob with illuminated ring.
3 electronically controlled power
levels and 1 intensive mode.
Automatic sensor-controlled
performance adjustment of the
ventilation system.
Automatic sensor controlled or
manual run on function.
Large-scale metal grease filter with
high grease absorption.
Removable, dishwasher-safe grease
filter unit.
Grease filter and activated charcoal
filter saturation indicator.
Airflow-optimised interior for efficient
air circulation.
Interval ventilation, 6 min.
Enamelled ventilation grille,
dishwasher-safe.
Air exhaust bend included in delivery.
Overflow 250 ml capacity.
Selected digital services
(Home Connect)
Cooktop-based ventilation control
(with suitable cooktop).
Remote control and monitoring
Remote diagnostics
Please read additional information on
Home Connect on page 409.
Consumption data
Consumption data is referred to a
configuration with the remote fan unit
AR 403 122.
Energy efficiency class A+ at a
range of energy efficiency classes
from A+++ to D.
Energy consumption 40.4 kWh/year.
Ventilation efficiency class A.
Ilumination efficiency class -.
Grease filter efficiency class B.
Sound level min. 57 dB / max. 71 dB
normal mode.
Planning notes
The equivalent ducting length to
ensure good performance is Lmax 26 m.
For each VL one remote fan unit is
recommended.
Maximum cooktop(s) width between
two VL: 80 cm except with the CX 482.
Vario cooktops like Vario electric grill
and Vario gas wok should be placed
between 2 VL.
Air recirculation is not recommended
in combination with Vario electric grill.
For optimum performance in air
recirculation we recommend an
outflow surface area of at least
400 cm².
If operated next to gas appliances,
the ventilation moulding AA 414 010 is
recommended to ensure maximum
performance of the cooktop.
Appliance can be snapped into the
worktop from above.
Depending on the type of installation
(surface-mounted or flush-mounted),
the specific location of the cut-out
and the knob positions may vary.
If combining several Vario appliances
of the 400 series, a connection strip
VA 420 must be placed between the
appliances. Depending on the type of
installation, the corresponding
connection strip must be provided.
The bearing capacity and stability, in
the case of thin worktops in
particular, must be supported using
suitable substructures. Take into
account the appliance weight and
additional loads.
Additional instructions for flush
mounting:
Installation is possible in worktops
made of stone, synthetics or solid
wood. Heat resistance and watertight
sealing of the cut edges must be
observed. Concerning other materials
please consult the worktop
manufacturer.
The groove must be continuous and
even, so that uniform placing of the
appliance on the gasket is ensured.
Do not use discontinuous lining.
The joint width may vary due to size
tolerances of the combinations and of
the worktop cut-out.
When installing a ventilation hood
with air extraction mode and a
chimney-vented fireplace, the power
supply line of the ventilation
appliance needs a suitable safety
switch.
Please read additional planning notes
on page 258–261.
Connection
Total connected load 10 W.
Connecting cable 1.75 m, pluggable.
Connecting cables 0.3 m and 1 m for
control knobs.
Plan a LAN cable.
