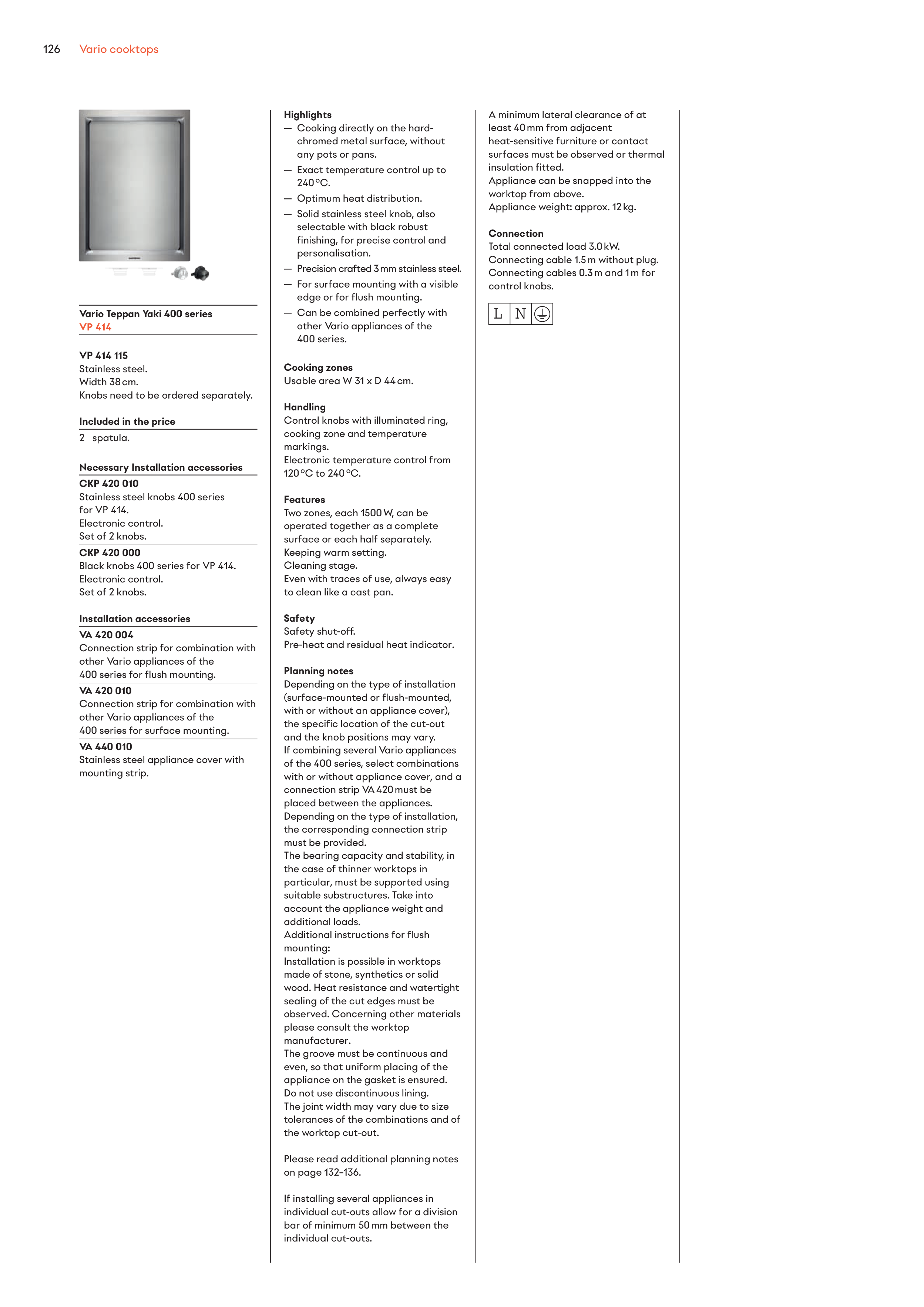

Vario Teppan Yaki 400 series
V P 414
V P 414 115
Stainless steel.
Width 38 cm.
Knobs need to be ordered separately.
Included in the price
2 spatula.
Necessary Installation accessories
CK P 420 010
Stainless steel knobs 400 series
for VP 414.
Electronic control.
Set of 2 knobs.
CK P 420 000
Black knobs 400 series for VP 414.
Electronic control.
Set of 2 knobs.
Installation accessories
V A 420 004
Connection strip for combination with
other Vario appliances of the
400 series for flush mounting.
V A 420 010
Connection strip for combination with
other Vario appliances of the
400 series for surface mounting.
V A 440 010
Stainless steel appliance cover with
mounting strip.
Highlights
— Cooking directly on the hard-
chromed metal surface, without
any pots or pans.
— Exact temperature control up to
240 °C.
— Optimum heat distribution.
— Solid stainless steel knob, also
selectable with black robust
finishing, for precise control and
personalisation.
— Precision crafted 3 mm stainless steel.
— For surface mounting with a visible
edge or for flush mounting.
— Can be combined perfectly with
other Vario appliances of the
400 series.
Cooking zones
Usable area W 31 x D 44 cm.
Handling
Control knobs with illuminated ring,
cooking zone and temperature
markings.
Electronic temperature control from
120 °C to 240 °C.
Features
Two zones, each 1500 W, can be
operated together as a complete
surface or each half separately.
Keeping warm setting.
Cleaning stage.
Even with traces of use, always easy
to clean like a cast pan.
Safety
Safety shut-off.
Pre-heat and residual heat indicator.
Planning notes
Depending on the type of installation
(surface-mounted or flush-mounted,
with or without an appliance cover),
the specific location of the cut-out
and the knob positions may vary.
If combining several Vario appliances
of the 400 series, select combinations
with or without appliance cover, and a
connection strip VA 420 must be
placed between the appliances.
Depending on the type of installation,
the corresponding connection strip
must be provided.
The bearing capacity and stability, in
the case of thinner worktops in
particular, must be supported using
suitable substructures. Take into
account the appliance weight and
additional loads.
Additional instructions for flush
mounting:
Installation is possible in worktops
made of stone, synthetics or solid
wood. Heat resistance and watertight
sealing of the cut edges must be
observed. Concerning other materials
please consult the worktop
manufacturer.
The groove must be continuous and
even, so that uniform placing of the
appliance on the gasket is ensured.
Do not use discontinuous lining.
The joint width may vary due to size
tolerances of the combinations and of
the worktop cut-out.
Please read additional planning notes
on page 132–136.
If installing several appliances in
individual cut-outs allow for a division
bar of minimum 50 mm between the
individual cut-outs.
A minimum lateral clearance of at
least 40 mm from adjacent
heat-sensitive furniture or contact
surfaces must be observed or thermal
insulation fitted.
Appliance can be snapped into the
worktop from above.
Appliance weight: approx. 12 kg.
Connection
Total connected load 3.0 kW.
Connecting cable 1.5 m without plug.
Connecting cables 0.3 m and 1 m for
control knobs.
