All measurements in mm.
Cross-section
A: 6.5+0.5
B: 1.5
C: Fill with silicone
measurements in mm
492±1
524+1
521
(C)
(A)
(B)
(B)
measurements in mm
Installation of the control knob
23
≤ 23
>23
> 35
> 35
70
35
ø 50
ø 50
View from above
measurements in mm
383+1
360±1
524+1
492±1
R 3
R 4+1
Longitudinal section
A: 6.5+0.5
B: 1.5
C: Fill with silicone
measurements in mm
380
(C)
(B)
(B)
(A)
360±1
383+1
A: 6.5+0.5
dia. 50
dia. 60
measurements in mm
1500
492±1
521
524+1
> 35
≥ 50
380
383+1
360±1
90
57
(A)
90°
R 3
R 4+1

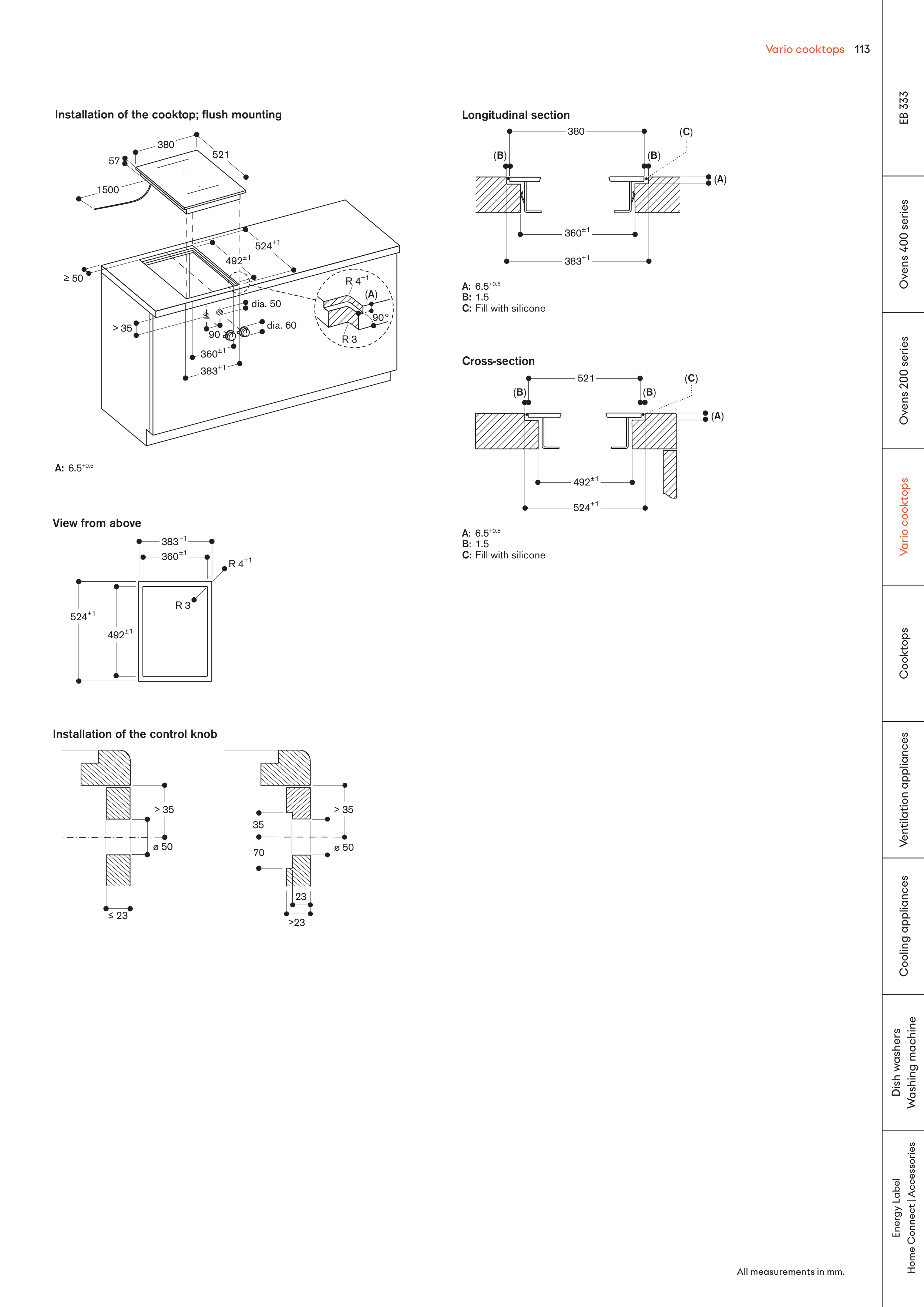

Installation of the cooktop; flush mounting
