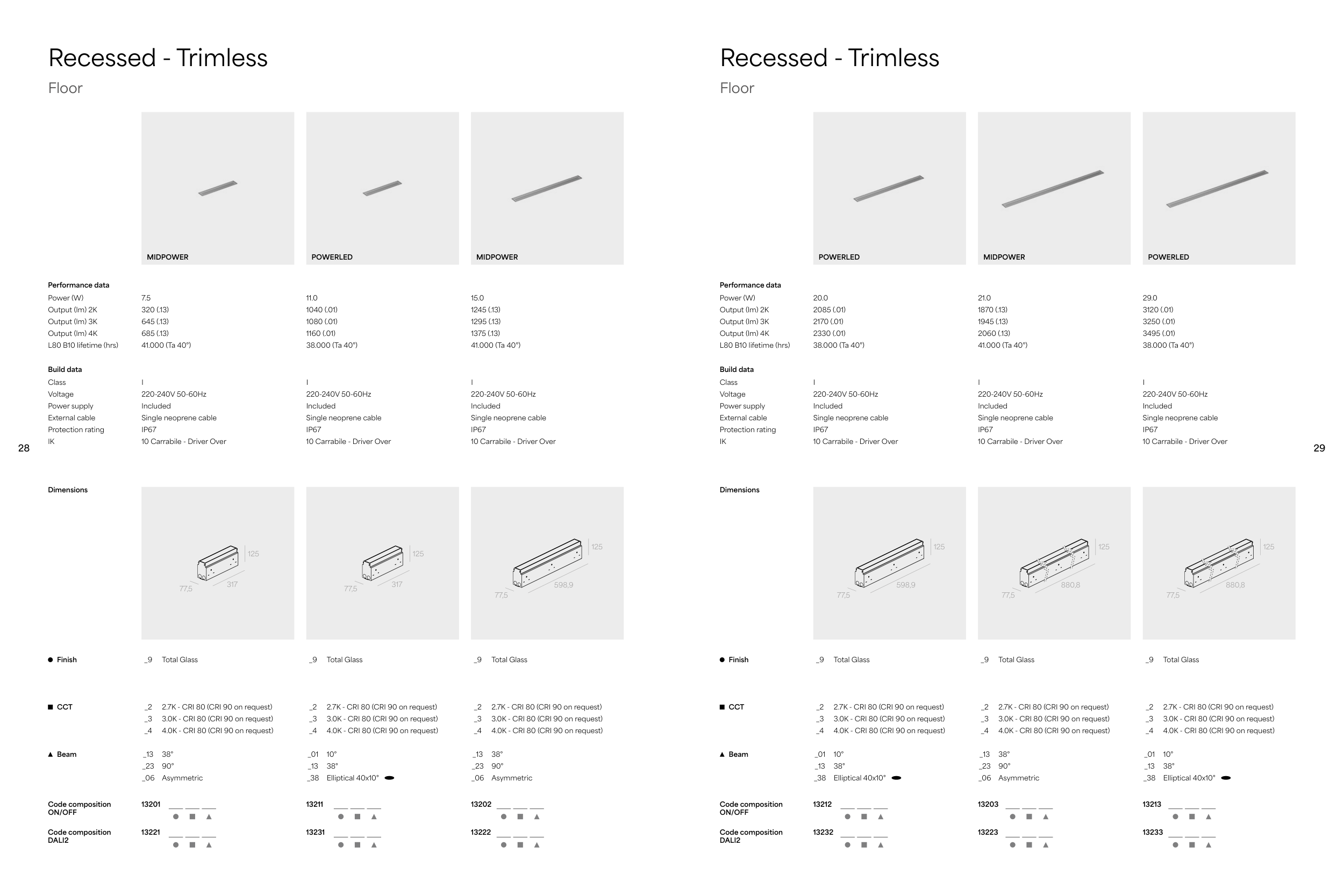

28
29
Recessed - Trimless
Floor
MIDPOWER
MIDPOWER
POWERLED
Finish
_9
Total Glass
_9
Total Glass
_9
Total Glass
CCT
_2
2.7K - CRI 80 (CRI 90 on request)
_2
2.7K - CRI 80 (CRI 90 on request)
_2
2.7K - CRI 80 (CRI 90 on request)
_3
3.0K - CRI 80 (CRI 90 on request)
_3
3.0K - CRI 80 (CRI 90 on request)
_3
3.0K - CRI 80 (CRI 90 on request)
_4
4.0K - CRI 80 (CRI 90 on request)
_4
4.0K - CRI 80 (CRI 90 on request)
_4
4.0K - CRI 80 (CRI 90 on request)
Beam
_13
38°
_01
10°
_13
38°
_23
90°
_13
38°
_23
90°
_06
Asymmetric
_38
Elliptical 40x10°
_06
Asymmetric
Code composition
ON/OFF
13201
13211
13202
Dimensions
Performance data
Power (W)
7.5
11.0
15.0
Output (lm) 2K
320 (.13)
1040 (.01)
1245 (.13)
Output (lm) 3K
645 (.13)
1080 (.01)
1295 (.13)
Output (lm) 4K
685 (.13)
1160 (.01)
1375 (.13)
L80 B10 lifetime (hrs)
41.000 (Ta 40°)
38.000 (Ta 40°)
41.000 (Ta 40°)
Build data
Class
I
I
I
Voltage
220-240V 50-60Hz
220-240V 50-60Hz
220-240V 50-60Hz
Power supply
Included
Included
Included
External cable
Single neoprene cable
Single neoprene cable
Single neoprene cable
Protection rating
IP67
IP67
IP67
IK
10 Carrabile - Driver Over
10 Carrabile - Driver Over
10 Carrabile - Driver Over
Code composition
DALI2
13221
13231
13222
Recessed - Trimless
Floor
POWERLED
POWERLED
MIDPOWER
Finish
_9
Total Glass
_9
Total Glass
_9
Total Glass
CCT
_2
2.7K - CRI 80 (CRI 90 on request)
_2
2.7K - CRI 80 (CRI 90 on request)
_2
2.7K - CRI 80 (CRI 90 on request)
_3
3.0K - CRI 80 (CRI 90 on request)
_3
3.0K - CRI 80 (CRI 90 on request)
_3
3.0K - CRI 80 (CRI 90 on request)
_4
4.0K - CRI 80 (CRI 90 on request)
_4
4.0K - CRI 80 (CRI 90 on request)
_4
4.0K - CRI 80 (CRI 90 on request)
Beam
_01
10°
_13
38°
_01
10°
_13
38°
_23
90°
_13
38°
_38
Elliptical 40x10°
_06
Asymmetric
_38
Elliptical 40x10°
Code composition
ON/OFF
13212
13203
13213
Dimensions
Performance data
Power (W)
20.0
21.0
29.0
Output (lm) 2K
2085 (.01)
1870 (.13)
3120 (.01)
Output (lm) 3K
2170 (.01)
1945 (.13)
3250 (.01)
Output (lm) 4K
2330 (.01)
2060 (.13)
3495 (.01)
L80 B10 lifetime (hrs)
38.000 (Ta 40°)
41.000 (Ta 40°)
38.000 (Ta 40°)
Build data
Class
I
I
I
Voltage
220-240V 50-60Hz
220-240V 50-60Hz
220-240V 50-60Hz
Power supply
Included
Included
Included
External cable
Single neoprene cable
Single neoprene cable
Single neoprene cable
Protection rating
IP67
IP67
IP67
IK
10 Carrabile - Driver Over
10 Carrabile - Driver Over
10 Carrabile - Driver Over
Code composition
DALI2
13232
13223
13233
77,5
317
125
77,5
317
125
77,5
598,9
125
77,5
598,9
125
77,5
880,8
125
77,5
880,8
125
