24
25

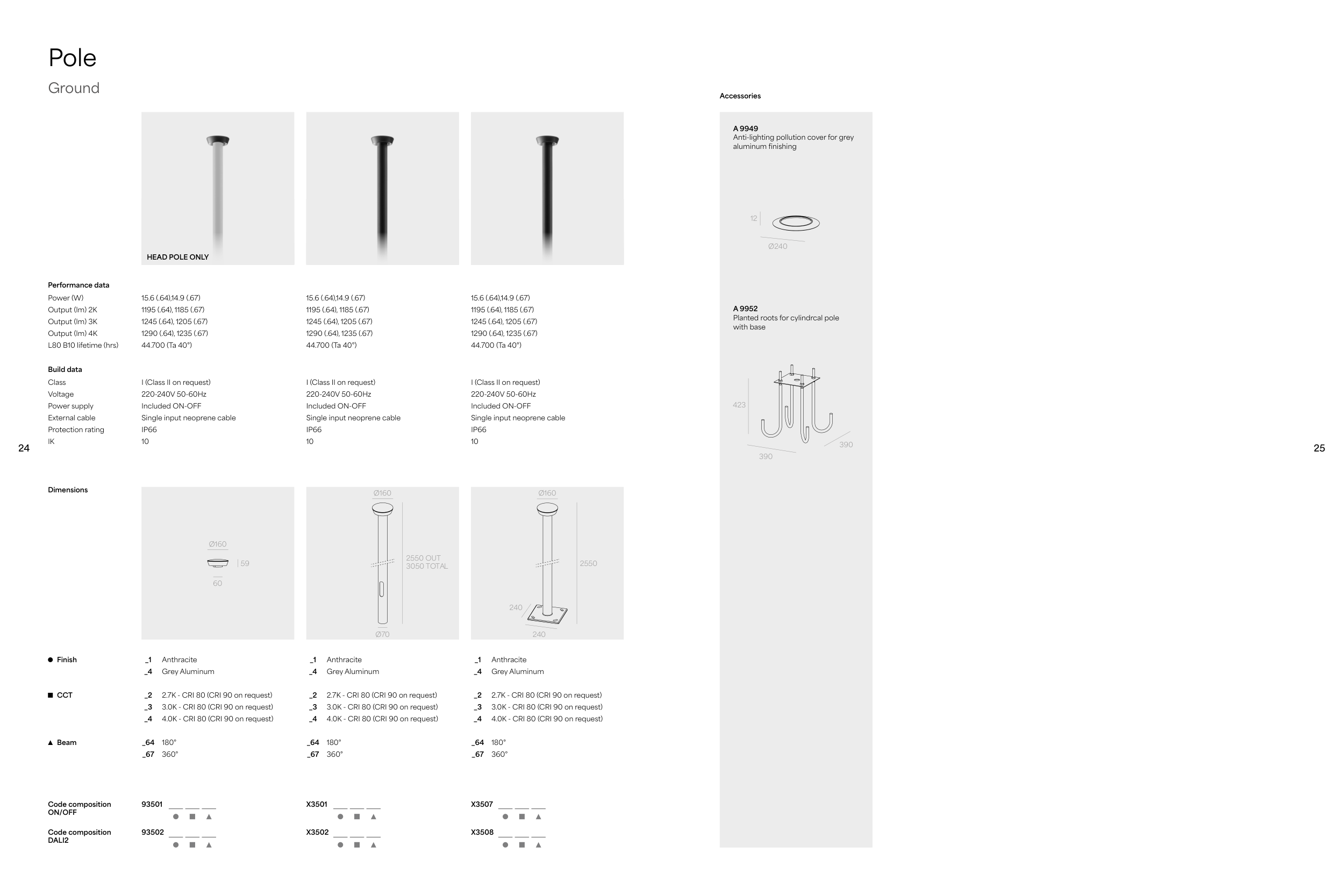

HEAD POLE ONLY
Pole
Ground
Dimensions
Code composition
ON/OFF
93501
X3501
X3507
Code composition
DALI2
93502
X3502
X3508
Finish
_1
Anthracite
_1
Anthracite
_1
Anthracite
_4
Grey Aluminum
_4
Grey Aluminum
_4
Grey Aluminum
CCT
_2
2.7K - CRI 80 (CRI 90 on request)
_2
2.7K - CRI 80 (CRI 90 on request)
_2
2.7K - CRI 80 (CRI 90 on request)
_3
3.0K - CRI 80 (CRI 90 on request)
_3
3.0K - CRI 80 (CRI 90 on request)
_3
3.0K - CRI 80 (CRI 90 on request)
_4
4.0K - CRI 80 (CRI 90 on request)
_4
4.0K - CRI 80 (CRI 90 on request)
_4
4.0K - CRI 80 (CRI 90 on request)
Beam
_64
180°
_64
180°
_64
180°
_67
360°
_67
360°
_67
360°
Performance data
Power (W)
15.6 (.64),14.9 (.67)
15.6 (.64),14.9 (.67)
15.6 (.64),14.9 (.67)
Output (lm) 2K
1195 (.64), 1185 (.67)
1195 (.64), 1185 (.67)
1195 (.64), 1185 (.67)
Output (lm) 3K
1245 (.64), 1205 (.67)
1245 (.64), 1205 (.67)
1245 (.64), 1205 (.67)
Output (lm) 4K
1290 (.64), 1235 (.67)
1290 (.64), 1235 (.67)
1290 (.64), 1235 (.67)
L80 B10 lifetime (hrs)
44.700 (Ta 40°)
44.700 (Ta 40°)
44.700 (Ta 40°)
Build data
Class
I (Class II on request)
I (Class II on request)
I (Class II on request)
Voltage
220-240V 50-60Hz
220-240V 50-60Hz
220-240V 50-60Hz
Power supply
Included ON-OFF
Included ON-OFF
Included ON-OFF
External cable
Single input neoprene cable
Single input neoprene cable
Single input neoprene cable
Protection rating
IP66
IP66
IP66
IK
10
10
10
A 9949
Anti-lighting pollution cover for grey
aluminum finishing
A 9952
Planted roots for cylindrcal pole
with base
Accessories
60
Ø160
59
Ø70
Ø160
2550 OUT
3050 TOTAL
Ø240
12
390
423
390
240
240
Ø160
2550
