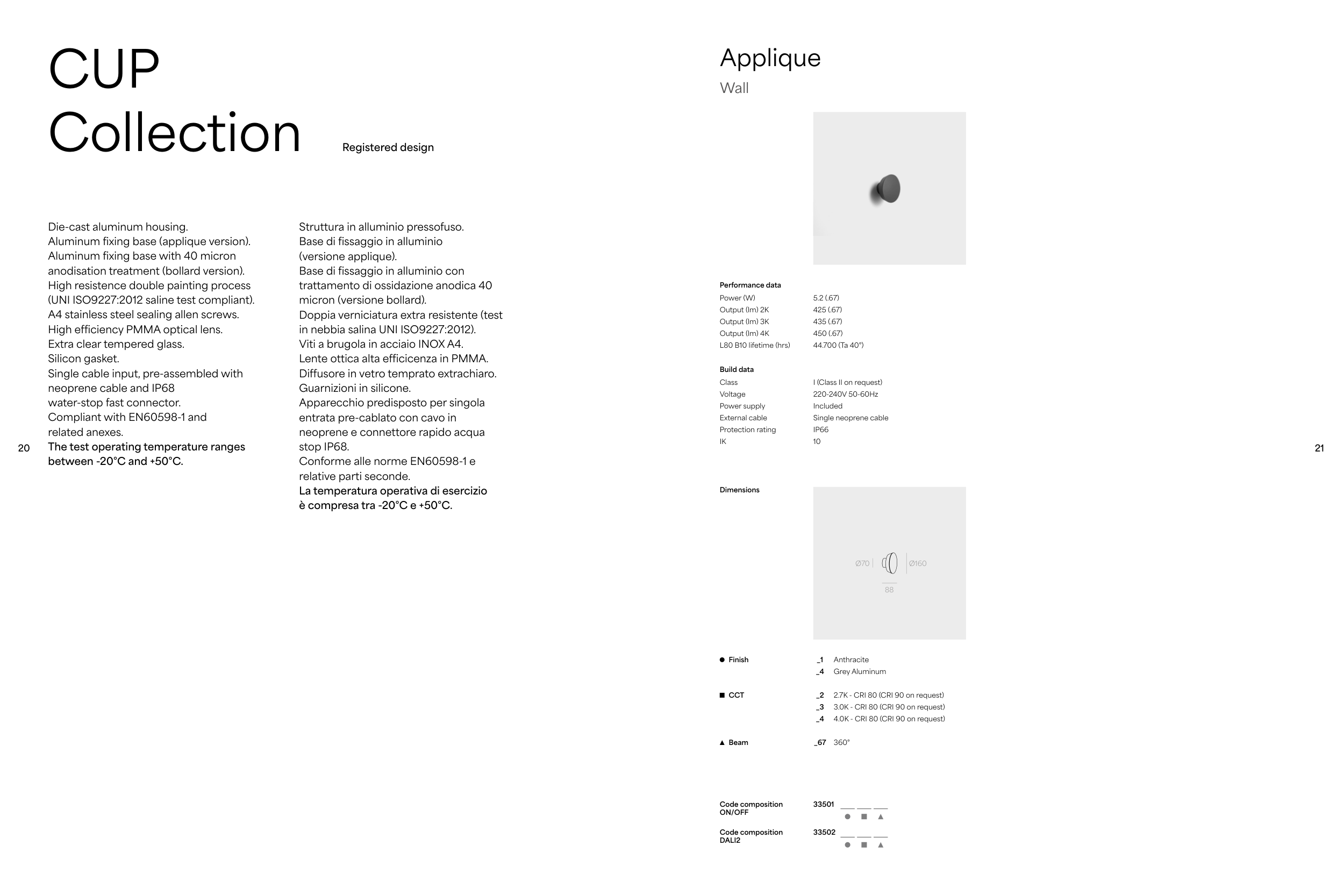

CUP
Collection
Registered design
Struttura in alluminio pressofuso.
Base di fissaggio in alluminio
(versione applique).
Base di fissaggio in alluminio con
trattamento di ossidazione anodica 40
micron (versione bollard).
Doppia verniciatura extra resistente (test
in nebbia salina UNI ISO9227:2012).
Viti a brugola in acciaio INOX A4.
Lente ottica alta efficicenza in PMMA.
Diffusore in vetro temprato extrachiaro.
Guarnizioni in silicone.
Apparecchio predisposto per singola
entrata pre-cablato con cavo in
neoprene e connettore rapido acqua
stop IP68.
Conforme alle norme EN60598-1 e
relative parti seconde.
La temperatura operativa di esercizio
è compresa tra -20°C e +50°C.
Die-cast aluminum housing.
Aluminum fixing base (applique version).
Aluminum fixing base with 40 micron
anodisation treatment (bollard version).
High resistence double painting process
(UNI ISO9227:2012 saline test compliant).
A4 stainless steel sealing allen screws.
High efficiency PMMA optical lens.
Extra clear tempered glass.
Silicon gasket.
Single cable input, pre-assembled with
neoprene cable and IP68
water-stop fast connector.
Compliant with EN60598-1 and
related anexes.
The test operating temperature ranges
between -20°C and +50°C.
Applique
Wall
Performance data
Power (W)
5.2 (.67)
Output (lm) 2K
425 (.67)
Output (lm) 3K
435 (.67)
Output (lm) 4K
450 (.67)
L80 B10 lifetime (hrs)
44.700 (Ta 40°)
Build data
Class
I (Class II on request)
Voltage
220-240V 50-60Hz
Power supply
Included
External cable
Single neoprene cable
Protection rating
IP66
IK
10
Dimensions
Finish
_1
Anthracite
_4
Grey Aluminum
CCT
_2
2.7K - CRI 80 (CRI 90 on request)
_3
3.0K - CRI 80 (CRI 90 on request)
_4
4.0K - CRI 80 (CRI 90 on request)
Beam
_67
360°
Code composition
ON/OFF
33501
Code composition
DALI2
33502
Ø70
88
Ø160
