Materials
Composition: TREVIRA CS 100%
Weight: 525 gr/m2(+/- 5 %)
Width: 138 / 140 cm
Repeat: None
Abrasion strenght
EN ISO 12947-2
50.000 cycles Martindale
Tensile strenght
EN ISO 13934-1
Warp: 1986 N / Weft: 2007 N
Tear strenght
EN ISO 13937-3
Warp: 196 N / Weft: 201 N
Ultimate elongation
EN ISO 13934-1
Warp: 34,5% / Weft: 43%
Seam resistance
EN ISO 13936-2
Warp > 162 N / Weft > 157 N
Pilling resistance
EN ISO 12945-2
5 Pilling Scale
Dry rub fastness
UNI EN ISO 105-X 12
4/5 Grey Scale
Wet rub fastness
UNI EN ISO 105-X 12
4/5 Grey Scale
Wet shrinkage
/
Warp: 2 / Weft: 2,5
Fire reaction tests
ANNEX 1 PART 7-8
BS 5852 Source 0-1 Cigarette test / Match test
California Technical Bulletin 117:2013 Section E Part 1
DIN 4102 B1 / EN 1021 1-2
IMO MSC.307 (88) — FTP CODE 2010 — PART 8
NF P 92-503-507 Ml
NFPA 260/UFAC
Senate Bill (SB) 1019
UNI 9177 — CLASSE 1
UNI 9175 CLASSE 1 I EMME

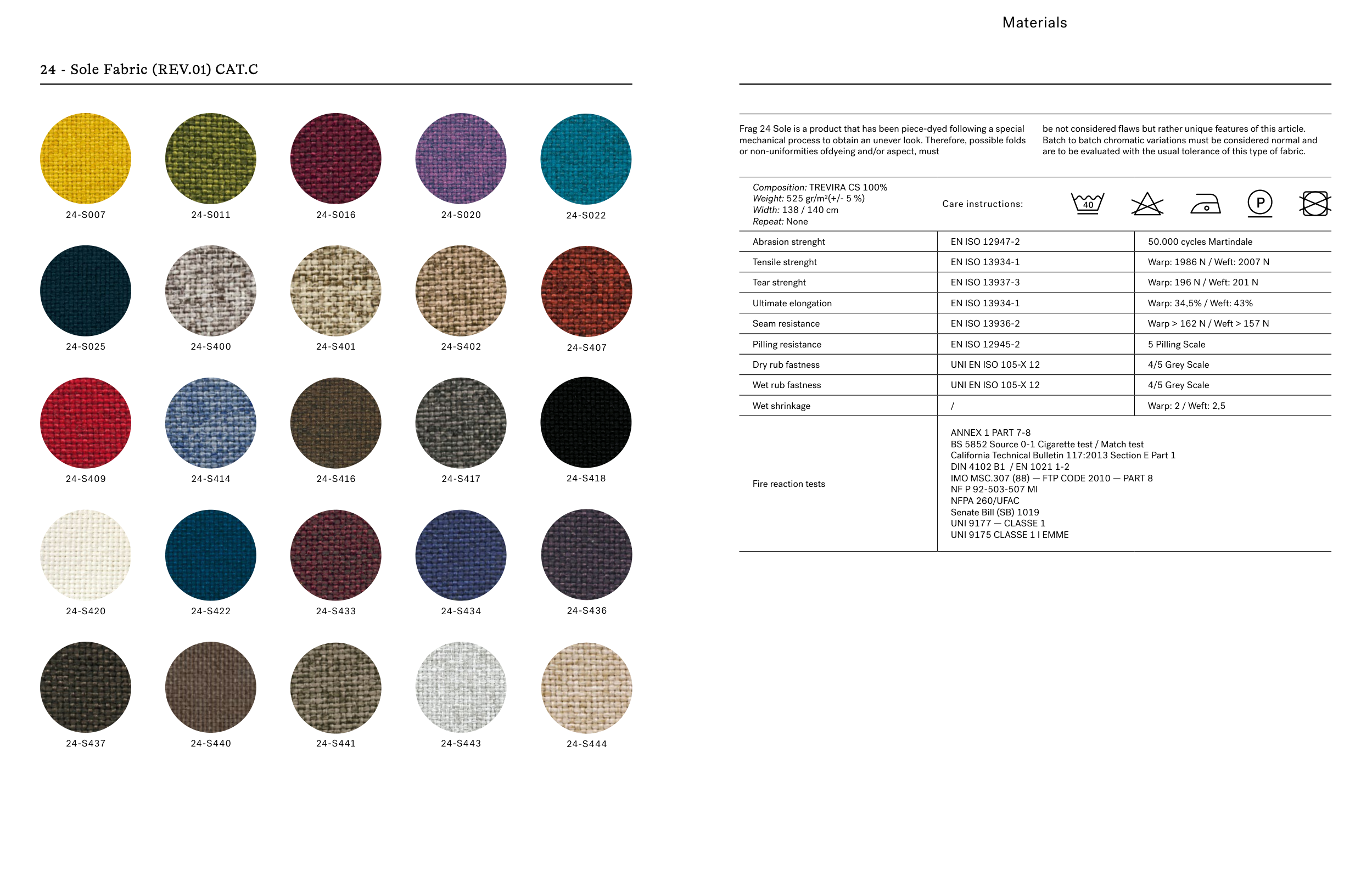

24 - Sole Fabric (REV.01) CAT.C
24-S007
24-S022
24-S407
24-S418
24-S436
24-S400
24-S414
24-S422
24-S440
24-S020
24-S444
24-S402
24-S417
24-S434
24-S443
24-S011
24-S025
24-S409
24-S420
24-S437
24-S016
24-S401
24-S416
24-S433
24-S441
Frag 24 Sole is a product that has been piece-dyed following a special
mechanical process to obtain an unever look. Therefore, possible folds
or non-uniformities ofdyeing and/or aspect, must
be not considered flaws but rather unique features of this article.
Batch to batch chromatic variations must be considered normal and
are to be evaluated with the usual tolerance of this type of fabric.
Care instructions:
