Zero Framing Projector Series
www.formalighting.com
30
31

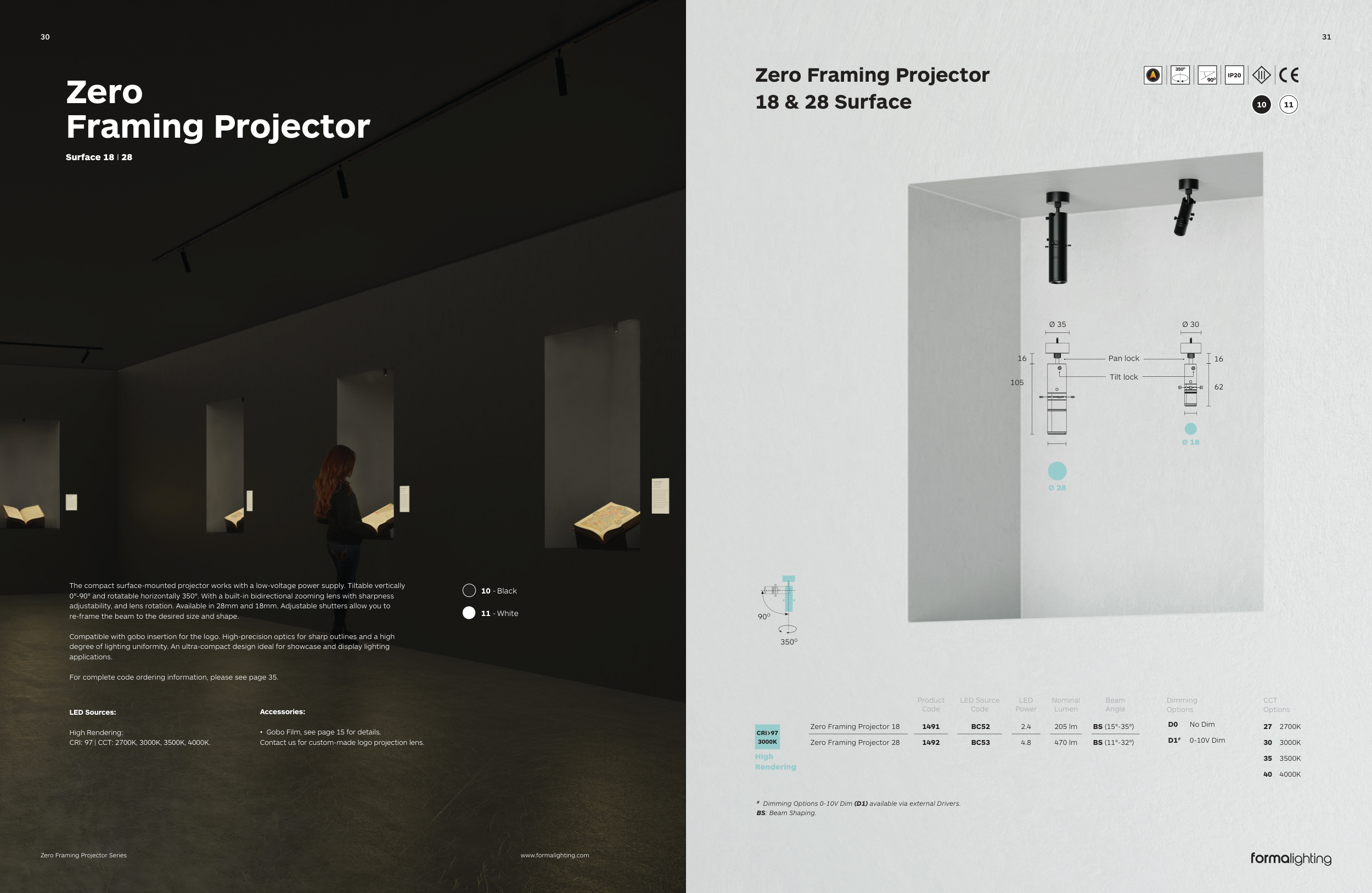

Zero Framing Projector
18 & 28 Surface
350O
90O
IP20
Dimming
Options
D0
No Dim
D1#
0-10V Dim
CCT
Options
27
2700K
30
3000K
35
3500K
40
4000K
Product
Code
LED Source
Code
LED
Power
Nominal
Lumen
Beam
Angle
CRI>97
3000K
High
Rendering
Zero Framing Projector 18
1491
BC52
2.4
205 lm
BS (15°-35°)
Zero Framing Projector 28
1492
BC53
4.8
470 lm
BS (11°-32°)
Zero
Framing Projector
Surface 18 I 28
10 - Black
11 - White
The compact surface-mounted projector works with a low-voltage power supply. Tiltable vertically
0°-90° and rotatable horizontally 350°. With a built-in bidirectional zooming lens with sharpness
adjustability, and lens rotation. Available in 28mm and 18mm. Adjustable shutters allow you to
re-frame the beam to the desired size and shape.
Compatible with gobo insertion for the logo. High-precision optics for sharp outlines and a high
degree of lighting uniformity. An ultra-compact design ideal for showcase and display lighting
applications.
For complete code ordering information, please see page 35.
LED Sources:
High Rendering:
CRI: 97 | CCT: 2700K, 3000K, 3500K, 4000K.
Accessories:
• Gobo Film, see page 15 for details.
Contact us for custom-made logo projection lens.
www.formalighting.com
30
Zero Framing Projector Series
Ø 18
62
16
Ø 30
Ø 28
Ø 35
# Dimming Options 0-10V Dim (D1) available via external Drivers.
BS: Beam Shaping.
31
105
16
Pan lock
Tilt lock
90O
350O
