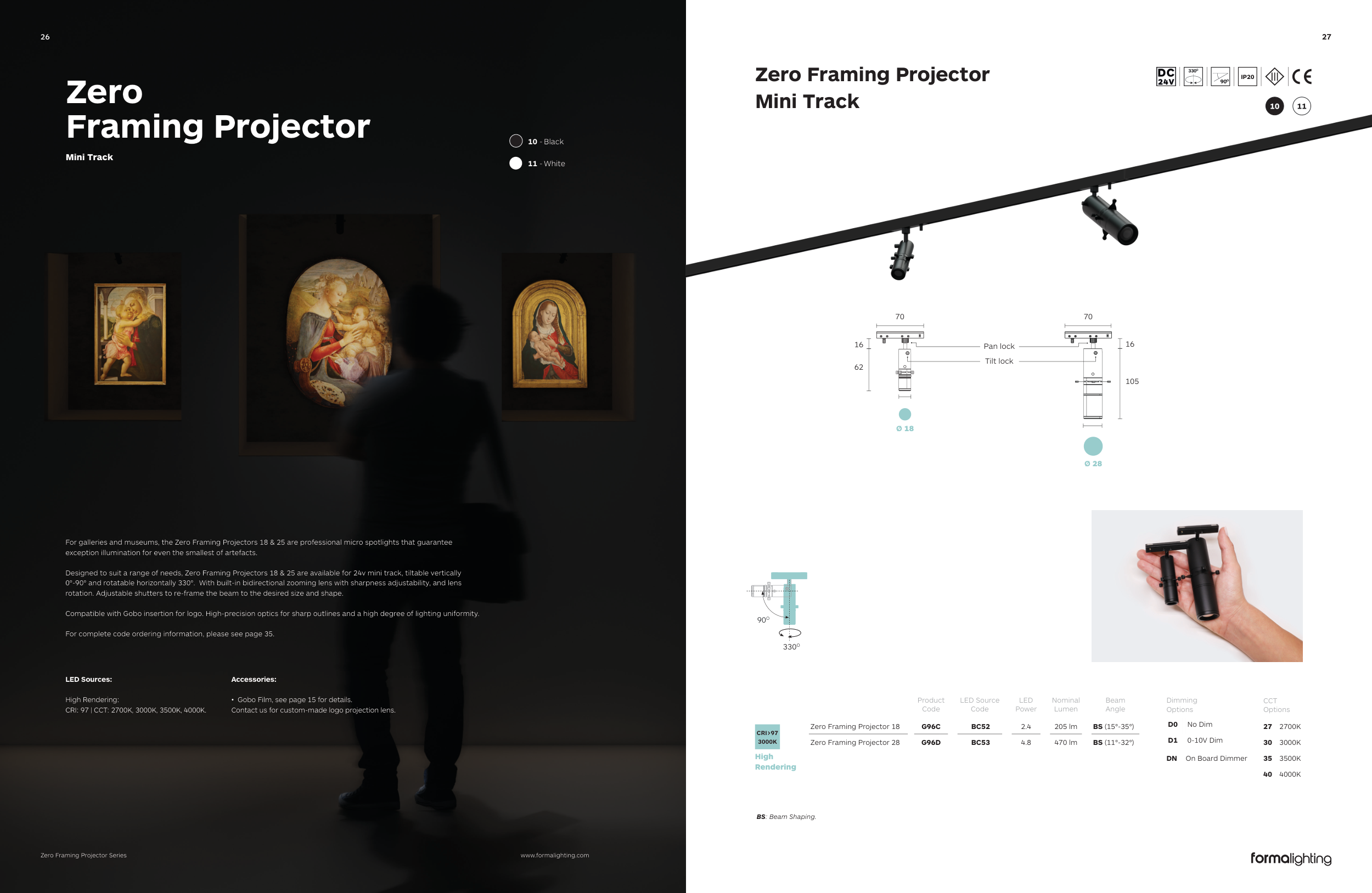

Zero
Framing Projector
Mini Track
10 - Black
11 - White
For galleries and museums, the Zero Framing Projectors 18 & 25 are professional micro spotlights that guarantee
exception illumination for even the smallest of artefacts.
Designed to suit a range of needs, Zero Framing Projectors 18 & 25 are available for 24v mini track, tiltable vertically
0°-90° and rotatable horizontally 330°. With built-in bidirectional zooming lens with sharpness adjustability, and lens
rotation. Adjustable shutters to re-frame the beam to the desired size and shape.
Compatible with Gobo insertion for logo. High-precision optics for sharp outlines and a high degree of lighting uniformity.
For complete code ordering information, please see page 35.
LED Sources:
High Rendering:
CRI: 97 | CCT: 2700K, 3000K, 3500K, 4000K.
Accessories:
• Gobo Film, see page 15 for details.
Contact us for custom-made logo projection lens.
www.formalighting.com
26
Zero Framing Projector Series
Dimming
Options
D0
No Dim
D1
0-10V Dim
DN
On Board Dimmer
CCT
Options
27
2700K
30
3000K
35
3500K
40
4000K
Product
Code
LED Source
Code
LED
Power
Nominal
Lumen
Beam
Angle
CRI>97
3000K
High
Rendering
Zero Framing Projector 18
G96C
BC52
2.4
205 lm
BS (15°-35°)
Zero Framing Projector 28
G96D
BC53
4.8
470 lm
BS (11°-32°)
Zero Framing Projector
Mini Track
330O
90O
IP20
BS: Beam Shaping.
Ø 18
62
70
16
70
Ø 28
105
16
Pan lock
Tilt lock
90O
330O
