- Track
Dimming
Options
D0
No Dim
DA
Dali Dim
DC
CASAMBI
DN
On Board Dimmer
CCT
Options
27
2700K
30
3000K
35
3500K
40
4000K

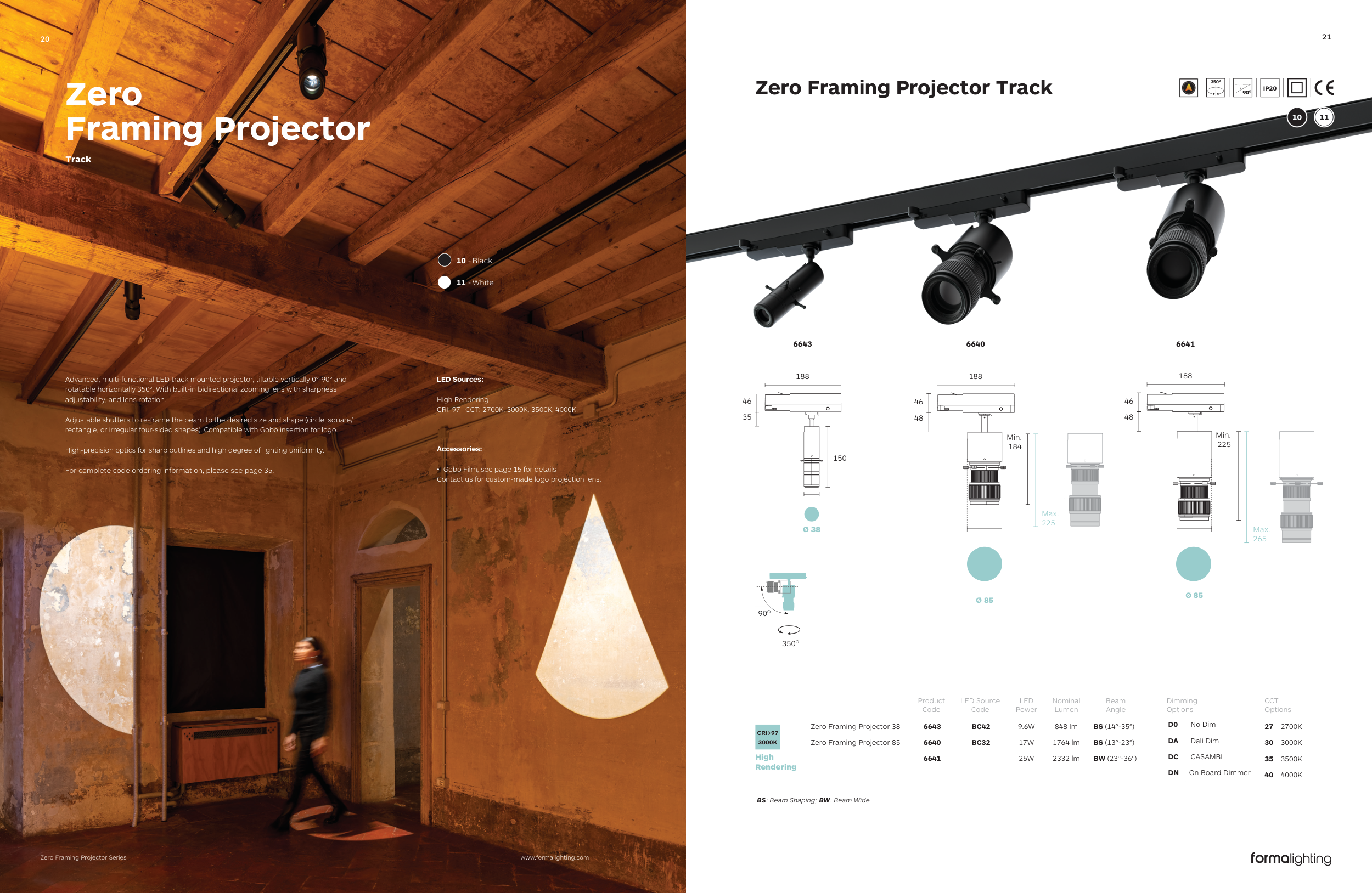

Zero Framing Projector Track
Product
Code
LED Source
Code
LED
Power
Nominal
Lumen
Beam
Angle
CRI>97
3000K
High
Rendering
Zero Framing Projector 38
6643
BC42
9.6W
848 lm
BS (14°-35°)
Zero Framing Projector 85
6640
BC32
17W
1764 lm
BS (13°-23°)
6641
25W
2332 lm
BW (23°-36°)
Ø 85
Ø 85
Zero
Framing Projector
Track
Advanced, multi-functional LED track mounted projector, tiltable vertically 0°-90° and
rotatable horizontally 350°. With built-in bidirectional zooming lens with sharpness
adjustability, and lens rotation.
Adjustable shutters to re-frame the beam to the desired size and shape (circle, square/
rectangle, or irregular four-sided shapes). Compatible with Gobo insertion for logo.
High-precision optics for sharp outlines and high degree of lighting uniformity.
For complete code ordering information, please see page 35.
LED Sources:
High Rendering:
CRI: 97 | CCT: 2700K, 3000K, 3500K, 4000K.
Accessories:
• Gobo Film, see page 15 for details
Contact us for custom-made logo projection lens.
www.formalighting.com
20
Zero Framing Projector Series
10 - Black
11 - White
BS: Beam Shaping; BW: Beam Wide.
Ø 38
6640
6643
6641
350O
90O
IP20
Min.
184
188
46
48
Max.
225
188
35
46
150
188
46
48
Min.
225
Max.
265
90O
350O
