Working Catalogue - Outdoor
www.formalighting.com

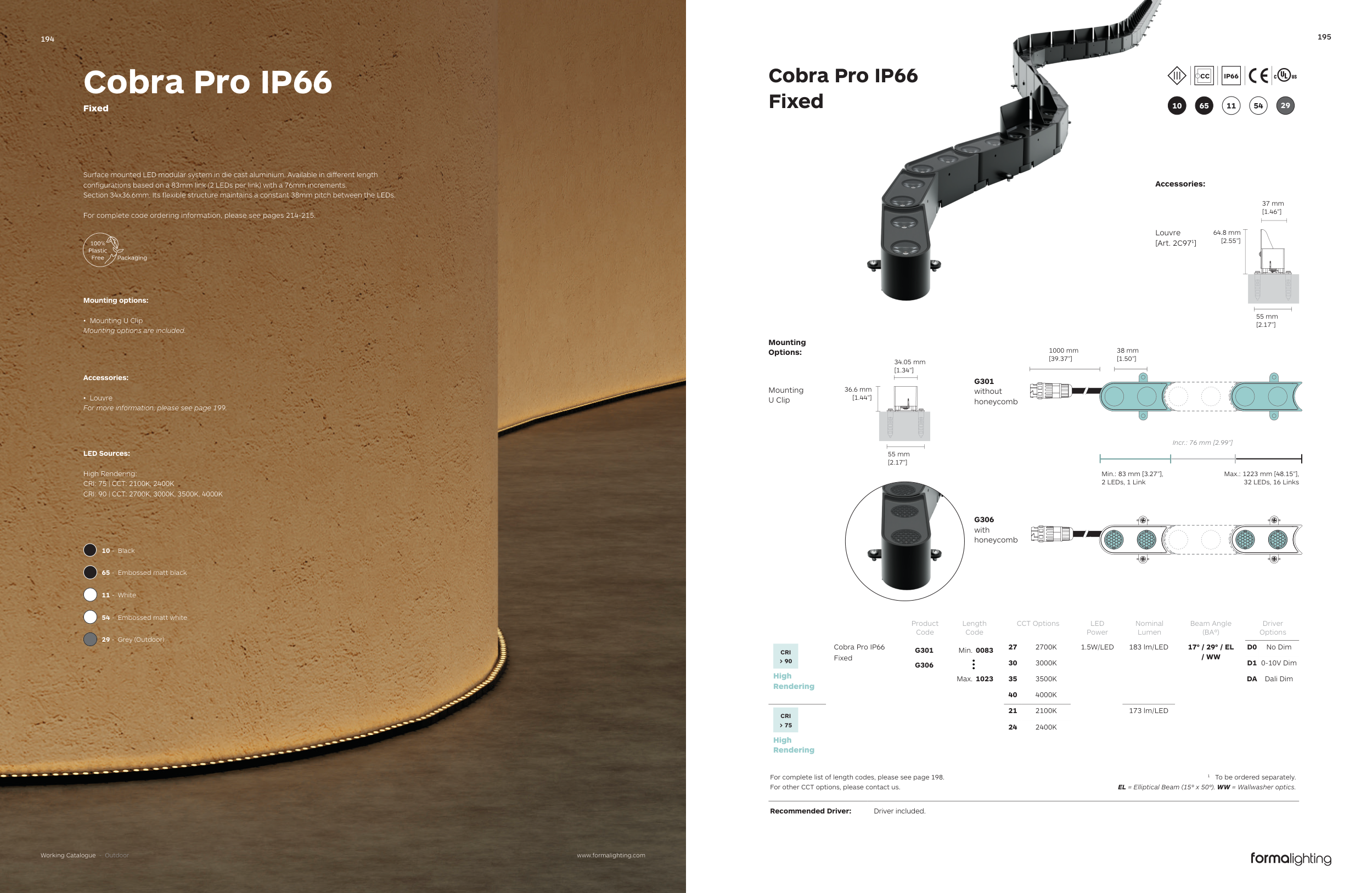

Cobra Pro IP66
Fixed
Surface mounted LED modular system in die cast aluminium. Available in different length
configurations based on a 83mm link (2 LEDs per link) with a 76mm increments.
Section 34x36.6mm. Its flexible structure maintains a constant 38mm pitch between the LEDs.
For complete code ordering information, please see pages 214-215.
Mounting options:
• Mounting U Clip
Mounting options are included.
LED Sources:
High Rendering:
CRI: 75 | CCT: 2100K, 2400K
CRI: 90 | CCT: 2700K, 3000K, 3500K, 4000K
10 - Black
65 - Embossed matt black
11 - White
54 - Embossed matt white
29 - Grey (Outdoor)
Accessories:
• Louvre
For more information, please see page 199.
www.formalighting.com
Working Catalogue - Outdoor
194
For other CCT options, please contact us.
For complete list of length codes, please see page 198.
Recommended Driver:
Driver included.
Cobra Pro IP66
Fixed
Product
Code
Length
Code
CCT Options
LED
Power
Nominal
Lumen
Beam Angle
(BAº)
Driver
Options
CRI
> 90
High
Rendering
Cobra Pro IP66
Fixed
G301
Min. 0083
27
2700K
1.5W/LED
183 lm/LED
17° / 29° / EL
/ WW
D0
No Dim
G306
30
3000K
D1 0-10V Dim
Max. 1023
35
3500K
DA
Dali Dim
40
4000K
CRI
> 75
High
Rendering
21
2100K
173 lm/LED
24
2400K
CC
IP66
29
55 mm
[2.17”]
Accessories:
Louvre
[Art. 2C971]
37 mm
[1.46”]
64.8 mm
[2.55”]
Min.: 83 mm [3.27”],
2 LEDs, 1 Link
Max.: 1223 mm [48.15”],
32 LEDs, 16 Links
Incr.: 76 mm [2.99”]
1000 mm
[39.37”]
38 mm
[1.50”]
Mounting
Options:
Mounting
U Clip
34.05 mm
[1.34”]
36.6 mm
[1.44”]
55 mm
[2.17”]
G301
without
honeycomb
G306
with
honeycomb
1 To be ordered separately.
EL = Elliptical Beam (15º x 50º). WW = Wallwasher optics.
