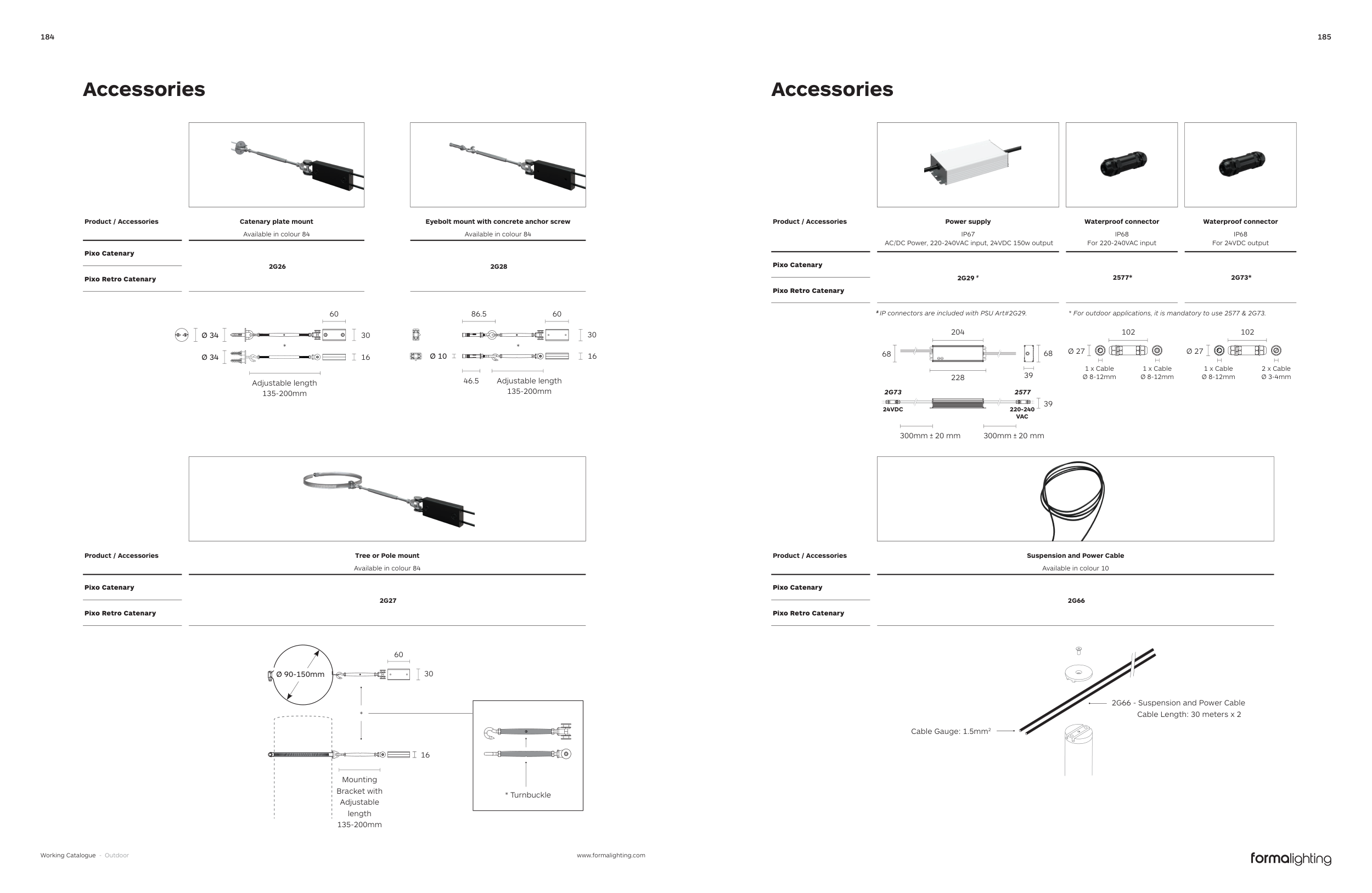

Working Catalogue - Outdoor
www.formalighting.com
16
Mounting
Bracket with
Adjustable
length
135-200mm
60
30
Ø 90-150mm
Accessories
Product / Accessories
Tree or Pole mount
Available in colour 84
Pixo Catenary
2G27
Pixo Retro Catenary
Product / Accessories
Catenary plate mount
Eyebolt mount with concrete anchor screw
Available in colour 84
Available in colour 84
Pixo Catenary
2G26
2G28
Pixo Retro Catenary
60
30
16
Adjustable length
135-200mm
Ø 34
Ø 34
60
86.5
46.5
30
Adjustable length
135-200mm
Ø 10
16
Accessories
Product / Accessories
Power supply
Waterproof connector
Waterproof connector
IP67
AC/DC Power, 220-240VAC input, 24VDC 150w output
IP68
For 220-240VAC input
IP68
For 24VDC output
Pixo Catenary
2G29 #
2577*
2G73*
Pixo Retro Catenary
204
68
39
220-240
VAC
24VDC
68
39
228
300mm 20 mm
300mm 20 mm
2G73
2577
102
Ø 27
1 x Cable
Ø 8-12mm
1 x Cable
Ø 8-12mm
Ø 27
102
1 x Cable
Ø 8-12mm
2 x Cable
Ø 3-4mm
Product / Accessories
Suspension and Power Cable
Available in colour 10
Pixo Catenary
2G66
Pixo Retro Catenary
2G66 - Suspension and Power Cable
Cable Length: 30 meters x 2
Cable Gauge: 1.5mm2
* Turnbuckle
*
*
*
* For outdoor applications, it is mandatory to use 2577 & 2G73.
# IP connectors are included with PSU Art#2G29.
