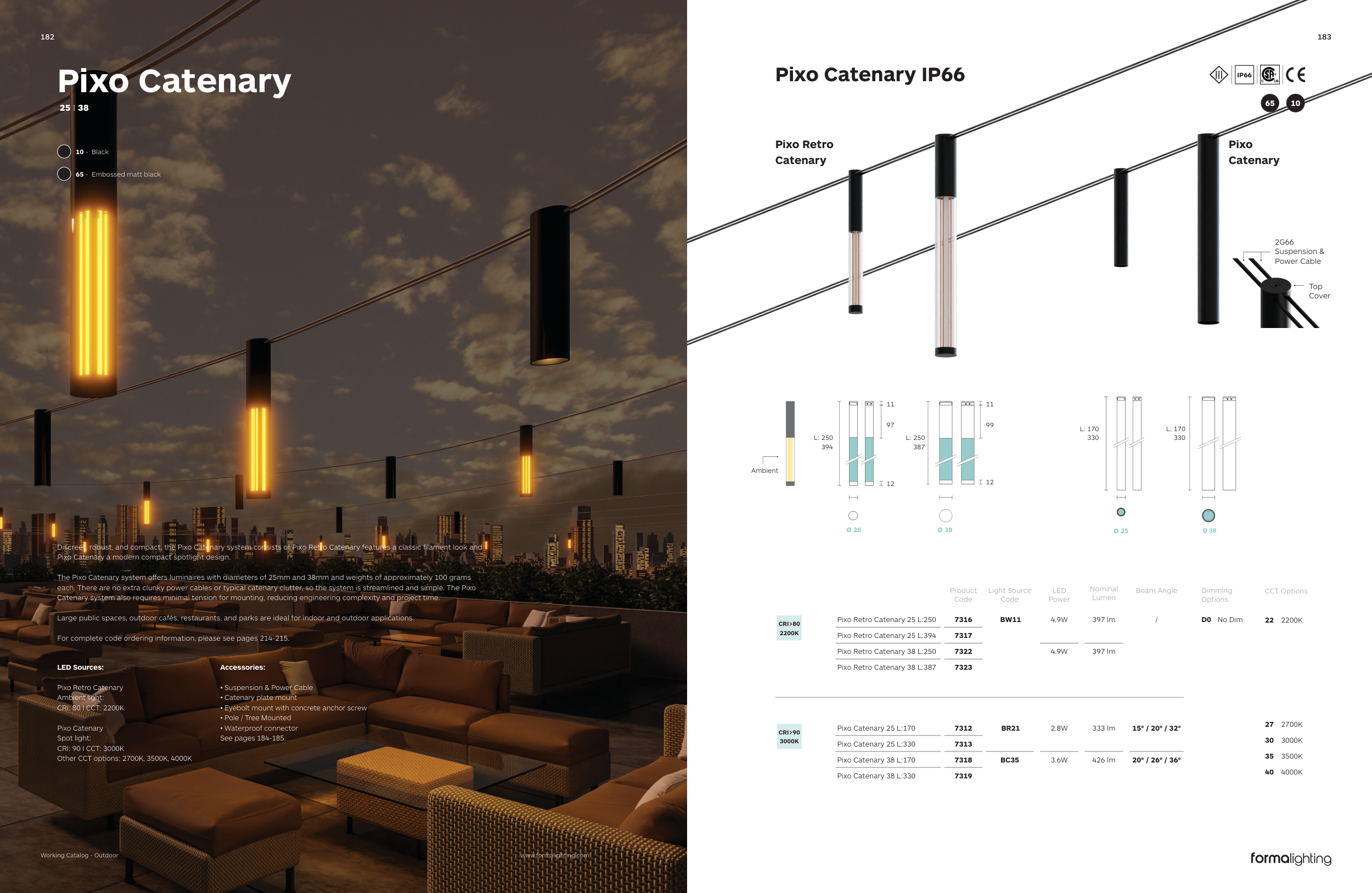

Pixo Catenary
www.formalighting.com
182
Working Catalog - Outdoor
Discreet, robust, and compact, the Pixo Catenary system consists of Pixo Retro Catenary features a classic filament look and
Pixo Catenary a modern compact spotlight design.
The Pixo Catenary system offers luminaires with diameters of 25mm and 38mm and weights of approximately 100 grams
each. There are no extra clunky power cables or typical catenary clutter, so the system is streamlined and simple. The Pixo
Catenary system also requires minimal tension for mounting, reducing engineering complexity and project time.
Large public spaces, outdoor cafés, restaurants, and parks are ideal for indoor and outdoor applications.
For complete code ordering information, please see pages 214-215.
LED Sources:
Pixo Retro Catenary
Ambient light:
CRI: 80 I CCT: 2200K
Pixo Catenary
Spot light:
CRI: 90 I CCT: 3000K
Other CCT options: 2700K, 3500K, 4000K
Accessories:
• Suspension & Power Cable
• Catenary plate mount
• Eyebolt mount with concrete anchor screw
• Pole / Tree Mounted
• Waterproof connector
See pages 184-185.
10 - Black
65 - Embossed matt black
Pixo Catenary IP66
IP66
Product
Code
Light Source
Code
LED
Power
Nominal
Lumen
Beam Angle
CRI>80
2200K
Pixo Retro Catenary 25 L:250
7316
BW11
4.9W
397 lm
/
Pixo Retro Catenary 25 L:394
7317
Pixo Retro Catenary 38 L:250
7322
4.9W
397 lm
Pixo Retro Catenary 38 L:387
7323
CRI>90
3000K
Pixo Catenary 25 L:170
7312
BR21
2.8W
333 lm
15° / 20° / 32°
Pixo Catenary 25 L:330
7313
Pixo Catenary 38 L:170
7318
BC35
3.6W
426 lm
20° / 26° / 36°
Pixo Catenary 38 L:330
7319
27
2700K
30
3000K
35
3500K
40
4000K
CCT Options
22
2200K
Dimming
Options
D0
No Dim
Ø 25
Ø 38
Pixo Retro
Catenary
Pixo
Catenary
Ø 25
L: 170
L: 330
L:
L: 250
L: 387
L: 250
L: 394
L: 170
L: 330
L:
11
11
97
99
12
12
Ambient
Ø 38
2G66
Suspension &
Power Cable
Top
Cover
