- Pendant
Notes:
*
For complete code ordering information, please see pages 214-215.
** For other CCT options, please contact us.
Related Products
Body
Optic
Applications
LED sources
Finish
Driver
Accessories

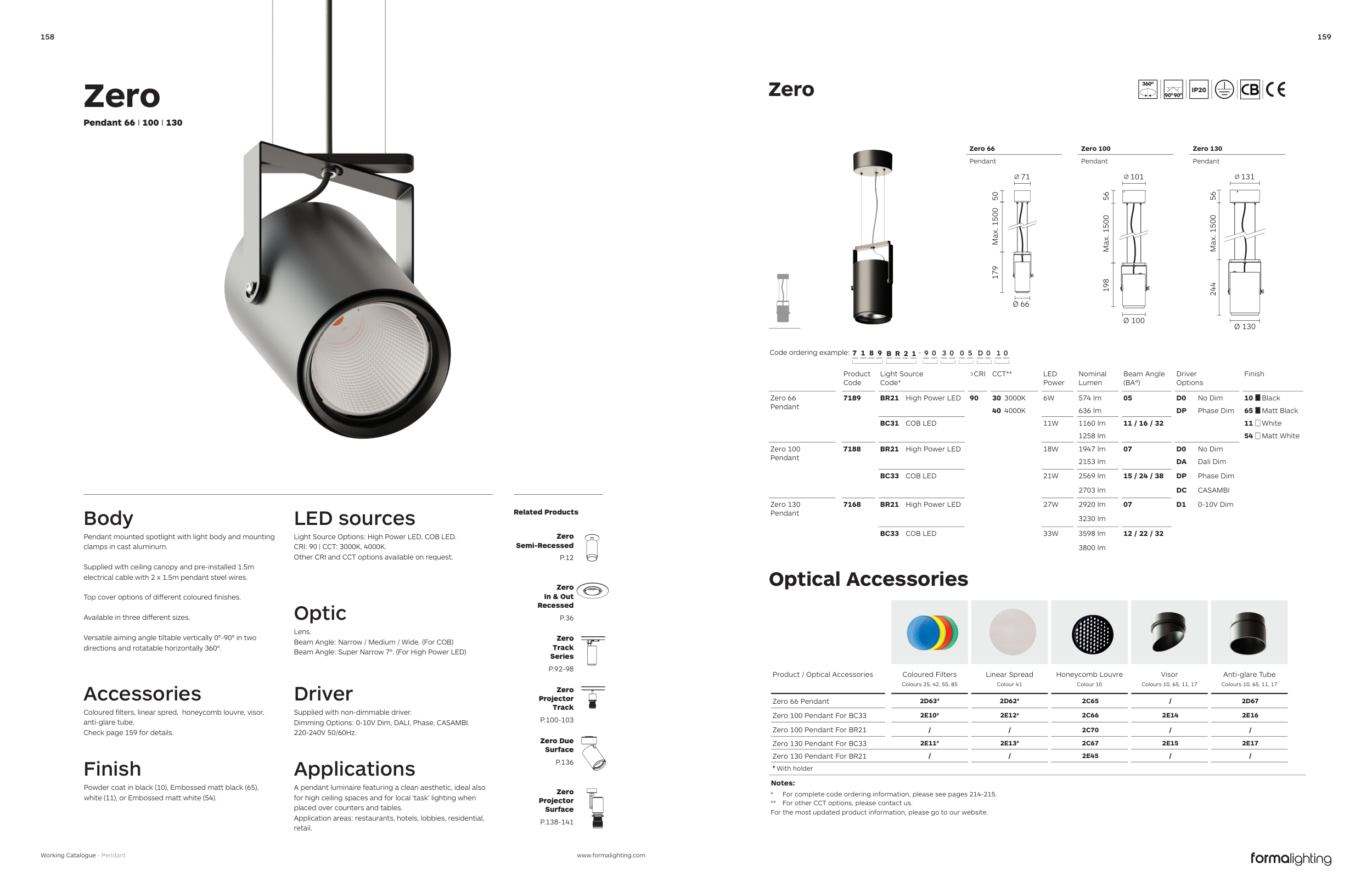

Pendant 66 I 100 I 130
Zero
A pendant luminaire featuring a clean aesthetic, ideal also
for high ceiling spaces and for local ‘task’ lighting when
placed over counters and tables.
Application areas: restaurants, hotels, lobbies, residential,
retail.
Powder coat in black (10), Embossed matt black (65),
white (11), or Embossed matt white (54).
Coloured filters, linear spred, honeycomb louvre, visor,
anti-glare tube.
Check page 159 for details.
Supplied with non-dimmable driver.
Dimming Options: 0-10V Dim, DALI, Phase, CASAMBI.
220-240V 50/60Hz.
Lens.
Beam Angle: Narrow / Medium / Wide. (For COB)
Beam Angle: Super Narrow 7°. (For High Power LED)
Light Source Options: High Power LED, COB LED.
CRI: 90 | CCT: 3000K, 4000K.
Other CRI and CCT options available on request.
Pendant mounted spotlight with light body and mounting
clamps in cast aluminum.
Supplied with ceiling canopy and pre-installed 1.5m
electrical cable with 2 x 1.5m pendant steel wires.
Top cover options of different coloured finishes.
Available in three different sizes.
Versatile aiming angle tiltable vertically 0°-90° in two
directions and rotatable horizontally 360°.
For the most updated product information, please go to our website.
Zero
360O
90O90O
IP20
Zero 66
Zero 100
Zero 130
Pendant
Pendant
Pendant
Ø 66
71
50
179
Max. 1500
Ø 100
101
56
198
Max. 1500
Ø 130
131
56
244
Max. 1500
Product
Code
Light Source
Code*
>CRI
CCT**
LED
Power
Nominal
Lumen
Beam Angle
(BAº)
Driver
Options
Finish
Zero 66
Pendant
7189
BR21
High Power LED
90
30 3000K
6W
574 lm
05
D0
No Dim
10
Black
40 4000K
636 lm
DP
Phase Dim
65
Matt Black
BC31
COB LED
11W
1160 lm
11 / 16 / 32
11
White
1258 lm
54
Matt White
Zero 100
Pendant
7188
BR21
High Power LED
18W
1947 lm
07
D0
No Dim
2153 lm
DA
Dali Dim
BC33
COB LED
21W
2569 lm
15 / 24 / 38
DP
Phase Dim
2703 lm
DC
CASAMBI
Zero 130
Pendant
7168
BR21
High Power LED
27W
2920 lm
07
D1
0-10V Dim
3230 lm
BC33
COB LED
33W
3598 lm
12 / 22 / 32
3800 lm
Optical Accessories
Product / Optical Accessories
Coloured Filters
Linear Spread
Honeycomb Louvre
Visor
Anti-glare Tube
Colours 25, 42, 55, 85
Colour 41
Colour 10
Colours 10, 65, 11, 17
Colours 10, 65, 11, 17
Zero 66 Pendant
2D63#
2D62#
2C65
/
2D67
Zero 100 Pendant For BC33
2E10#
2E12#
2C66
2E14
2E16
Zero 100 Pendant For BR21
/
/
2C70
/
/
Zero 130 Pendant For BC33
2E11#
2E13#
2C67
2E15
2E17
Zero 130 Pendant For BR21
/
/
2E45
/
/
# With holder
-
7 1 8 9 B R 2 1
9 0
3 0
0 5 D 0 1 0
Code ordering example:
