154
- Pendant
Notes:
*
For complete code ordering information, please see pages 214-215.
** For other CCT options, please contact us.
For the most updated product information, please go to our website.
Optical Accessories

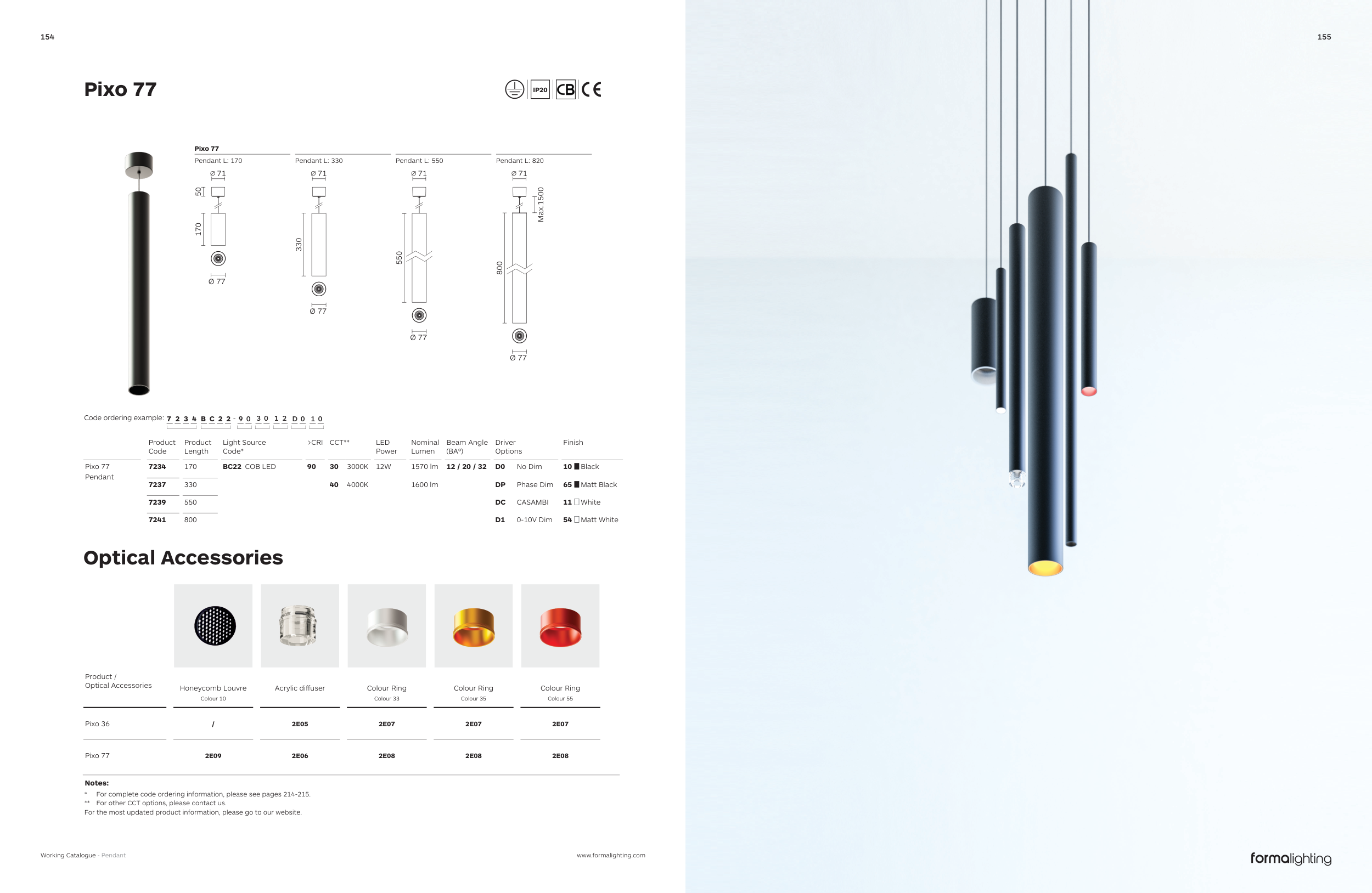

Pixo 77
Pendant L: 170
Pendant L: 330
Pendant L: 550
Pendant L: 820
Ø 77
71
50
170
Ø 77
71
330
Ø 77
71
550
Ø 77
71
800
Max.1500
Product
Code
Product
Length
Light Source
Code*
>CRI
CCT**
LED
Power
Nominal
Lumen
Beam Angle
(BAº)
Driver
Options
Finish
Pixo 77
Pendant
7234
170
BC22 COB LED
90
30
3000K
12W
1570 lm
12 / 20 / 32
D0
No Dim
10
Black
7237
330
40
4000K
1600 lm
DP
Phase Dim
65
Matt Black
7239
550
DC
CASAMBI
11
White
7241
800
D1
0-10V Dim
54
Matt White
Pixo 77
Product /
Optical Accessories
Honeycomb Louvre
Acrylic diffuser
Colour Ring
Colour Ring
Colour Ring
Colour 10
Colour 33
Colour 35
Colour 55
Pixo 36
/
2E05
2E07
2E07
2E07
Pixo 77
2E09
2E06
2E08
2E08
2E08
155
-
7 2 3 4 B C 2 2
9 0
3 0
1 2 D 0 1 0
Code ordering example:
IP20
