- Pendant
Notes:
*
For complete code ordering information, please see pages 214-215.
** For other CCT options, please contact us.
For the most updated product information, please go to our website.
Related Products
Body
Optic
Applications
LED sources
Finish
Driver
Accessories
For related accessories, please see page 186.

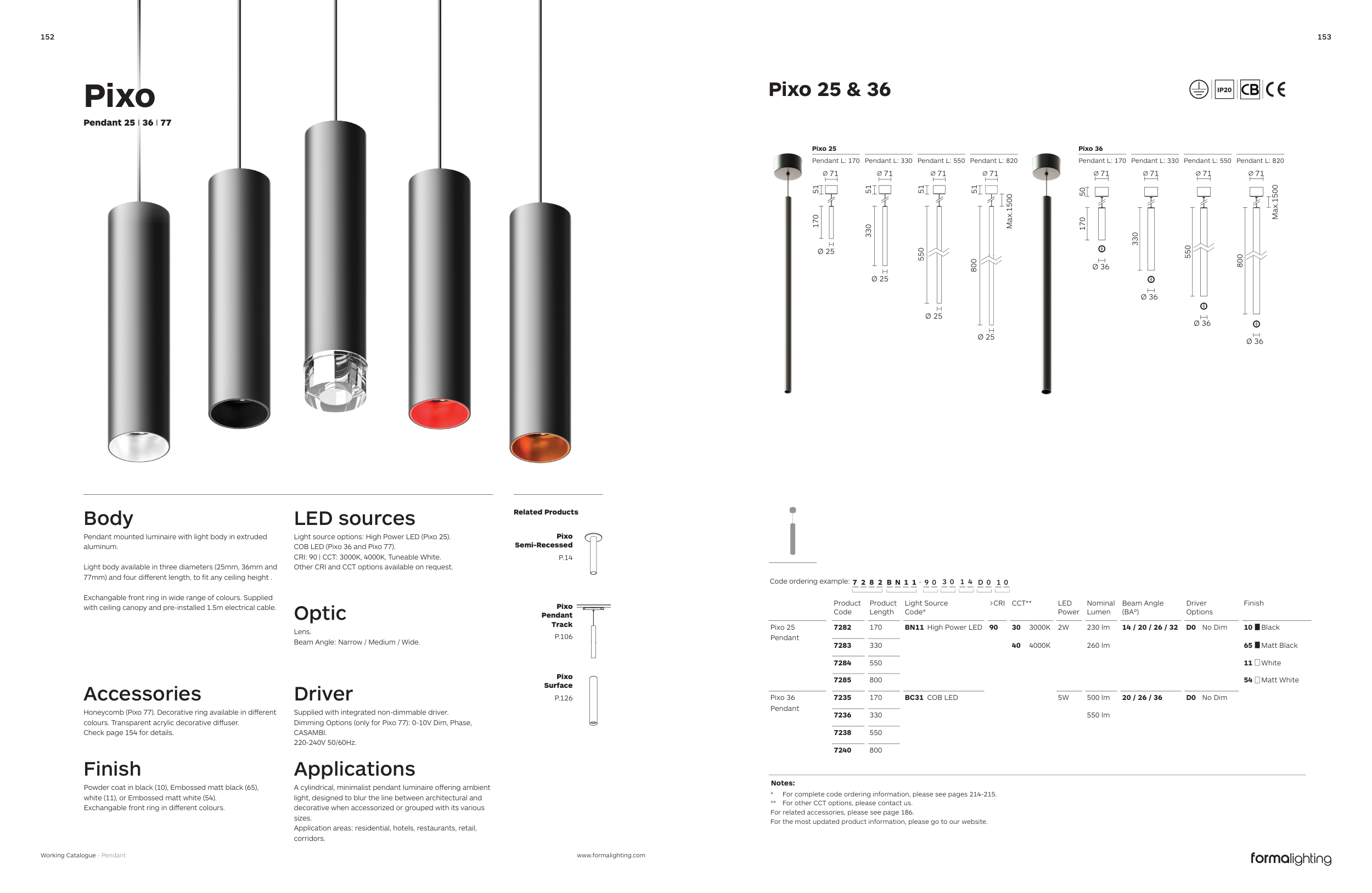

A cylindrical, minimalist pendant luminaire offering ambient
light, designed to blur the line between architectural and
decorative when accessorized or grouped with its various
sizes.
Application areas: residential, hotels, restaurants, retail,
corridors.
Powder coat in black (10), Embossed matt black (65),
white (11), or Embossed matt white (54).
Exchangable front ring in different colours.
Honeycomb (Pixo 77). Decorative ring available in different
colours. Transparent acrylic decorative diffuser.
Check page 154 for details.
Supplied with integrated non-dimmable driver.
Dimming Options (only for Pixo 77): 0-10V Dim, Phase,
CASAMBI.
220-240V 50/60Hz.
Lens.
Beam Angle: Narrow / Medium / Wide.
Light source options: High Power LED (Pixo 25).
COB LED (Pixo 36 and Pixo 77).
CRI: 90 | CCT: 3000K, 4000K, Tuneable White.
Other CRI and CCT options available on request.
Pendant mounted luminaire with light body in extruded
aluminum.
Light body available in three diameters (25mm, 36mm and
77mm) and four different length, to fit any ceiling height .
Exchangable front ring in wide range of colours. Supplied
with ceiling canopy and pre-installed 1.5m electrical cable.
Pixo 25 & 36
Pixo 25
Pixo 36
Pendant L: 170 Pendant L: 330 Pendant L: 550 Pendant L: 820
Pendant L: 170 Pendant L: 330 Pendant L: 550 Pendant L: 820
Ø 25
71
51
170
Ø 25
71
51
330
71
51
550
Ø 25
71
51
800
Ø 25
Max.1500
Ø 36
71
50
170
Ø 36
71
330
Ø 36
71
550
Ø 36
71
800
Max.1500
Product
Code
Product
Length
Light Source
Code*
>CRI
CCT**
LED
Power
Nominal
Lumen
Beam Angle
(BAº)
Driver
Options
Finish
Pixo 25
Pendant
7282
170
BN11 High Power LED
90
30
3000K
2W
230 lm
14 / 20 / 26 / 32
D0
No Dim
10
Black
7283
330
40
4000K
260 lm
65
Matt Black
7284
550
11
White
7285
800
54
Matt White
Pixo 36
Pendant
7235
170
BC31 COB LED
5W
500 lm
20 / 26 / 36
D0
No Dim
7236
330
550 lm
7238
550
7240
800
Pixo
Semi-Recessed
P.14
Pixo
Pendant
Track
P.106
Pixo
Surface
P.126
Pendant 25 I 36 I 77
Pixo
-
7 2 8 2 B N 1 1
9 0
3 0
1 4 D 0 1 0
Code ordering example:
IP20
