Working Catalogue
www.formalighting.com
144
145
- Surface
Notes:
*
For complete code ordering information, please see pages 214-215.
** For other CCT options, please contact us.
For the most updated product information, please go to our website.
Related Products
Body
Optic
Applications
LED sources
Finish
Driver
Accessories
Perfect for office use.
Application areas: Retail, Education Healthcare, Hospitality,
Hotels.
Integrated driver included.
220-240V 50/60Hz.
Micro prismatic diffuser.
LED.
Up: SMD LED. Power from 3.7W to 21W.
Lumen from 616lm to 4104lm.
Down: SMD LED. Power from 11W to 45W.
Lumen from 1903lm to 7728lm.
CRI>80, CCT: 3000K | 4000K
Suspension Kit Fixed Rod 2F46. Suspension Kit Wire 2F47.
To be ordered separately.
See page 145 for details.

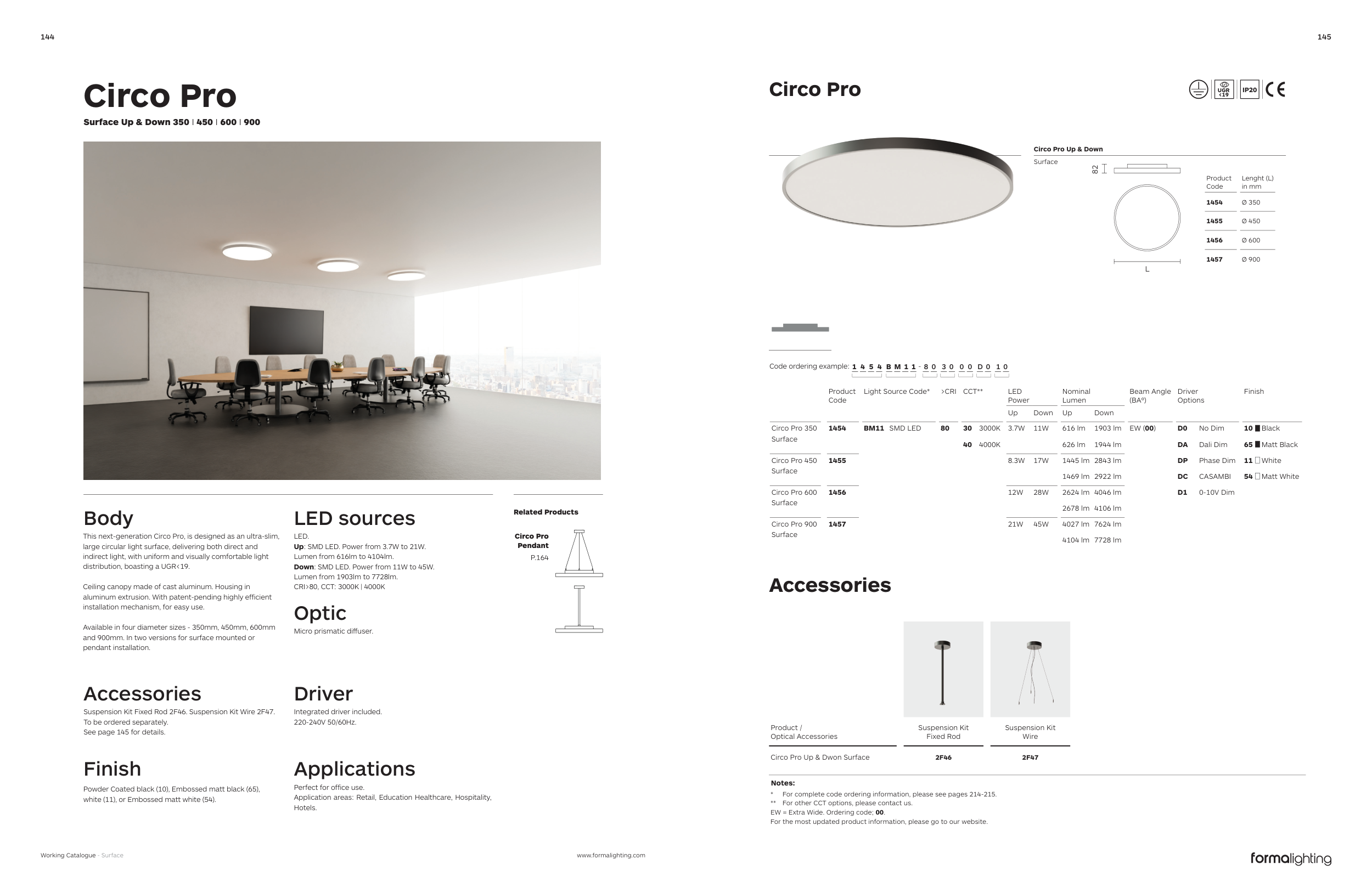

Circo Pro
Powder Coated black (10), Embossed matt black (65),
white (11), or Embossed matt white (54).
Surface Up & Down 350 I 450 I 600 I 900
Circo Pro
Pendant
P.164
This next-generation Circo Pro, is designed as an ultra-slim,
large circular light surface, delivering both direct and
indirect light, with uniform and visually comfortable light
distribution, boasting a UGR<19.
Ceiling canopy made of cast aluminum. Housing in
aluminum extrusion. With patent-pending highly efficient
installation mechanism, for easy use.
Available in four diameter sizes - 350mm, 450mm, 600mm
and 900mm. In two versions for surface mounted or
pendant installation.
EW = Extra Wide. Ordering code; 00.
UGR
<19
IP20
Circo Pro
Product
Code
Light Source Code*
>CRI
CCT**
LED
Power
Nominal
Lumen
Beam Angle
(BAº)
Driver
Options
Finish
Up
Down
Up
Down
Circo Pro 350
Surface
1454
BM11 SMD LED
80
30
3000K
3.7W
11W
616 lm
1903 lm
EW (00)
D0
No Dim
10
Black
40
4000K
626 lm
1944 lm
DA
Dali Dim
65
Matt Black
Circo Pro 450
Surface
1455
8.3W
17W
1445 lm 2843 lm
DP
Phase Dim
11
White
1469 lm 2922 lm
DC
CASAMBI
54
Matt White
Circo Pro 600
Surface
1456
12W
28W
2624 lm 4046 lm
D1
0-10V Dim
2678 lm 4106 lm
Circo Pro 900
Surface
1457
21W
45W
4027 lm 7624 lm
4104 lm 7728 lm
-
1 4 5 4 B M 1 1
8 0
3 0
0 0 D 0 1 0
Code ordering example:
Accessories
Product /
Optical Accessories
Suspension Kit
Fixed Rod
Suspension Kit
Wire
Circo Pro Up & Dwon Surface
2F46
2F47
Circo Pro Up & Down
Surface
L
82
Product
Code
Lenght (L)
in mm
1454
Ø 350
1455
Ø 450
1456
Ø 600
1457
Ø 900
