- Track
Notes:
*
For complete code ordering information, please see pages 214-215.
** For other CCT options, please contact us.
Related Products
Body
Optic
Applications
LED sources
Finish
Driver
Accessories
Powder Coat in black (10), Embossed matt black (65),
white (11), or Embossed matt white (54).
A cylindrical, minimalist pendant luminaire offering ambient
light, designed to blur the line between architectural and
decorative, with its numerous accessories.
Application areas, residential, hotels, restaurants, retails
and corridors.
Decorative front rings available in different colours.
Transparent acrylic decorative diffuser.
Check page 117 for details.

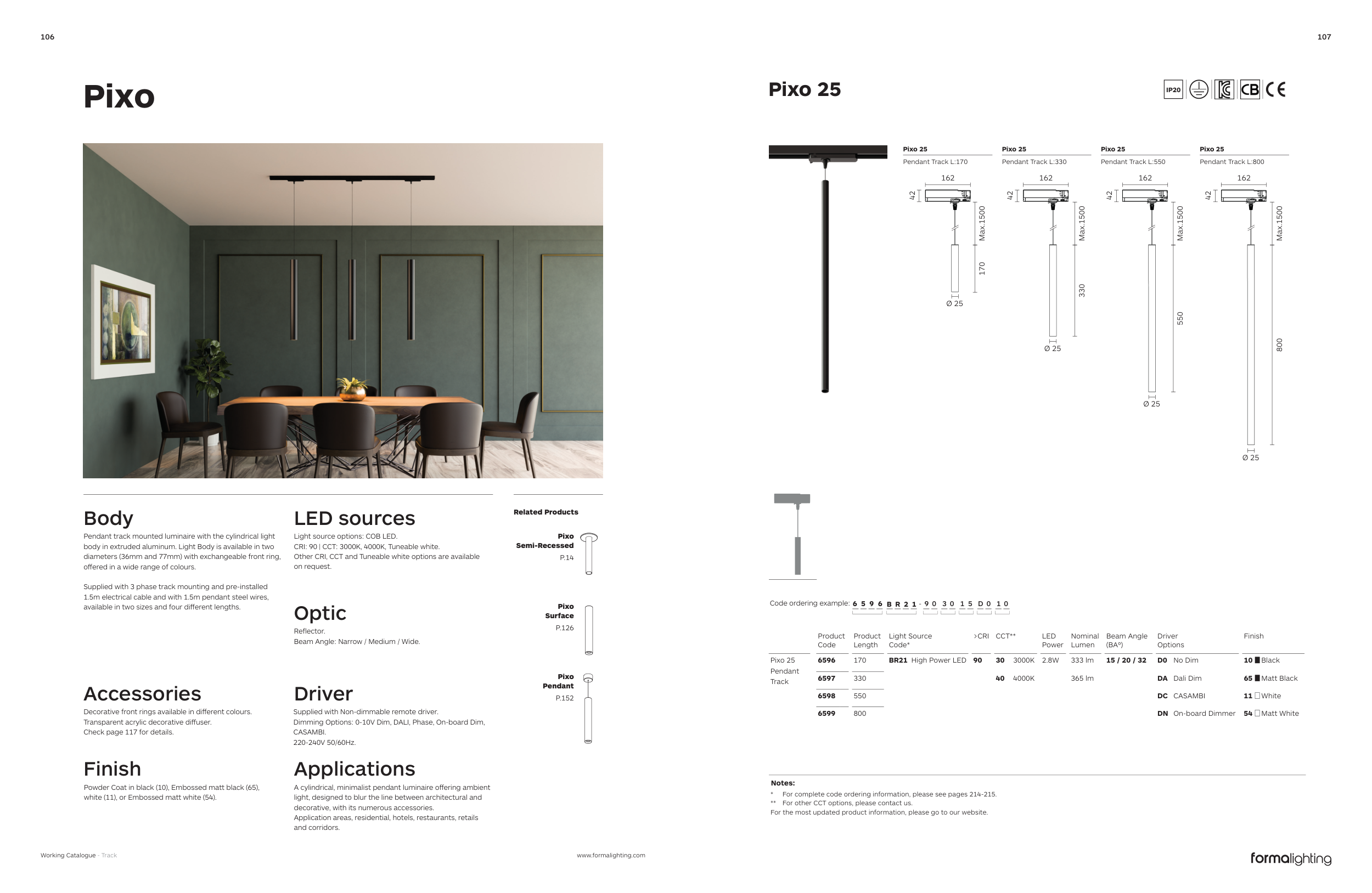

Pendant track mounted luminaire with the cylindrical light
body in extruded aluminum. Light Body is available in two
diameters (36mm and 77mm) with exchangeable front ring,
offered in a wide range of colours.
Supplied with 3 phase track mounting and pre-installed
1.5m electrical cable and with 1.5m pendant steel wires,
available in two sizes and four different lengths.
Pixo
Pixo
Semi-Recessed
P.14
Pixo
Surface
P.126
Pixo
Pendant
P.152
Light source options: COB LED.
CRI: 90 | CCT: 3000K, 4000K, Tuneable white.
Other CRI, CCT and Tuneable white options are available
on request.
Reflector.
Beam Angle: Narrow / Medium / Wide.
Supplied with Non-dimmable remote driver.
Dimming Options: 0-10V Dim, DALI, Phase, On-board Dim,
CASAMBI.
220-240V 50/60Hz.
For the most updated product information, please go to our website.
Product
Code
Product
Length
Light Source
Code*
>CRI
CCT**
LED
Power
Nominal
Lumen
Beam Angle
(BAº)
Driver
Options
Finish
Pixo 25
Pendant
Track
6596
170
BR21 High Power LED
90
30
3000K
2.8W
333 lm
15 / 20 / 32
D0
No Dim
10
Black
6597
330
40
4000K
365 lm
DA Dali Dim
65
Matt Black
6598
550
DC CASAMBI
11
White
6599
800
DN On-board Dimmer
54
Matt White
-
6 5 9 6 B R 2 1
9 0
3 0
1 5 D 0 1 0
Code ordering example:
Pixo 25
IP20
Pixo 25
Pixo 25
Pixo 25
Pixo 25
Pendant Track L:170
Pendant Track L:330
Pendant Track L:550
Pendant Track L:800
162
42
Max.1500
170
Ø 25
162
42
Max.1500
330
Ø 25
162
42
Max.1500
550
Ø 25
162
42
Max.1500
800
Ø 25
