Notes:
*
For complete code ordering information, please see pages 214-215.
** For other CCT options, please contact us.
Related Products
Body
Optic
Applications
LED sources
Finish
Driver
Accessories
- Recessed
Provides a visually comfortable, energy-efficient general
lighting solution with uniform spread. Its IP44 rating makes
it ideal for bathroom applications.
Application areas: offices, corridors, hospitals, hotels.
Supplied with non-dimmable remote driver.
Dimming Options: 0-10V Dim, DALI, Phase, CASAMBI.
220-240V 50/60Hz.
Lens in PMMA + secondary reflector in aluminum.
Beam Angle: Wide.
COB LED.
CRI: 90 | CCT: 3000K, 4000K.
Other CRI and CCT options available on request.
Powder coat in black (10), Embossed matt black (65),
white (11), or Embossed matt white (54).
N/A
Round-shaped mounting trim in cast aluminum with
springs for trim installation on a ceiling thickness of max.
25mm.
Luminaire body and heat dissipator for passive cooling in
extruded aluminum.
Secondary reflector in highly reflective pure aluminum.
Available in four different sizes.
Recessed 140 I 160 I 200 I 230

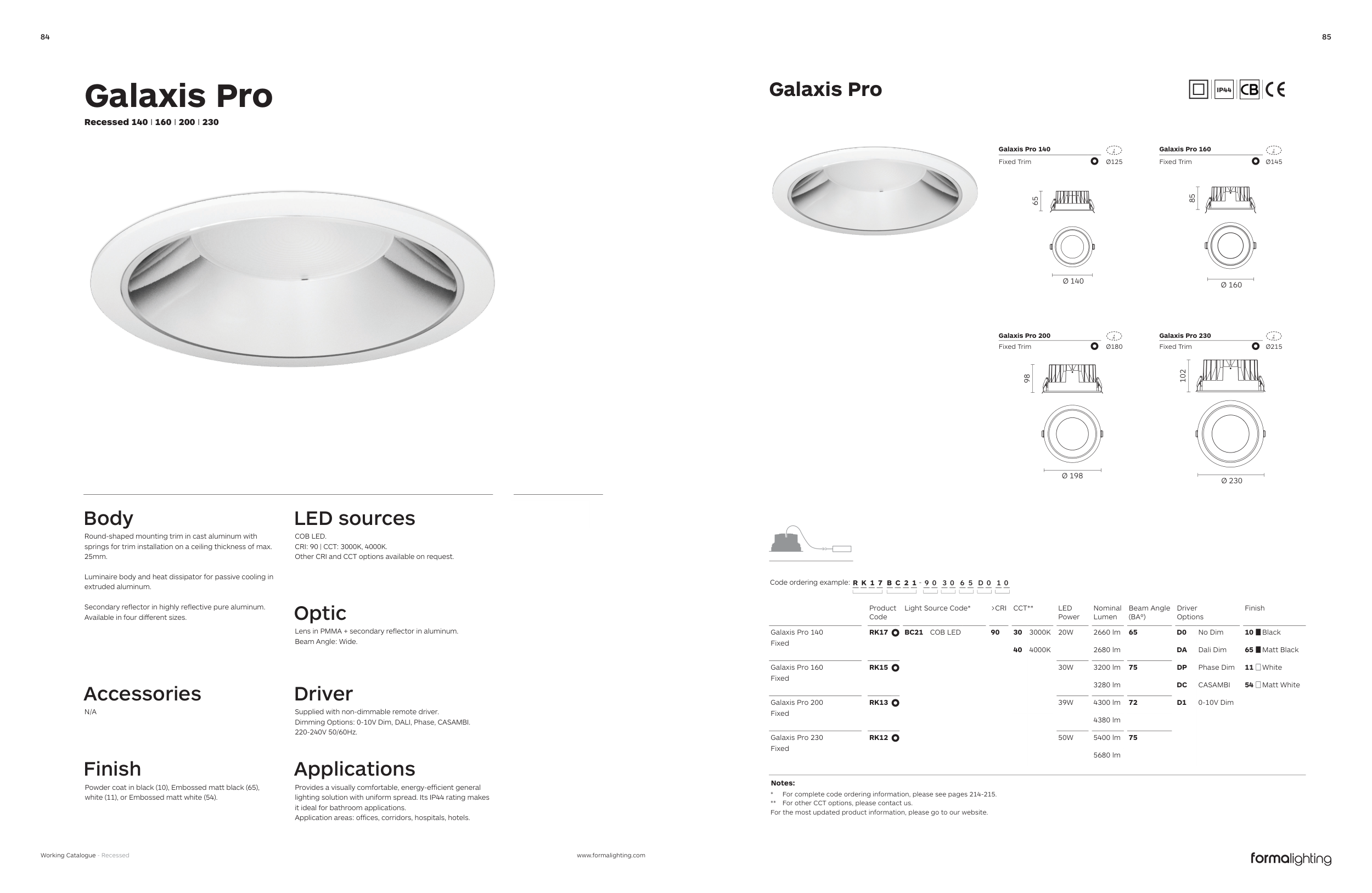

Galaxis Pro
For the most updated product information, please go to our website.
Product
Code
Light Source Code*
>CRI
CCT**
LED
Power
Nominal
Lumen
Beam Angle
(BAº)
Driver
Options
Finish
Galaxis Pro 140
Fixed
RK17
BC21
COB LED
90
30
3000K
20W
2660 lm
65
D0
No Dim
10
Black
40
4000K
2680 lm
DA
Dali Dim
65
Matt Black
Galaxis Pro 160
Fixed
RK15
30W
3200 lm
75
DP
Phase Dim
11
White
3280 lm
DC
CASAMBI
54
Matt White
Galaxis Pro 200
Fixed
RK13
39W
4300 lm
72
D1
0-10V Dim
4380 lm
Galaxis Pro 230
Fixed
RK12
50W
5400 lm
75
5680 lm
Galaxis Pro
IP44
Galaxis Pro 140
Galaxis Pro 160
Fixed Trim
Ø125
Fixed Trim
Ø145
Ø 140
65
85
Ø 160
Galaxis Pro 200
Galaxis Pro 230
Fixed Trim
Ø180
Fixed Trim
Ø215
98
Ø 198
Ø 230
102
-
R K 1 7 B C 2 1
9 0
3 0
6 5 D 0 1 0
Code ordering example:
