- Recessed
Round or square-shaped mounting trim in cast aluminum with brackets for trim installation on ceiling
thickness max. 32mm or trimless installation on ceiling thickness max. 25mm.
Luminaire body in cast aluminum with catch retainer for easy trim insertion /removal and integrated steel
sheet, inclusive of a tool-less locking point and safety cable.
For complete code ordering information, please see pages 214-215.

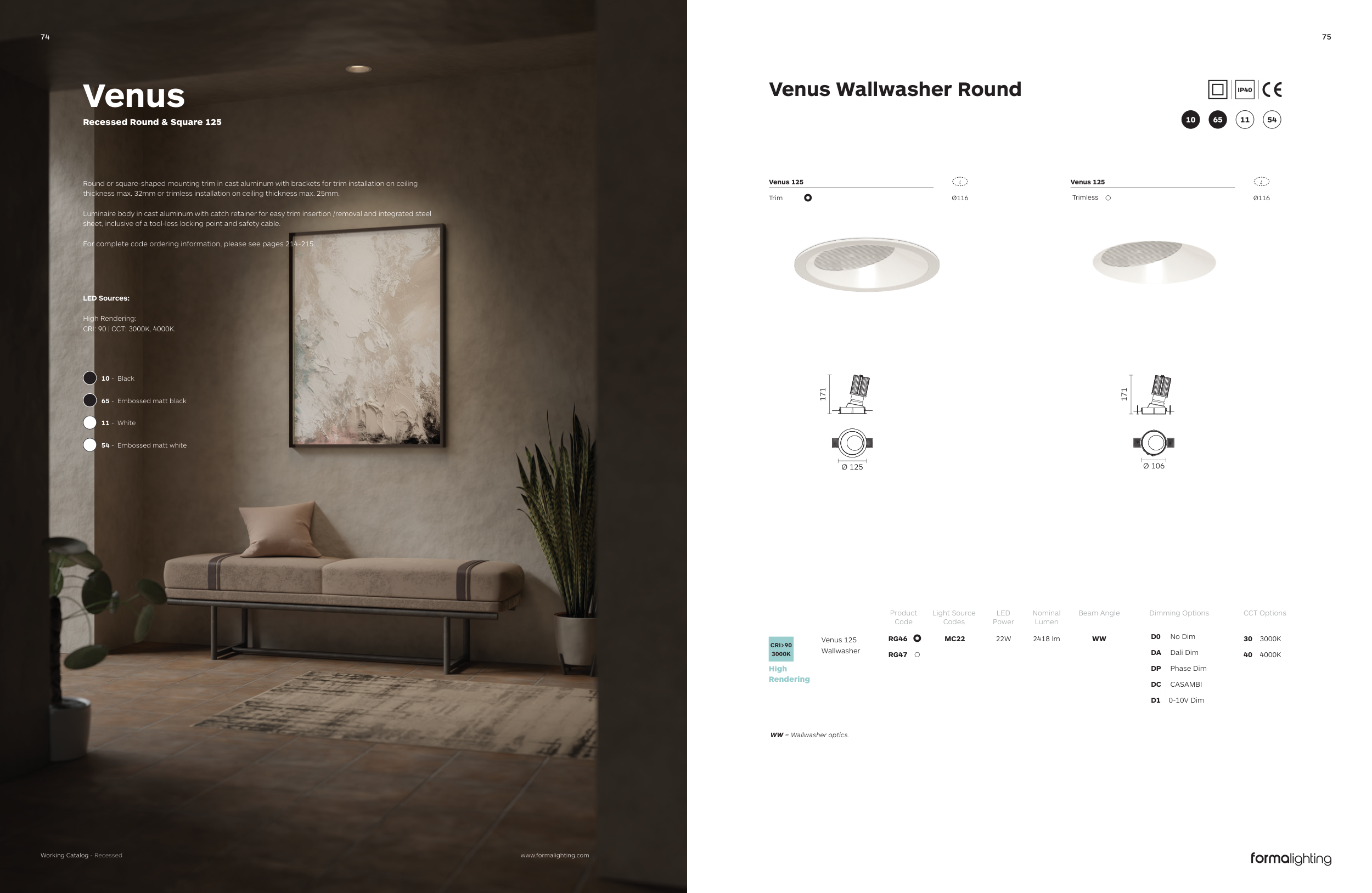

Recessed Round & Square 125
Venus
Venus Wallwasher Round
LED Sources:
High Rendering:
CRI: 90 | CCT: 3000K, 4000K.
10 - Black
65 - Embossed matt black
11 - White
54 - Embossed matt white
www.formalighting.com
74
Working Catalog - Recessed
Venus 125
Venus 125
Trim
Ø116
Trimless
Ø116
Ø 125
171
171
Ø 106
Dimming Options
D0
No Dim
DA
Dali Dim
DP
Phase Dim
DC
CASAMBI
D1
0-10V Dim
CCT Options
30
3000K
40
4000K
Product
Code
Light Source
Codes
LED
Power
Nominal
Lumen
Beam Angle
CRI>90
3000K
High
Rendering
Venus 125
Wallwasher
RG46
MC22
22W
2418 lm
WW
RG47
IP40
WW = Wallwasher optics.
