Notes:
*
For complete code ordering information, please see pages 214-215.
** For other CCT options, please contact us.
For related accessories, please see pages 88-89.
For the most updated product information, please go to our website.
Related Products
Body
Optic
Applications
LED sources
Finish
Driver
Accessories
- Recessed
Outstanding lighting fixture. Occhio Pin provides a
consistent ceiling appearance whilst the Occhio Slot
provides the maximum adjustment in this type of small
fixture.
Application areas: bathrooms, residential, museums, retail,
hotels.
Supplied with non-dimmable remote driver.
Dimming Options: 0-10V Dim, DALI, Phase, CASAMBI.
220-240V 50/60Hz.
Reflector.
Beam Angle: Narrow / Medium / Wide.
Light source options: COB LED. Retrofit.
CRI: 90 | CCT: 3000K, 4000K.
Other CRI and CCT options available on request.
Powder coat in black (10), Embossed matt black (65),
white (11), Embossed matt white (54) or grey (75).
Occhio 65: Honeycomb louvre.
Occhio 87: Coloured filters, linear spread, honeycomb
louvre, protective recessed ring, protective ring.
Check page 89 for details.
Round-shaped mounting trim in cast aluminum with
brackets for trim installation on a ceiling thickness max.
20mm.
Light body in cast aluminum. Available in two different
designs, Pin and Slot.
Available in IP44 version.
Designed with deep regressed lamp position for glare-free
comfort. Adjustable version tiltable vertically 0°-35°.
Venus
Wallwasher
Recessed
P.74-77
Aqualuce
Recessed
P.86
Recessed 65 I 87

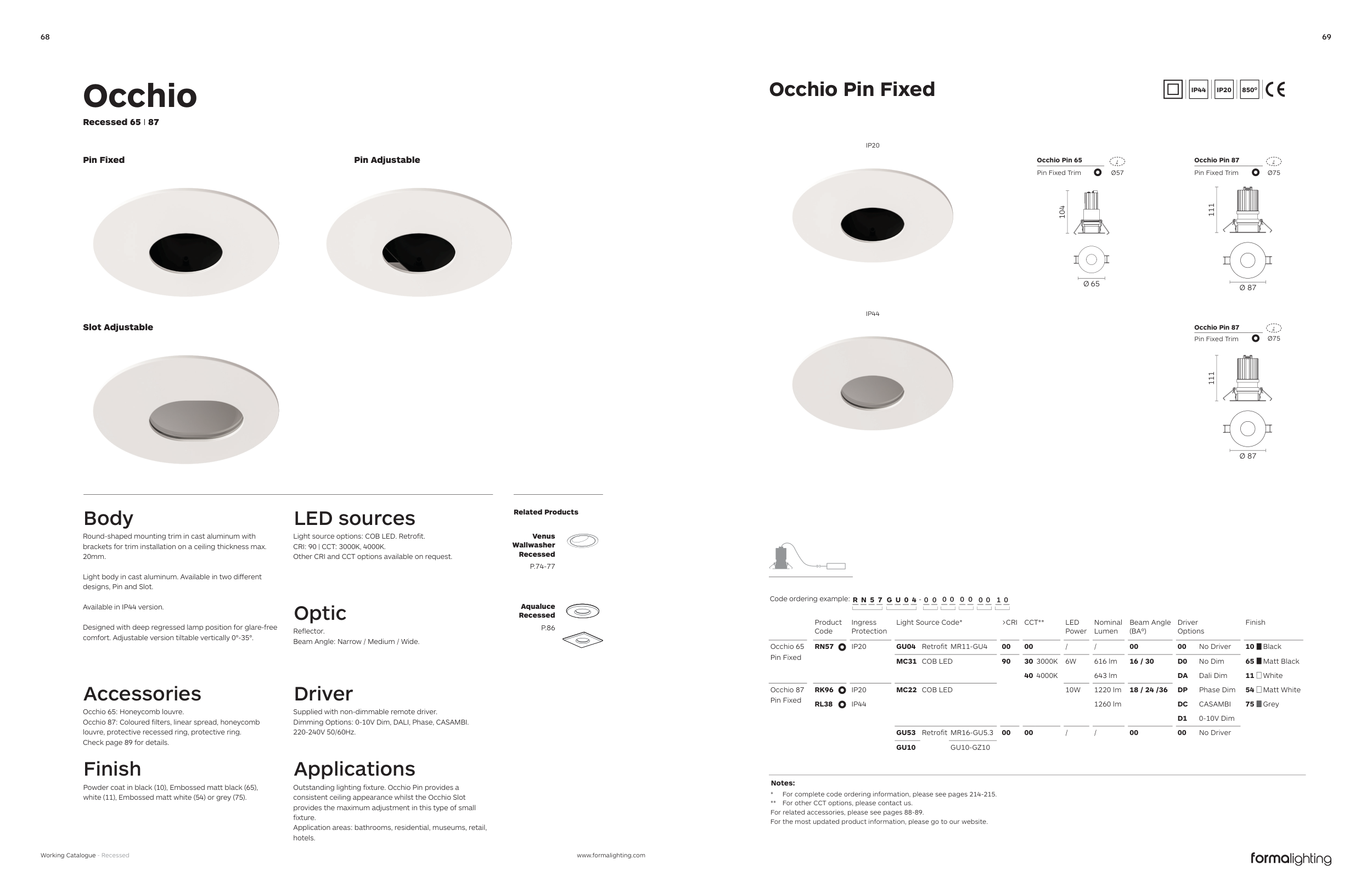

Occhio
Slot Adjustable
Pin Adjustable
Pin Fixed
Occhio Pin Fixed
IP44
IP20
850O
IP20
Occhio Pin 65
Occhio Pin 87
Pin Fixed Trim
Ø57
Pin Fixed Trim
Ø75
Ø 65
104
111
Ø 87
IP44
Occhio Pin 87
Pin Fixed Trim
Ø75
111
Ø 87
Product
Code
Ingress
Protection
Light Source Code*
>CRI
CCT**
LED
Power
Nominal
Lumen
Beam Angle
(BAº)
Driver
Options
Finish
Occhio 65
Pin Fixed
RN57
IP20
GU04
Retrofit MR11-GU4
00
00
/
/
00
00
No Driver
10
Black
MC31 COB LED
90
30 3000K
6W
616 lm
16 / 30
D0
No Dim
65
Matt Black
40 4000K
643 lm
DA
Dali Dim
11
White
Occhio 87
Pin Fixed
RK96
IP20
MC22 COB LED
10W
1220 lm
18 / 24 /36
DP
Phase Dim
54
Matt White
RL38
IP44
1260 lm
DC
CASAMBI
75
Grey
D1
0-10V Dim
GU53
Retrofit MR16-GU5.3
00
00
/
/
00
00
No Driver
GU10
GU10-GZ10
-
R N 5 7 G U 0 4
0 0 0 0
0 0
0 0
1 0
Code ordering example:
