Notes:
*
For complete code ordering information, please see pages 214-215.
** For other CCT options, please contact us.
For the most updated product information, please go to our website.
Related Products
Body
Optic
Applications
LED sources
Finish
Driver
Accessories
- Recessed
For related accessories, please see pages 61.
Recessed mounted luminaires with deep recessed with dark
reflector design offer excellent glare control to provide am-
bient or accent lighting.
Application areas: High-end residential, hospitality, corri-
dors.
Remote driver 220-240VAC included.
Diming options: 0-10V, DALI, Phase, Casambi.
220-240V 50/60Hz.
Beam angle: Narrow / Medium / Wide.
PMMA lens with reflector.
Chrom, Sanded white & Black Coated Reflector.
COB
CRI:90 | RA > 90 | CCT: 3000K, 4000K
3-Step MacAdam
Other CRI and CCT options are available on request.
Tool-free interchangeable Honeycomb, Round, Oval and
Square Pin Hole covers.
Check page 61 for details.
Optica Series offers excellent control and provides high
visual comfort, thanks to the deep recessed and double
optical system. The primary optical system, made from a
reflector on the LED, generates a beam angle of 46°, 40°,
33°, 22° and 18°. The secondary optical system consists of
a dark anti-glare reflector, this results pure light without
noticing the light source or glare.
Optica series are fully adjustable 0-25° available in 3 sizes,
both round and square, trim and trimless.
Following Formalighting’s Eco Design philosophy Optica
offers tool-free optical accessories site changeable options.

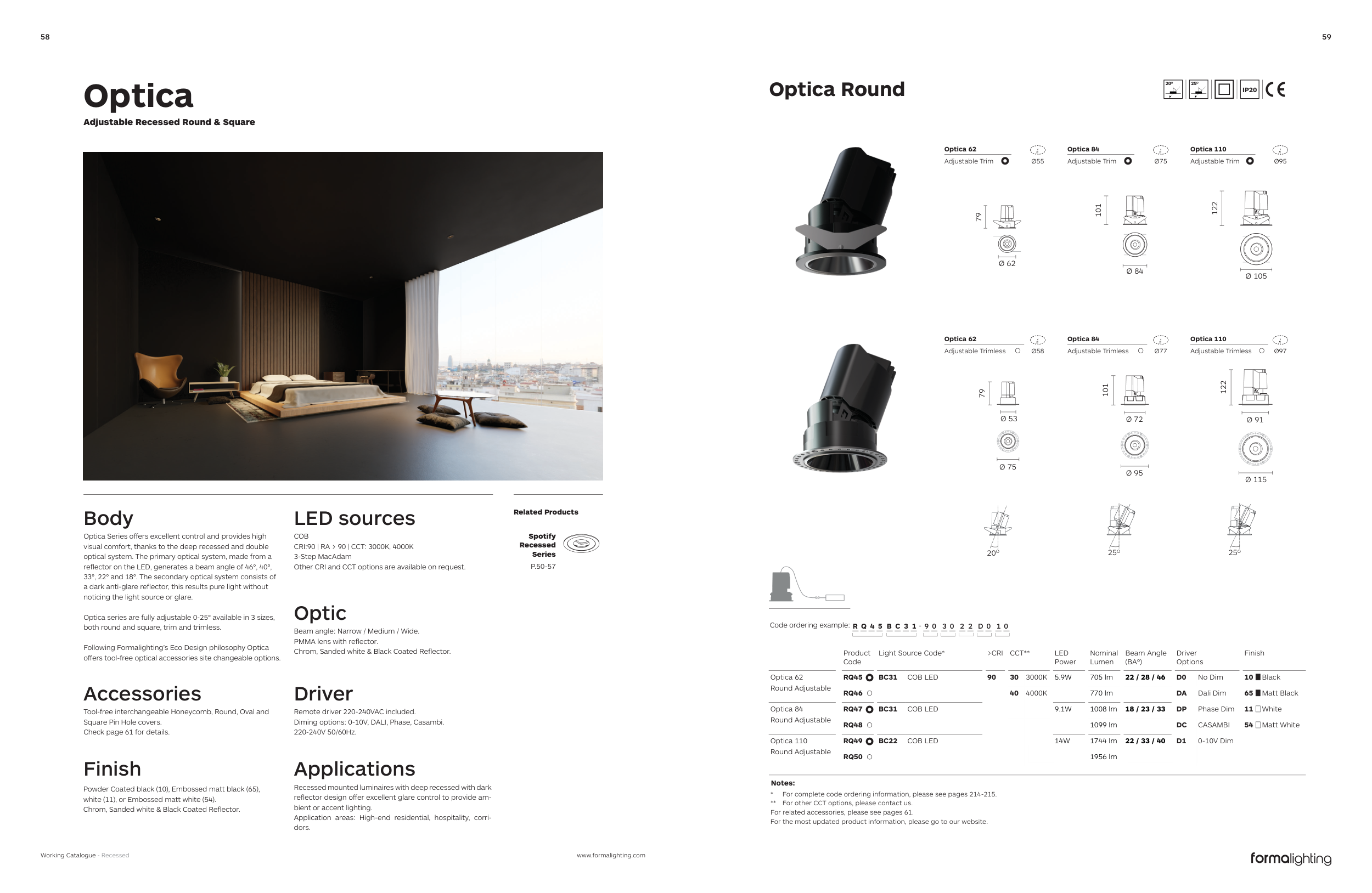

Optica
Powder Coated black (10), Embossed matt black (65),
white (11), or Embossed matt white (54).
Chrom, Sanded white & Black Coated Reflector.
Adjustable Recessed Round & Square
Spotify
Recessed
Series
P.50-57
20O
25O
IP20
Optica Round
Optica 62
Optica 84
Optica 110
Adjustable Trim
Ø55
Adjustable Trim
Ø75
Adjustable Trim
Ø95
79
Ø 62
Ø 84
101
122
Ø 105
Optica 62
Optica 84
Optica 110
Adjustable Trimless
Ø58
Adjustable Trimless
Ø77
Adjustable Trimless
Ø97
Ø 75
Ø 53
79
101
Ø 95
Ø 72
122
Ø 91
Ø 115
20O
25O
25O
Product
Code
Light Source Code*
>CRI
CCT**
LED
Power
Nominal
Lumen
Beam Angle
(BAº)
Driver
Options
Finish
Optica 62
Round Adjustable
RQ45
BC31
COB LED
90
30
3000K
5.9W
705 lm
22 / 28 / 46
D0
No Dim
10
Black
RQ46
40
4000K
770 lm
DA
Dali Dim
65
Matt Black
Optica 84
Round Adjustable
RQ47
BC31
COB LED
9.1W
1008 lm
18 / 23 / 33
DP
Phase Dim
11
White
RQ48
1099 lm
DC
CASAMBI
54
Matt White
Optica 110
Round Adjustable
RQ49
BC22
COB LED
14W
1744 lm
22 / 33 / 40
D1
0-10V Dim
RQ50
1956 lm
-
R Q 4 5 B C 3 1
9 0
3 0
2 2 D 0 1 0
Code ordering example:
