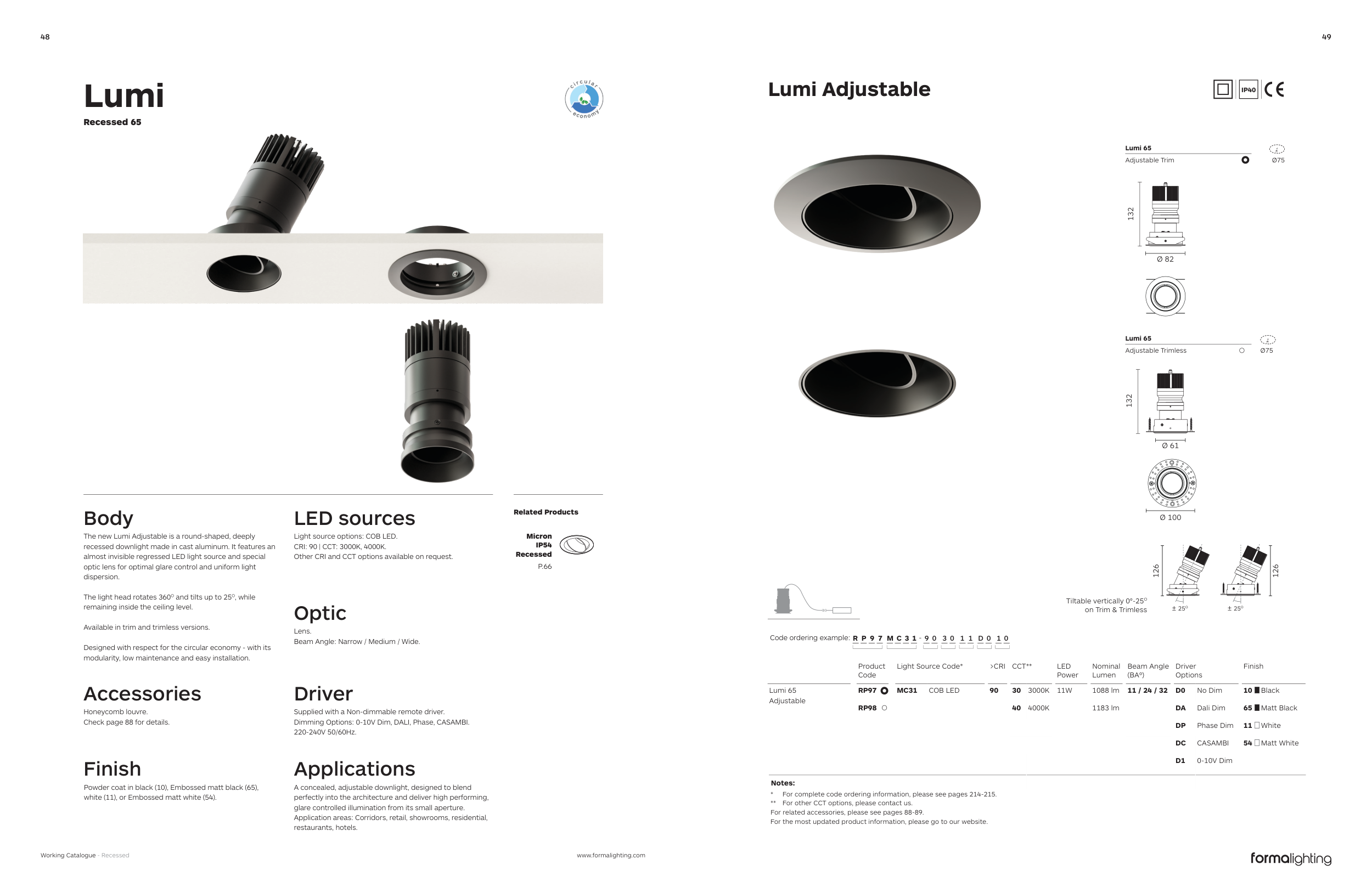

Working Catalogue
www.formalighting.com
48
49
Notes:
*
For complete code ordering information, please see pages 214-215.
** For other CCT options, please contact us.
For related accessories, please see pages 88-89.
For the most updated product information, please go to our website.
Related Products
Body
Optic
Applications
LED sources
Finish
Driver
Accessories
- Recessed
A concealed, adjustable downlight, designed to blend
perfectly into the architecture and deliver high performing,
glare controlled illumination from its small aperture.
Application areas: Corridors, retail, showrooms, residential,
restaurants, hotels.
Supplied with a Non-dimmable remote driver.
Dimming Options: 0-10V Dim, DALI, Phase, CASAMBI.
220-240V 50/60Hz.
Lens.
Beam Angle: Narrow / Medium / Wide.
Light source options: COB LED.
CRI: 90 | CCT: 3000K, 4000K.
Other CRI and CCT options available on request.
Powder coat in black (10), Embossed matt black (65),
white (11), or Embossed matt white (54).
Honeycomb louvre.
Check page 88 for details.
The new Lumi Adjustable is a round-shaped, deeply
recessed downlight made in cast aluminum. It features an
almost invisible regressed LED light source and special
optic lens for optimal glare control and uniform light
dispersion.
The light head rotates 360O and tilts up to 25O, while
remaining inside the ceiling level.
Available in trim and trimless versions.
Designed with respect for the circular economy - with its
modularity, low maintenance and easy installation.
Recessed 65
Lumi
Micron
IP54
Recessed
P.66
IP40
Lumi Adjustable
Lumi 65
Adjustable Trim
Ø75
Ø 82
132
Lumi 65
Adjustable Trimless
Ø75
Ø 61
Ø 100
132
Product
Code
Light Source Code*
>CRI
CCT**
LED
Power
Nominal
Lumen
Beam Angle
(BAº)
Driver
Options
Finish
Lumi 65
Adjustable
RP97
MC31
COB LED
90
30
3000K
11W
1088 lm
11 / 24 / 32
D0
No Dim
10
Black
RP98
40
4000K
1183 lm
DA
Dali Dim
65
Matt Black
DP
Phase Dim
11
White
DC
CASAMBI
54
Matt White
D1
0-10V Dim
Tiltable vertically 0°-25O
on Trim & Trimless
± 25O
126
± 25O
126
-
R P 9 7 M C 3 1
9 0
3 0
1 1 D 0 1 0
Code ordering example:
