Notes:
*
For complete code ordering information, please see pages 214-215.
** For other CCT options, please contact us.
For related accessories, please see pages 88-89.
For the most updated product information, please go to our website.
Related Products
Body
Optic
Applications
LED sources
Finish
Driver
Accessories
- Recessed

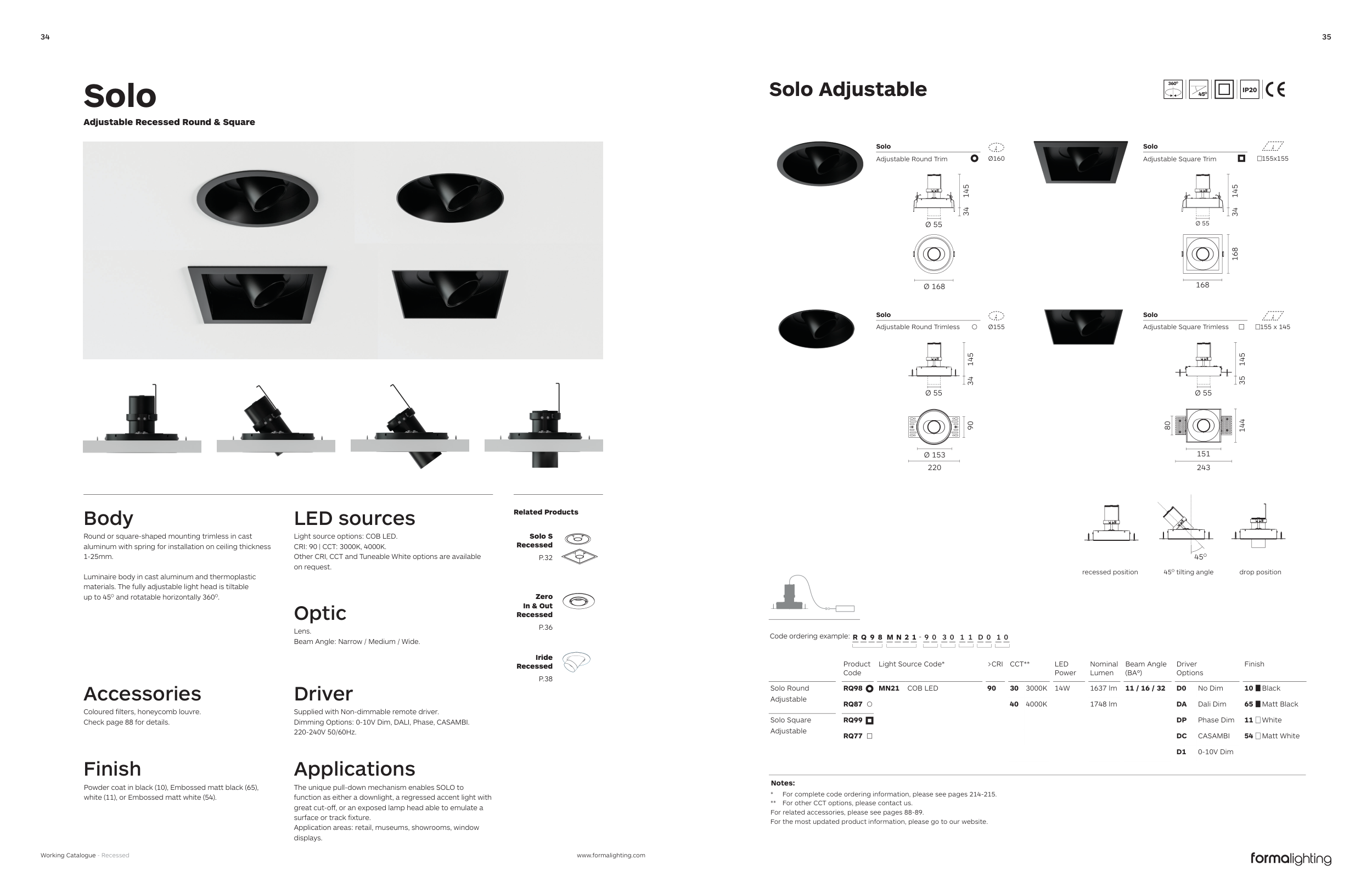

Adjustable Recessed Round & Square
Solo
360O
45O
IP20
Solo Adjustable
Product
Code
Light Source Code*
>CRI
CCT**
LED
Power
Nominal
Lumen
Beam Angle
(BAº)
Driver
Options
Finish
Solo Round
Adjustable
RQ98
MN21
COB LED
90
30
3000K
14W
1637 lm
11 / 16 / 32
D0
No Dim
10
Black
RQ87
40
4000K
1748 lm
DA
Dali Dim
65
Matt Black
Solo Square
Adjustable
RQ99
DP
Phase Dim
11
White
RQ77
DC
CASAMBI
54
Matt White
D1
0-10V Dim
-
R Q 9 8 M N 2 1
9 0
3 0
1 1 D 0 1 0
Code ordering example:
The unique pull-down mechanism enables SOLO to
function as either a downlight, a regressed accent light with
great cut-off, or an exposed lamp head able to emulate a
surface or track fixture.
Application areas: retail, museums, showrooms, window
displays.
Coloured filters, honeycomb louvre.
Check page 88 for details.
Powder coat in black (10), Embossed matt black (65),
white (11), or Embossed matt white (54).
Supplied with Non-dimmable remote driver.
Dimming Options: 0-10V Dim, DALI, Phase, CASAMBI.
220-240V 50/60Hz.
Lens.
Beam Angle: Narrow / Medium / Wide.
Light source options: COB LED.
CRI: 90 | CCT: 3000K, 4000K.
Other CRI, CCT and Tuneable White options are available
on request.
Round or square-shaped mounting trimless in cast
aluminum with spring for installation on ceiling thickness
1-25mm.
Luminaire body in cast aluminum and thermoplastic
materials. The fully adjustable light head is tiltable
up to 45O and rotatable horizontally 360O.
Solo S
Recessed
P.32
Zero
In & Out
Recessed
P.36
Iride
Recessed
P.38
Solo
Solo
Adjustable Round Trim
Ø160
Adjustable Square Trim
155x155
145
34
Ø 55
Ø 168
145
34
Ø 55
168
168
Solo
Solo
Adjustable Round Trimless
Ø155
Adjustable Square Trimless
155 x 145
Ø 153
220
90
Ø 55
145
34
Ø 55
145
35
151
243
80
144
45O
45O tilting angle
drop position
recessed position
