Notes:
*
For complete code ordering information, please see pages 214-215.
** For other CCT options, please contact us.
For related accessories, please see pages 88-89.
For the most updated product information, please go to our website.
Related Products
Body
Optic
Applications
LED sources
Finish
Driver
Accessories
- Recessed
Coloured filters, honeycomb louvre.
Check page 88 for details.
Powder coat in black (10), Embossed matt black (65),
white (11), or Embossed matt white (54).
A fully adjustable light head designed to accommodate any
recessed lighting application and allow lamp aiming while
power is on.
Application areas: retail, shopping centers, corridors,
window display.
Supplied with non-dimmable remote driver.
Dimming Options: 0-10V Dim, DALI, Phase, CASAMBI.
220-240V 50/60Hz.
Lens.
Beam Angle: Narrow / Medium / Wide.
Light source options: COB LED, Retrofit.
CRI: 90 | CCT: 3000K, 4000K.
Other CRI and CCT options and Tuneable White version
available on request.
A square or rectangular-shaped mounting trim in cast
aluminum with spring for trim installation or brackets for
trimless installation on a ceiling thickness 6-15mm.
Luminaire body inclusive of snoot in cast aluminum.
Easy relamping via removable front ring by snap-in catch
action.
Available in a configuration of 1, 2 or 3 LED light heads,
extending the trim size and shape from square to
rectangular. Tiltable in two directions up to 25°.

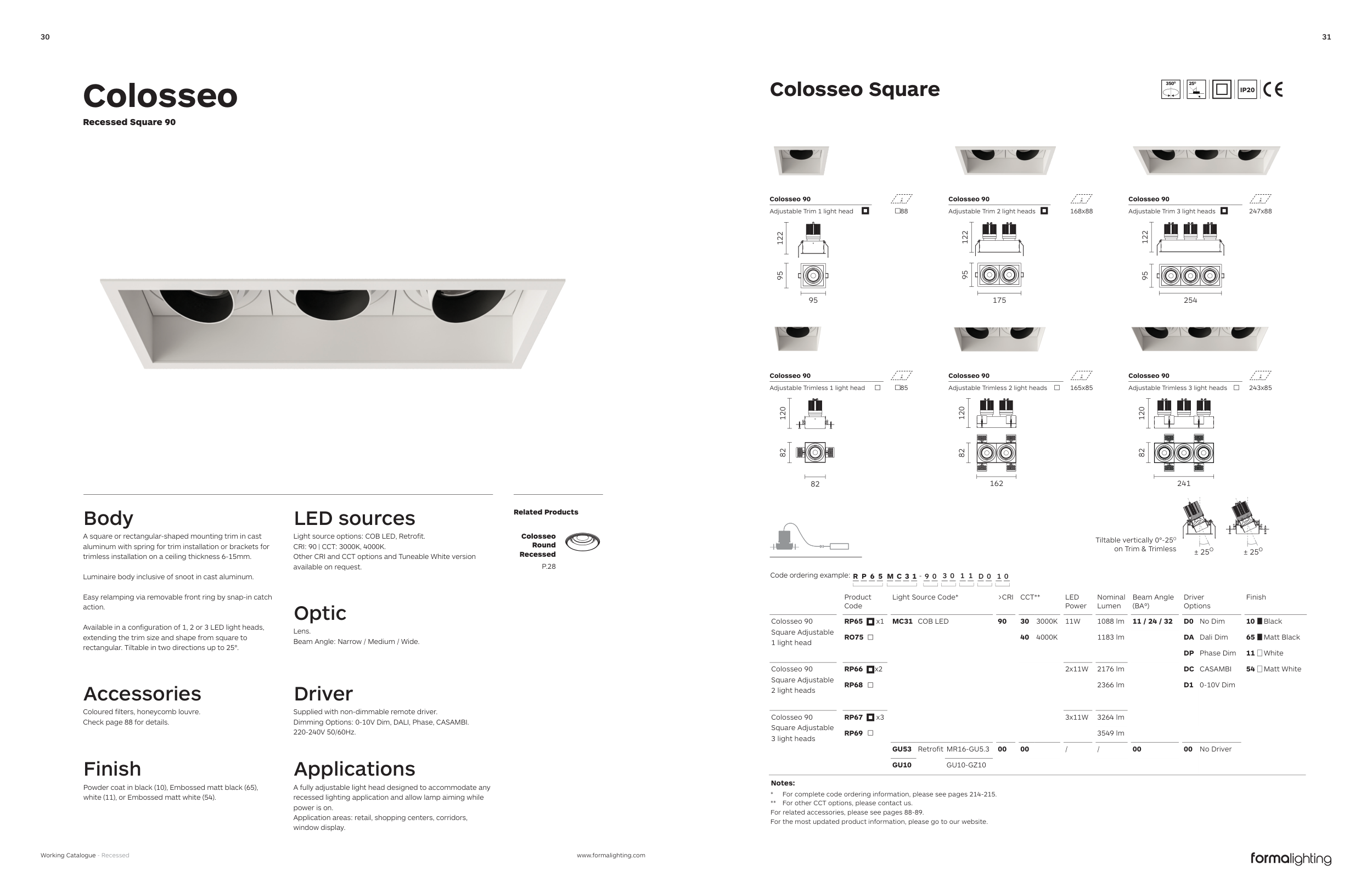

Recessed Square 90
Colosseo
Colosseo
Round
Recessed
P.28
Colosseo 90
Colosseo 90
Colosseo 90
Adjustable Trim 1 light head
88
Adjustable Trim 2 light heads
168x88
Adjustable Trim 3 light heads
247x88
122
95
95
122
95
175
122
95
254
Colosseo 90
Colosseo 90
Colosseo 90
Adjustable Trimless 1 light head
85
Adjustable Trimless 2 light heads
165x85
Adjustable Trimless 3 light heads
243x85
120
82
82
120
82
162
120
82
241
± 25O
± 25O
Colosseo Square
Product
Code
Light Source Code*
>CRI
CCT**
LED
Power
Nominal
Lumen
Beam Angle
(BAº)
Driver
Options
Finish
Colosseo 90
Square Adjustable
1 light head
RP65
x1
MC31 COB LED
90
30
3000K
11W
1088 lm
11 / 24 / 32
D0
No Dim
10
Black
RO75
40
4000K
1183 lm
DA Dali Dim
65
Matt Black
DP
Phase Dim
11
White
Colosseo 90
Square Adjustable
2 light heads
RP66
x2
2x11W
2176 lm
DC CASAMBI
54
Matt White
RP68
2366 lm
D1
0-10V Dim
Colosseo 90
Square Adjustable
3 light heads
RP67
x3
3x11W
3264 lm
RP69
3549 lm
GU53
Retrofit MR16-GU5.3
00
00
/
/
00
00
No Driver
GU10
GU10-GZ10
Tiltable vertically 0°-25O
on Trim & Trimless
-
R P 6 5 M C 3 1
9 0
3 0
1 1 D 0 1 0
Code ordering example:
350O
25O
IP20
