Notes:
*
For complete code ordering information, please see pages 214-215.
** For other CCT options, please contact us.
For the most updated product information, please go to our website.
Related Products
Body
Optic
Applications
LED sources
Finish
Driver
Accessories
- Recessed
WW = Wallwasher
Polaris 30
Wallwasher 1 Trim
140x36
Wallwasher 2 Trim
273x36
Wallwasher 3 Trim
406x36
79
149
45
282
415
70
51
Polaris 30
Wallwasher 1 Trimless
140x36
Wallwasher 2 Trimless
273x36
Wallwasher 3 Trimless
406x36
57
137
34
270
403
57
34

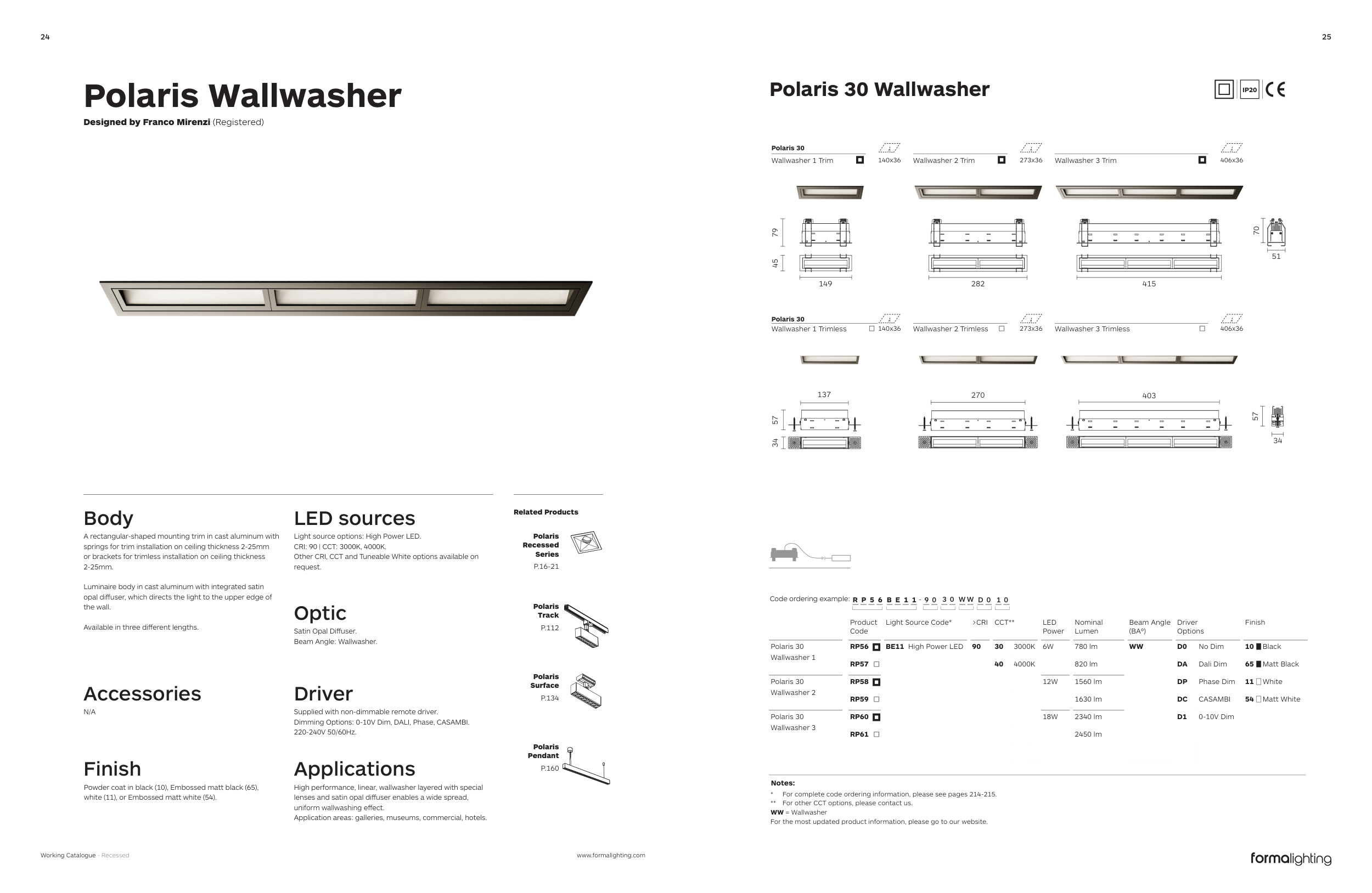

Polaris 30 Wallwasher
Product
Code
Light Source Code*
>CRI
CCT**
LED
Power
Nominal
Lumen
Beam Angle
(BAº)
Driver
Options
Finish
Polaris 30
Wallwasher 1
RP56
BE11 High Power LED
90
30
3000K
6W
780 lm
WW
D0
No Dim
10
Black
RP57
40
4000K
820 lm
DA
Dali Dim
65
Matt Black
Polaris 30
Wallwasher 2
RP58
12W
1560 lm
DP
Phase Dim
11
White
RP59
1630 lm
DC
CASAMBI
54
Matt White
Polaris 30
Wallwasher 3
RP60
18W
2340 lm
D1
0-10V Dim
RP61
2450 lm
N/A
Powder coat in black (10), Embossed matt black (65),
white (11), or Embossed matt white (54).
High performance, linear, wallwasher layered with special
lenses and satin opal diffuser enables a wide spread,
uniform wallwashing effect.
Application areas: galleries, museums, commercial, hotels.
Supplied with non-dimmable remote driver.
Dimming Options: 0-10V Dim, DALI, Phase, CASAMBI.
220-240V 50/60Hz.
Satin Opal Diffuser.
Beam Angle: Wallwasher.
Light source options: High Power LED.
CRI: 90 | CCT: 3000K, 4000K.
Other CRI, CCT and Tuneable White options available on
request.
A rectangular-shaped mounting trim in cast aluminum with
springs for trim installation on ceiling thickness 2-25mm
or brackets for trimless installation on ceiling thickness
2-25mm.
Luminaire body in cast aluminum with integrated satin
opal diffuser, which directs the light to the upper edge of
the wall.
Available in three different lengths.
Designed by Franco Mirenzi (Registered)
Polaris Wallwasher
-
R P 5 6 B E 1 1
9 0
3 0 W W D 0 1 0
Code ordering example:
Polaris
Recessed
Series
P.16-21
Polaris
Track
P.112
Polaris
Surface
P.134
Polaris
Pendant
P.160
IP20
