Working Catalogue
www.formalighting.com

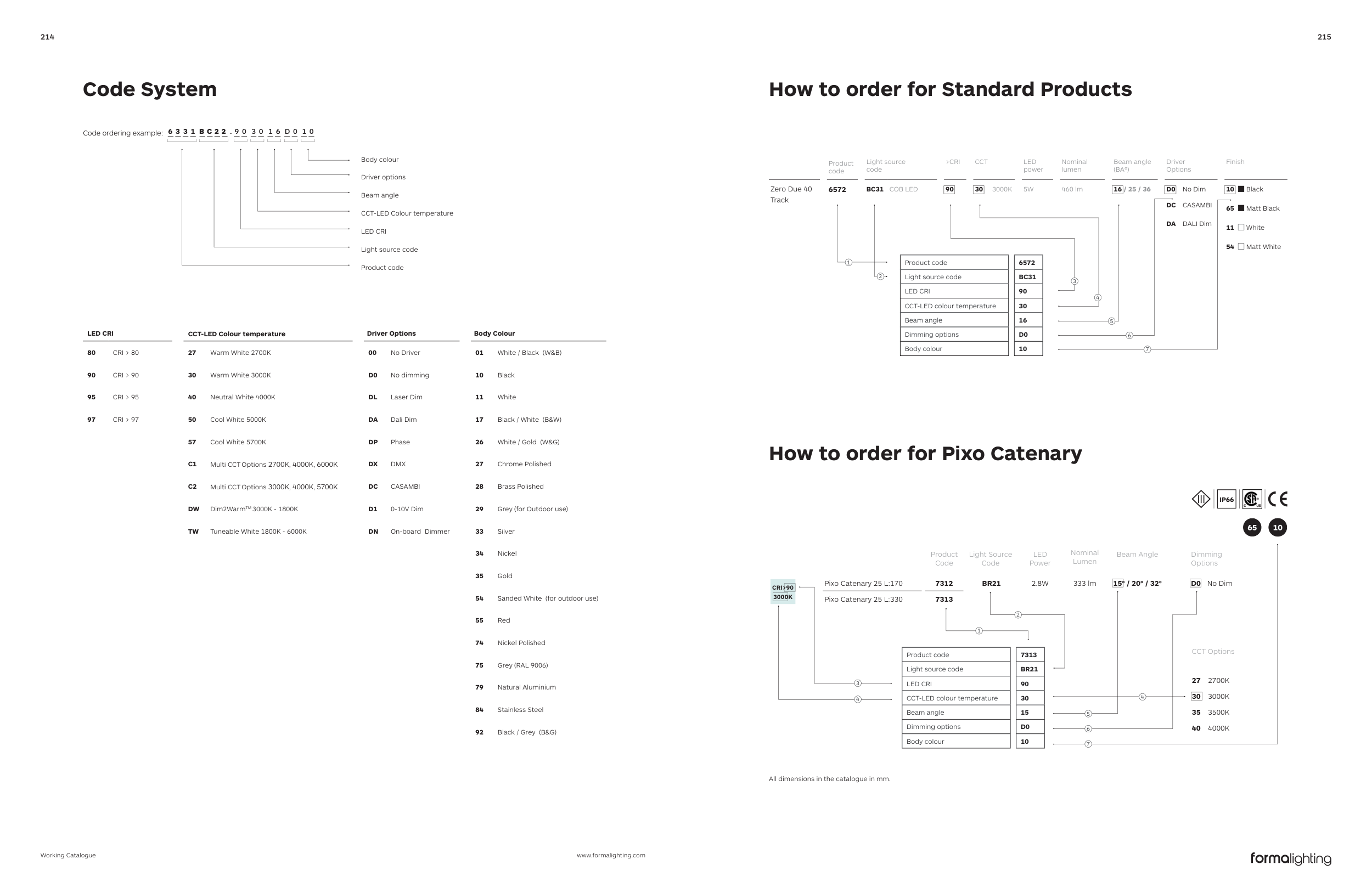

Code System
Code ordering example: -
6 3 3 1 B C 2 2
9 0 3 0 1 6 D 0 1 0
Body colour
Driver options
Beam angle
CCT-LED Colour temperature
LED CRI
Light source code
Product code
LED CRI
CCT-LED Colour temperature
Driver Options
Body Colour
80
CRI > 80
27
Warm White 2700K
00
No Driver
01
White / Black (W&B)
90
CRI > 90
30
Warm White 3000K
D0
No dimming
10
Black
95
CRI > 95
40
Neutral White 4000K
DL
Laser Dim
11
White
97
CRI > 97
50
Cool White 5000K
DA
Dali Dim
17
Black / White (B&W)
57
Cool White 5700K
DP
Phase
26
White / Gold (W&G)
C1
Multi CCT Options 2700K, 4000K, 6000K
DX
DMX
27
Chrome Polished
C2
Multi CCT Options 3000K, 4000K, 5700K
DC
CASAMBI
28
Brass Polished
DW
Dim2WarmTM 3000K - 1800K
D1
0-10V Dim
29
Grey (for Outdoor use)
TW
Tuneable White 1800K - 6000K
DN
On-board Dimmer
33
Silver
34
Nickel
35
Gold
54
Sanded White (for outdoor use)
55
Red
74
Nickel Polished
75
Grey (RAL 9006)
79
Natural Aluminium
84
Stainless Steel
92
Black / Grey (B&G)
Product
code
Light source
code
>CRI
CCT
LED
power
Nominal
lumen
Beam angle
(BAº)
Driver
Options
Finish
Zero Due 40
Track
6572
BC31
COB LED
90
30
3000K
5W
460 lm
16 / 25 / 36
D0
No Dim
10
Black
DC
CASAMBI
65
Matt Black
DA
DALI Dim
11
White
54
Matt White
Product code
6572
Light source code
BC31
LED CRI
90
CCT-LED colour temperature
30
Beam angle
16
Dimming options
D0
Body colour
10
1
2
3
4
5
6
7
How to order for Standard Products
Product code
7313
Light source code
BR21
LED CRI
90
CCT-LED colour temperature
30
Beam angle
15
Dimming options
D0
Body colour
10
1
2
3
4
5
6
7
Product
Code
Light Source
Code
LED
Power
Nominal
Lumen
Beam Angle
CRI>90
3000K
Pixo Catenary 25 L:170
7312
BR21
2.8W
333 lm
15° / 20° / 32°
Pixo Catenary 25 L:330
7313
CCT Options
27
2700K
30
3000K
35
3500K
40
4000K
Dimming
Options
D0
No Dim
IP66
4
All dimensions in the catalogue in mm.
How to order for Pixo Catenary
