Working Catalogue - Outdoor
www.formalighting.com
Related Products
Body
Optic
Applications
LED sources
Finish
Driver
Accessories
Notes:
*
For complete code ordering information, please see pages 214-215.
** For other CCT options, please contact us.

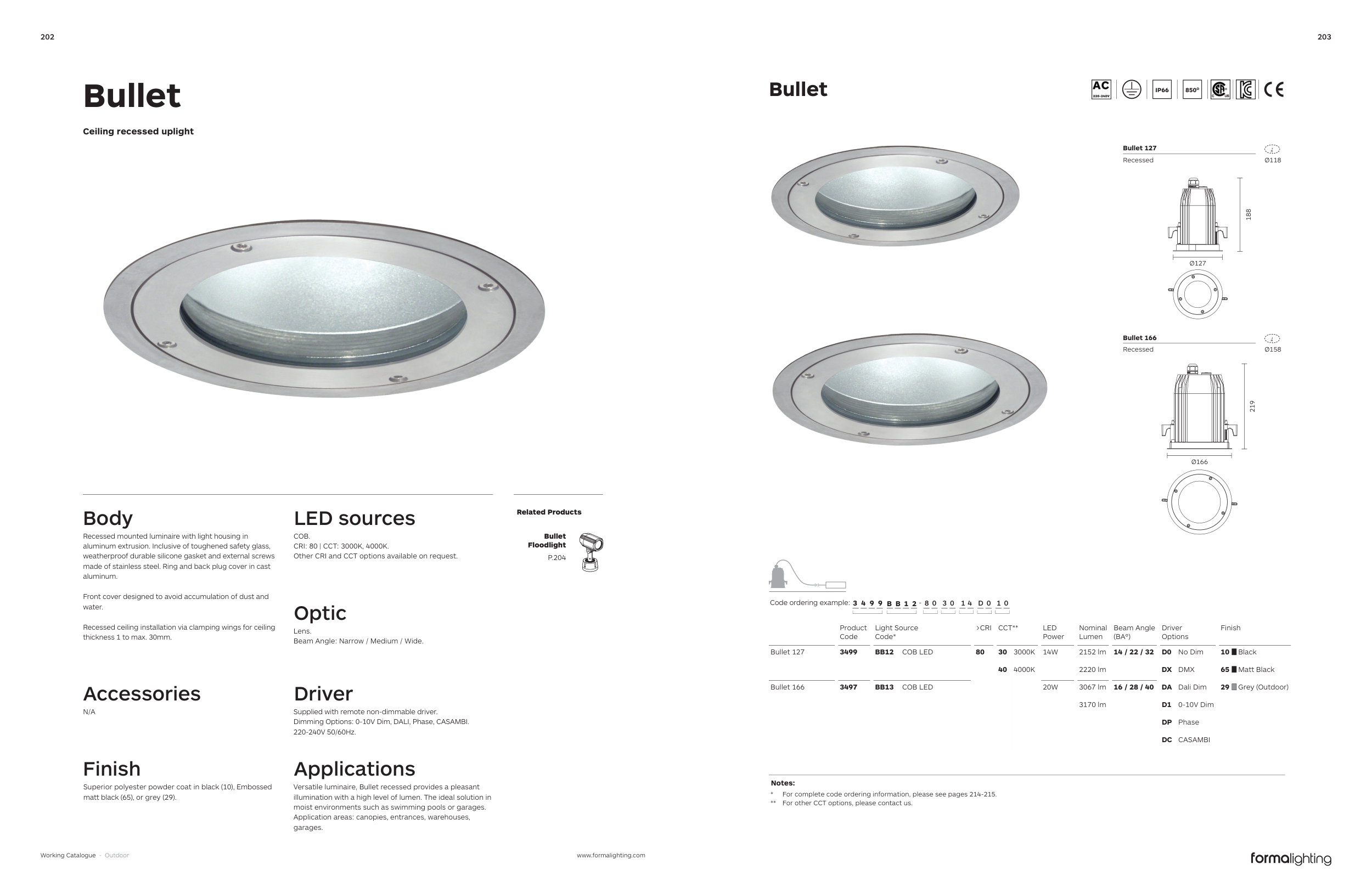

Bullet
Floodlight
P.204
Bullet
Ceiling recessed uplight
Lens.
Beam Angle: Narrow / Medium / Wide.
Recessed mounted luminaire with light housing in
aluminum extrusion. Inclusive of toughened safety glass,
weatherproof durable silicone gasket and external screws
made of stainless steel. Ring and back plug cover in cast
aluminum.
Front cover designed to avoid accumulation of dust and
water.
Recessed ceiling installation via clamping wings for ceiling
thickness 1 to max. 30mm.
COB.
CRI: 80 | CCT: 3000K, 4000K.
Other CRI and CCT options available on request.
Supplied with remote non-dimmable driver.
Dimming Options: 0-10V Dim, DALI, Phase, CASAMBI.
220-240V 50/60Hz.
N/A
Versatile luminaire, Bullet recessed provides a pleasant
illumination with a high level of lumen. The ideal solution in
moist environments such as swimming pools or garages.
Application areas: canopies, entrances, warehouses,
garages.
Superior polyester powder coat in black (10), Embossed
matt black (65), or grey (29).
Bullet
IP66
850O
Bullet 127
Recessed
Ø118
188
Ø127
Bullet 166
Recessed
Ø158
219
Ø166
Product
Code
Light Source
Code*
>CRI
CCT**
LED
Power
Nominal
Lumen
Beam Angle
(BAº)
Driver
Options
Finish
Bullet 127
3499
BB12
COB LED
80
30
3000K
14W
2152 lm
14 / 22 / 32
D0
No Dim
10
Black
40
4000K
2220 lm
DX
DMX
65
Matt Black
Bullet 166
3497
BB13
COB LED
20W
3067 lm
16 / 28 / 40
DA
Dali Dim
29
Grey (Outdoor)
3170 lm
D1
0-10V Dim
DP
Phase
DC
CASAMBI
-
3 4 9 9 B B 1 2
8 0
3 0
1 4
D 0 1 0
Code ordering example:
