200
201
Working Catalogue - Outdoor
www.formalighting.com
Related Products
Body
Optic
Applications
LED sources
Finish
Driver
Accessories
Notes:
*
For complete code ordering information, please see pages 214-215.
** For other CCT options, please contact us.
Superior Polyester powder coat in black (10), Embossed
matt black (65), grey (29) or Stainless Steel (84).
Application areas: Canopies, entrances, warehouses,
garages, facades, gardens, residential.
Remote power supply not included, to be ordered
separately.
Product operates on 24V DC Driver (IP67 Driver).
Lens.
Beam Angle: Narrow / Medium / Wide.
SMD LED
CRI: 90 | CCT: 3000K, 4000K.
Other CRI and CCT options available on request.
Logica is a round recessed outdoor ceiling lighting
featuring minimal glare and light dispersion, housing in
aluminum extrusion.
It integrates toughened safety glass and a weatherproof
long-lasting silicone gasket that guarantees durability and
excellent dust and water protection (IP66).
Easy installation via clamping wings for ceiling thickness 1
to max 30mm, with aluminum or stainless trim.

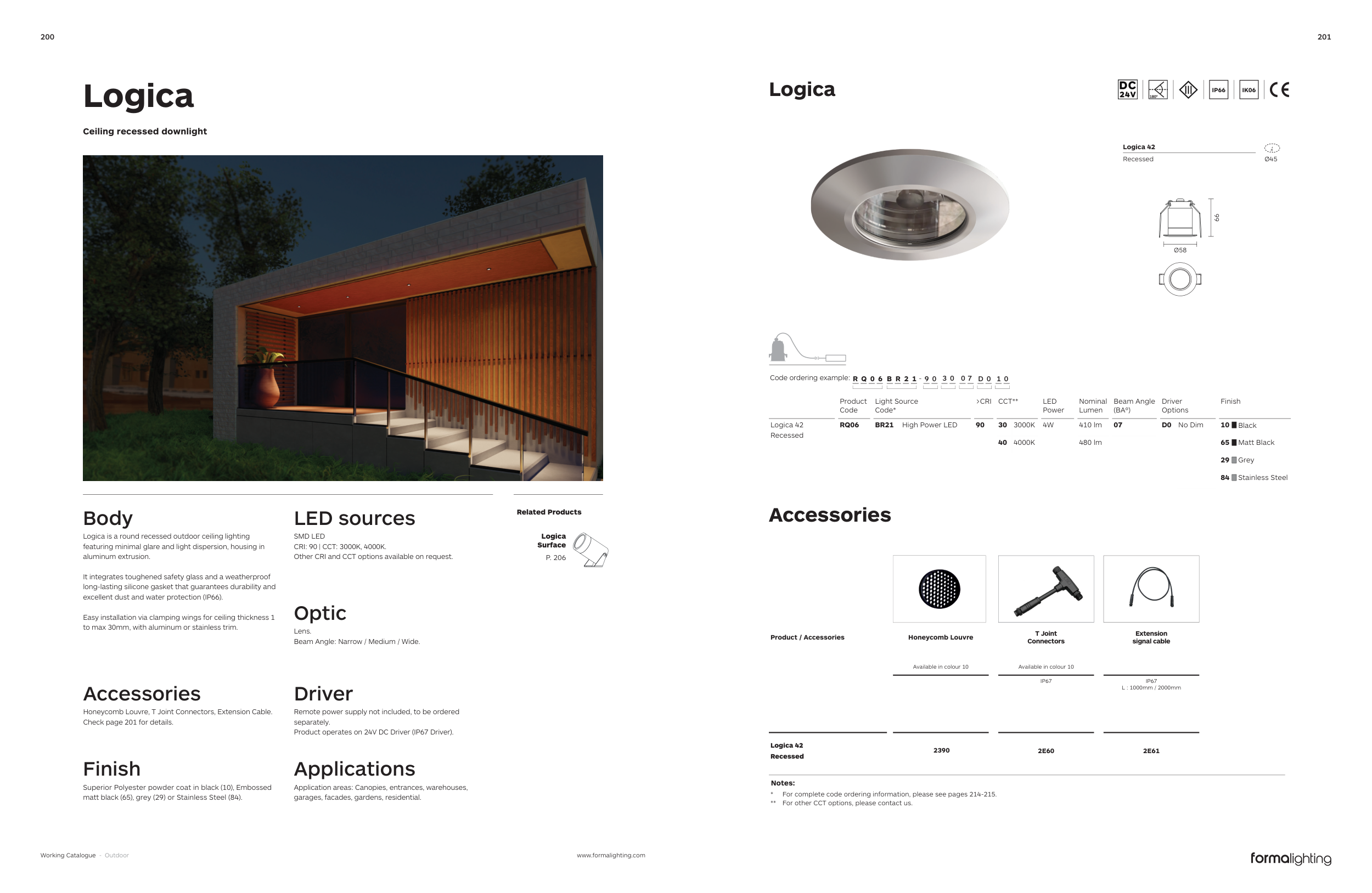

Logica
Ceiling recessed downlight
Logica
Logica 42
Recessed
Ø45
66
Ø58
Product
Code
Light Source
Code*
>CRI
CCT**
LED
Power
Nominal
Lumen
Beam Angle
(BAº)
Driver
Options
Finish
Logica 42
Recessed
RQ06
BR21
High Power LED
90
30
3000K
4W
410 lm
07
D0
No Dim
10
Black
40
4000K
480 lm
65
Matt Black
29
Grey
84
Stainless Steel
IP66
IK06
Product / Accessories
Honeycomb Louvre
T Joint
Connectors
Extension
signal cable
Available in colour 10
Available in colour 10
IP67
IP67
L : 1000mm / 2000mm
Logica 42
Recessed
2390
2E60
2E61
Accessories
Logica
Surface
P. 206
Honeycomb Louvre, T Joint Connectors, Extension Cable.
Check page 201 for details.
-
R Q 0 6 B R 2 1
9 0
3 0
0 7
D 0 1 0
Code ordering example:
