Working Catalogue - Outdoor
www.formalighting.com
Driver Options
Accessories
Product / Accessories
Louvre
Extension cable
Colours 10, 65
1000mm long
Cobra Pro IP66 Fixed
2C97
2D47
Cobra Pro IP66 Adjustable
* Please refer to the user manuals for further details.
1
Information in the chart above is related to 3000K LED.

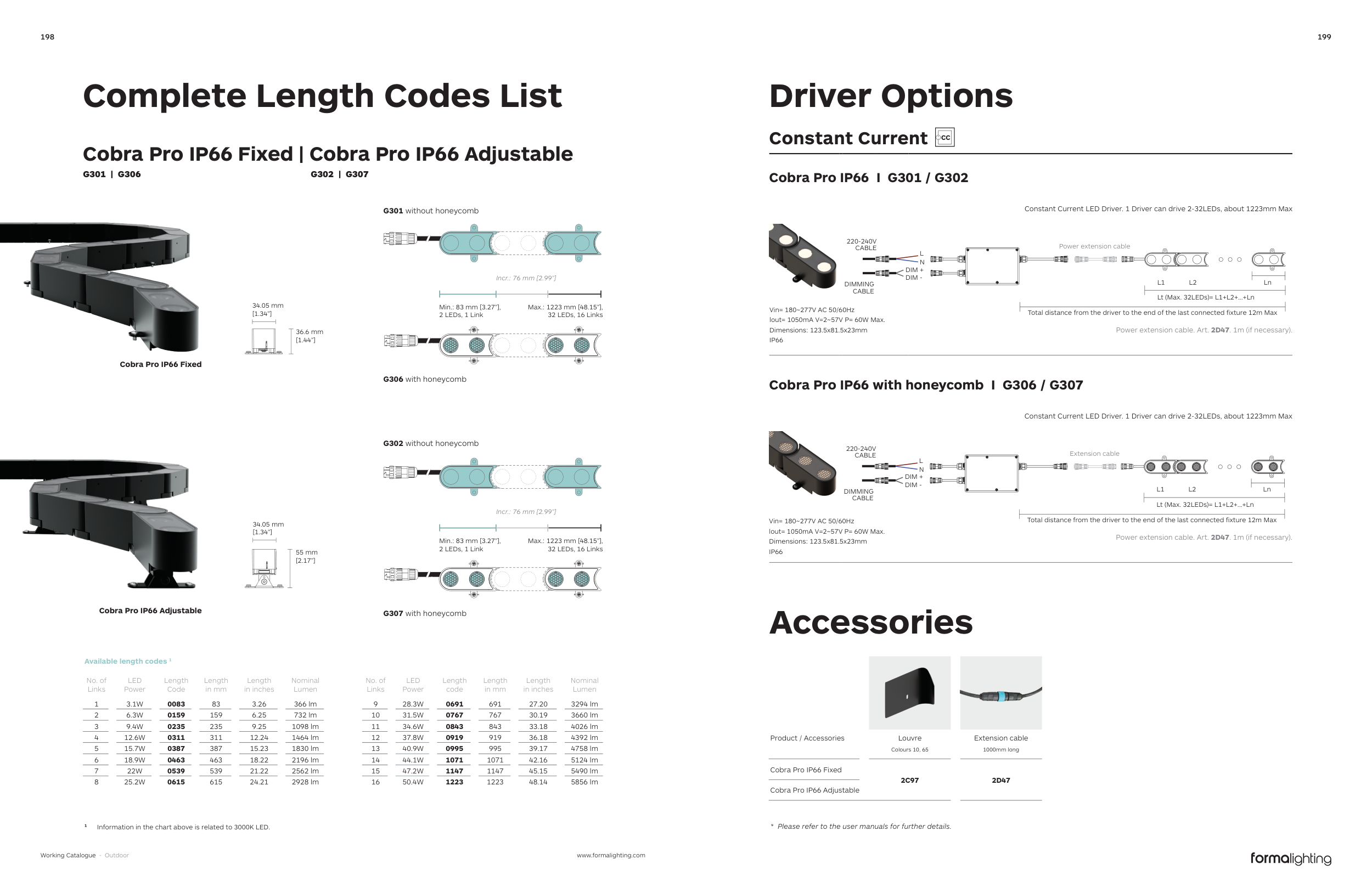

Complete Length Codes List
Cobra Pro IP66 Fixed | Cobra Pro IP66 Adjustable
G301 | G306
G302 | G307
Available length codes 1
No. of
Links
LED
Power
Length
Code
Length
in mm
Length
in inches
Nominal
Lumen
No. of
Links
LED
Power
Length
code
Length
in mm
Length
in inches
Nominal
Lumen
1
3.1W
0083
83
3.26
366 lm
9
28.3W
0691
691
27.20
3294 lm
2
6.3W
0159
159
6.25
732 lm
10
31.5W
0767
767
30.19
3660 lm
3
9.4W
0235
235
9.25
1098 lm
11
34.6W
0843
843
33.18
4026 lm
4
12.6W
0311
311
12.24
1464 lm
12
37.8W
0919
919
36.18
4392 lm
5
15.7W
0387
387
15.23
1830 lm
13
40.9W
0995
995
39.17
4758 lm
6
18.9W
0463
463
18.22
2196 lm
14
44.1W
1071
1071
42.16
5124 lm
7
22W
0539
539
21.22
2562 lm
15
47.2W
1147
1147
45.15
5490 lm
8
25.2W
0615
615
24.21
2928 lm
16
50.4W
1223
1223
48.14
5856 lm
Cobra Pro IP66 Adjustable
Cobra Pro IP66 Fixed
34.05 mm
[1.34”]
36.6 mm
[1.44”]
Min.: 83 mm [3.27”],
2 LEDs, 1 Link
Max.: 1223 mm [48.15”],
32 LEDs, 16 Links
Incr.: 76 mm [2.99”]
G301 without honeycomb
G306 with honeycomb
Min.: 83 mm [3.27”],
2 LEDs, 1 Link
Max.: 1223 mm [48.15”],
32 LEDs, 16 Links
Incr.: 76 mm [2.99”]
G302 without honeycomb
G307 with honeycomb
34.05 mm
[1.34”]
55 mm
[2.17”]
Vin= 180~277V AC 50/60Hz
lout= 1050mA V=2~57V P= 60W Max.
Dimensions: 123.5x81.5x23mm
IP66
Vin= 180~277V AC 50/60Hz
lout= 1050mA V=2~57V P= 60W Max.
Dimensions: 123.5x81.5x23mm
IP66
Constant Current
CC
Cobra Pro IP66 I G301 / G302
Constant Current LED Driver. 1 Driver can drive 2-32LEDs, about 1223mm Max
220-240V
CABLE
DIMMING
CABLE
L
DIM +
DIM -
N
Power extension cable
Lt (Max. 32LEDs)= L1+L2+...+Ln
L1
L2
Ln
Total distance from the driver to the end of the last connected fixture 12m Max
Power extension cable. Art. 2D47. 1m (if necessary).
Cobra Pro IP66 with honeycomb I G306 / G307
Constant Current LED Driver. 1 Driver can drive 2-32LEDs, about 1223mm Max
220-240V
CABLE
DIMMING
CABLE
L
DIM +
DIM -
N
Extension cable
Lt (Max. 32LEDs)= L1+L2+...+Ln
L1
L2
Ln
Total distance from the driver to the end of the last connected fixture 12m Max
Power extension cable. Art. 2D47. 1m (if necessary).
