MOTOLUX Motorized Architectural Remote Controlled Lighting
www.formalighting.com
- Recessed

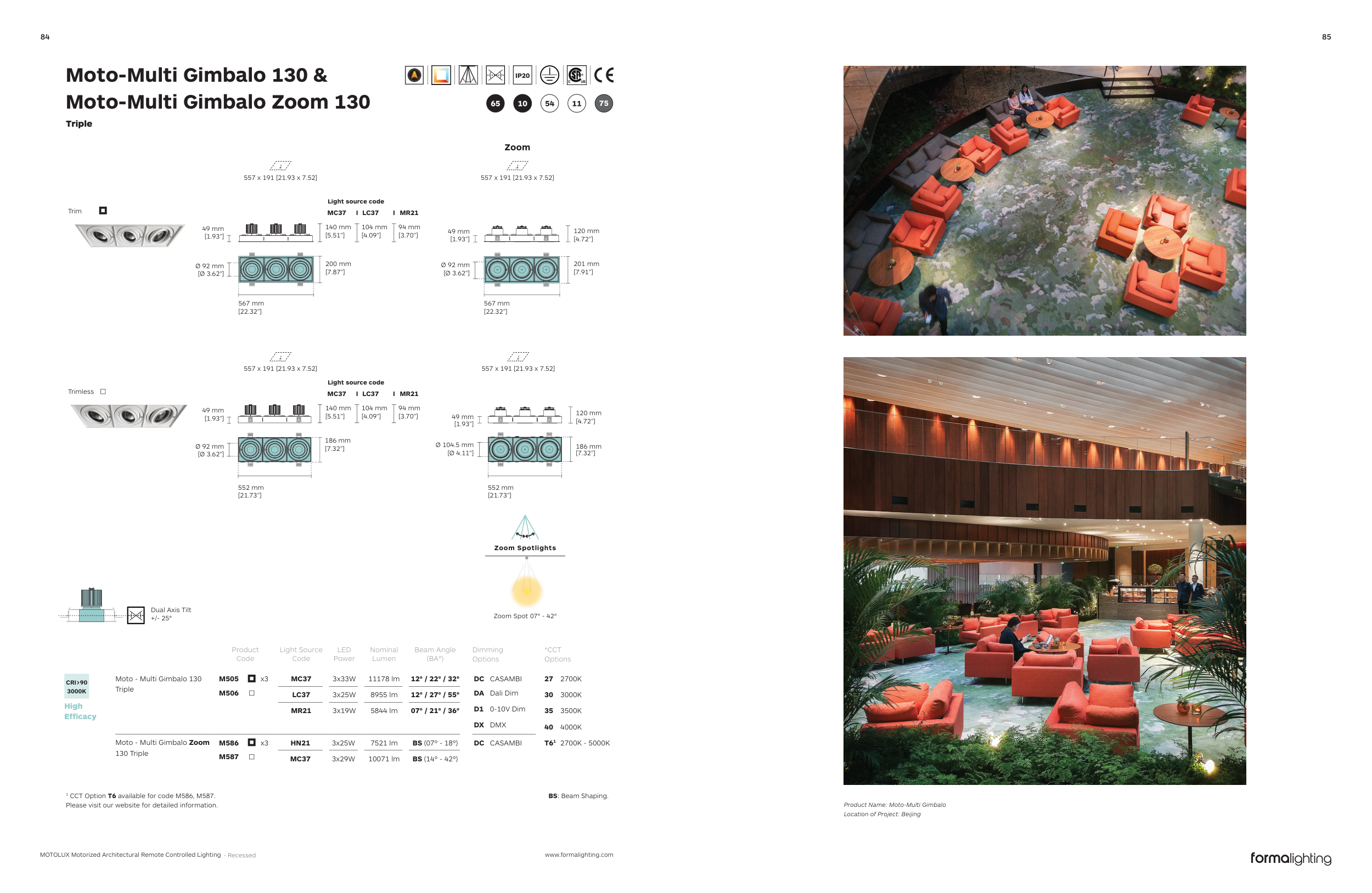

Moto-Multi Gimbalo 130 &
Moto-Multi Gimbalo Zoom 130
Triple
Product Name: Moto-Multi Gimbalo
Location of Project: Beijing
IP20
75
Dimming
Options
DC CASAMBI
DA Dali Dim
D1
0-10V Dim
DX
DMX
DC CASAMBI
*CCT
Options
27
2700K
30
3000K
35
3500K
40
4000K
T61 2700K - 5000K
Product
Code
Light Source
Code
LED
Power
Nominal
Lumen
Beam Angle
(BAº)
CRI>90
3000K
High
Efficacy
Moto - Multi Gimbalo 130
Triple
M505
x3
MC37
3x33W
11178 lm
12° / 22° / 32°
M506
LC37
3x25W
8955 lm
12° / 27° / 55°
MR21
3x19W
5844 lm
07° / 21° / 36°
Moto - Multi Gimbalo Zoom
130 Triple
M586
x3
HN21
3x25W
7521 lm
BS (07º - 18º)
M587
MC37
3x29W
10071 lm
BS (14º - 42º)
1 CCT Option T6 available for code M586, M587.
Please visit our website for detailed information.
Zoom Spot 07° - 42°
Zoom Spotlights
Zoom
557 x 191 [21.93 x 7.52]
557 x 191 [21.93 x 7.52]
557 x 191 [21.93 x 7.52]
557 x 191 [21.93 x 7.52]
BS: Beam Shaping.
Dual Axis Tilt
+/- 25°
Trim
Trimless
567 mm
[22.32”]
49 mm
[1.93”]
200 mm
[7.87”]
Ø 92 mm
[Ø 3.62"]
104 mm
[4.09”]
94 mm
[3.70”]
MC37
LC37
MR21
I
I
Light source code
140 mm
[5.51”]
186 mm
[7.32”]
49 mm
[1.93”]
552 mm
[21.73”]
Ø 92 mm
[Ø 3.62"]
104 mm
[4.09”]
94 mm
[3.70”]
MC37
LC37
MR21
I
I
Light source code
140 mm
[5.51”]
49 mm
[1.93”]
120 mm
[4.72”]
201 mm
[7.91”]
567 mm
[22.32”]
Ø 92 mm
[Ø 3.62"]
49 mm
[1.93”]
120 mm
[4.72”]
186 mm
[7.32”]
552 mm
[21.73”]
Ø 104.5 mm
[Ø 4.11"]
