MOTOLUX Motorized Architectural Remote Controlled Lighting
www.formalighting.com
- Main Voltage
Every. Angle. Covered.
Moto-Zero Zoom, the latest novelty from the award-winning MOTOLUX range, is the
ideal lighting solution for spaces with soaring ceilings, that also require frequent scene
changes.
Using the formalighting app powered by CASAMBI, the fixture’s beam angle can be
changed within a range of 7 to 45 degrees. A change in beam angle may also require the
light to be re-directed or modify its intensity, so the same app controls the pan (355°), tilt
(90°) and diming of the Moto-Zero Zoom.
Moto-Zero Zoom is available in 4 different sizes (lighthead diameter of 40cm, 66cm,
80cm, 130cm) and with specific high Color Rendering option (CRI 97+, R9 90+). The range
will soon be available in a low voltage track version.
Thanks to MOTOLUX technology, designers can create and save light scenes which may
be programmed to change automatically at specified times, as the fixtures move and
re-focus the light without the use of ladders or scaffolds.
Narrow Spot Illumination
Diffuse Illumination
Zoom Spot 10° - 35°
Zoom Spot 07° - 18°
Zoom Spotlights
315O
90O
IP20

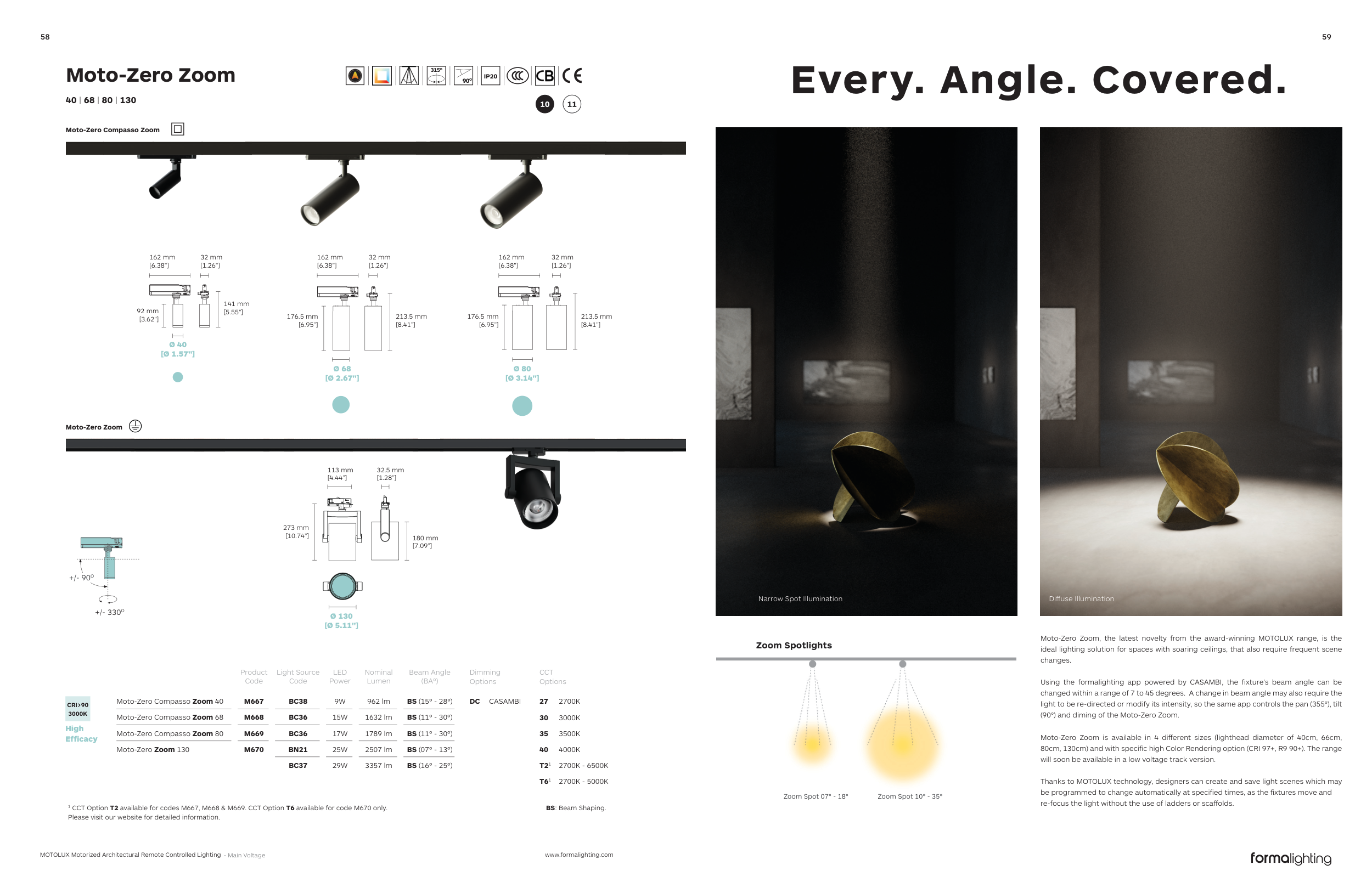

Moto-Zero Zoom
40 | 68 | 80 | 130
Moto-Zero Compasso Zoom
Ø 40
[Ø 1.57"]
162 mm
[6.38”]
32 mm
[1.26”]
141 mm
[5.55”]
92 mm
[3.62”]
162 mm
[6.38”]
32 mm
[1.26”]
Ø 68
[Ø 2.67"]
213.5 mm
[8.41”]
176.5 mm
[6.95”]
162 mm
[6.38”]
32 mm
[1.26”]
176.5 mm
[6.95”]
213.5 mm
[8.41”]
Moto-Zero Zoom
Ø 80
[Ø 3.14"]
Ø 130
[Ø 5.11"]
273 mm
[10.74”]
180 mm
[7.09”]
113 mm
[4.44”]
32.5 mm
[1.28”]
Dimming
Options
DC
CASAMBI
CCT
Options
27
2700K
30
3000K
35
3500K
40
4000K
T21
2700K - 6500K
T61
2700K - 5000K
1 CCT Option T2 available for codes M667, M668 & M669. CCT Option T6 available for code M670 only.
Please visit our website for detailed information.
Product
Code
Light Source
Code
LED
Power
Nominal
Lumen
Beam Angle
(BAº)
CRI>90
3000K
High
Efficacy
Moto-Zero Compasso Zoom 40
M667
BC38
9W
962 lm
BS (15º - 28º)
Moto-Zero Compasso Zoom 68
M668
BC36
15W
1632 lm
BS (11º - 30º)
Moto-Zero Compasso Zoom 80
M669
BC36
17W
1789 lm
BS (11º - 30º)
Moto-Zero Zoom 130
M670
BN21
25W
2507 lm
BS (07º - 13º)
BC37
29W
3357 lm
BS (16º - 25º)
+/- 330O
+/- 90O
BS: Beam Shaping.
