MOTOLUX Motorized Architectural Remote Controlled Lighting
www.formalighting.com
- EVO 48V
330O
90O
IP20
Moto-Zero Low Voltage
Moto-Zero
10 - Black
11 - White

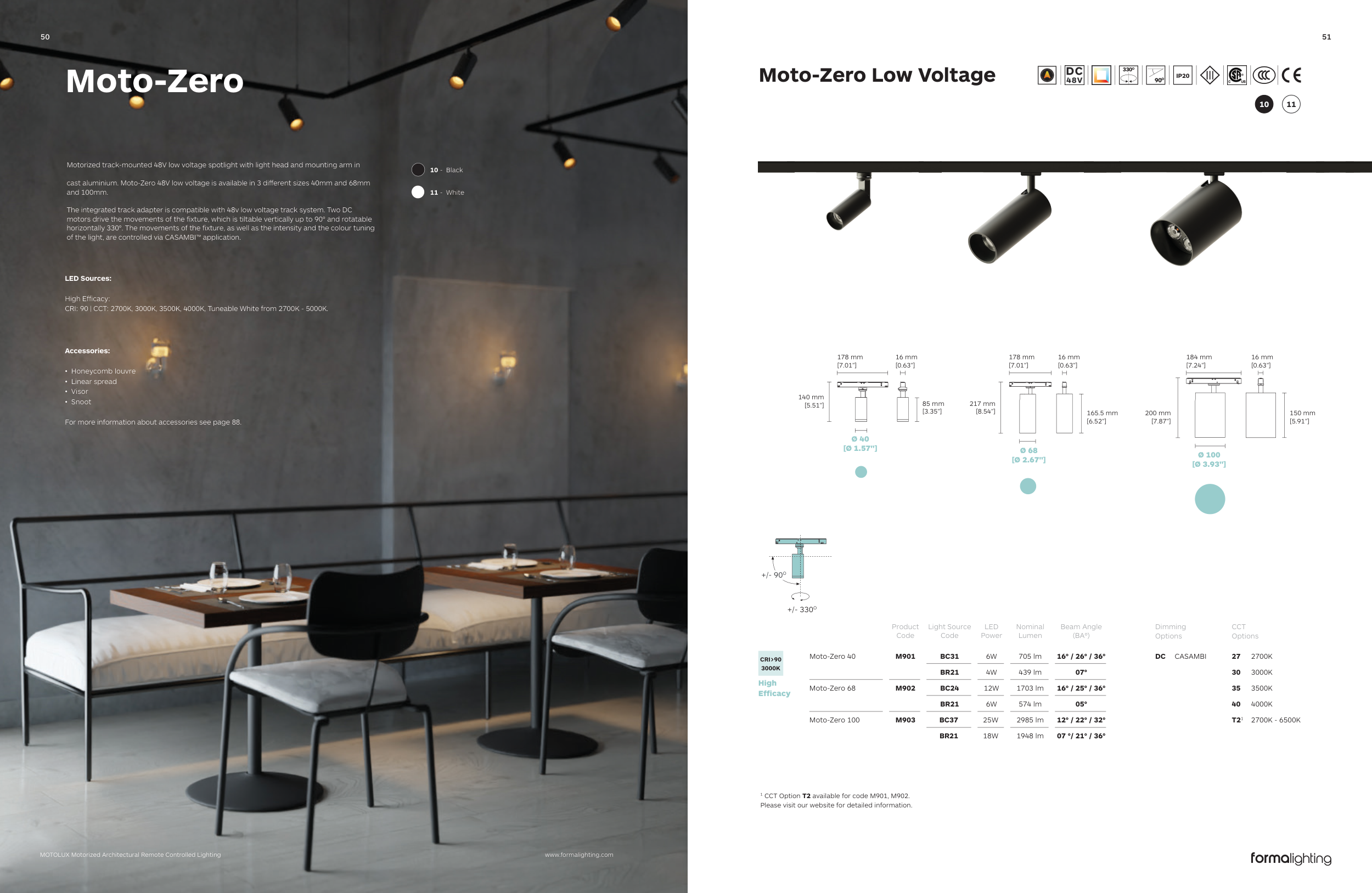

Motorized track-mounted 48V low voltage spotlight with light head and mounting arm in
cast aluminium. Moto-Zero 48V low voltage is available in 3 different sizes 40mm and 68mm
and 100mm.
The integrated track adapter is compatible with 48v low voltage track system. Two DC
motors drive the movements of the fixture, which is tiltable vertically up to 90° and rotatable
horizontally 330°. The movements of the fixture, as well as the intensity and the colour tuning
of the light, are controlled via CASAMBI™ application.
LED Sources:
High Efficacy:
CRI: 90 | CCT: 2700K, 3000K, 3500K, 4000K, Tuneable White from 2700K - 5000K.
Accessories:
• Honeycomb louvre
• Linear spread
• Visor
• Snoot
For more information about accessories see page 88.
50
MOTOLUX Motorized Architectural Remote Controlled Lighting
www.formalighting.com
Product
Code
Light Source
Code
LED
Power
Nominal
Lumen
Beam Angle
(BAº)
CRI>90
3000K
High
Efficacy
Moto-Zero 40
M901
BC31
6W
705 lm
16° / 26° / 36°
BR21
4W
439 lm
07°
Moto-Zero 68
M902
BC24
12W
1703 lm
16° / 25° / 36°
BR21
6W
574 lm
05°
Moto-Zero 100
M903
BC37
25W
2985 lm
12° / 22° / 32°
BR21
18W
1948 lm
07 °/ 21° / 36°
Dimming
Options
DC
CASAMBI
CCT
Options
27
2700K
30
3000K
35
3500K
40
4000K
T21
2700K - 6500K
1 CCT Option T2 available for code M901, M902.
Please visit our website for detailed information.
Ø 100
[Ø 3.93"]
150 mm
[5.91”]
200 mm
[7.87”]
217 mm
[8.54”]
165.5 mm
[6.52”]
178 mm
[7.01”]
178 mm
[7.01”]
184 mm
[7.24”]
16 mm
[0.63”]
16 mm
[0.63”]
16 mm
[0.63”]
85 mm
[3.35”]
140 mm
[5.51”]
+/- 330O
+/- 90O
Ø 40
[Ø 1.57"]
Ø 68
[Ø 2.67"]
