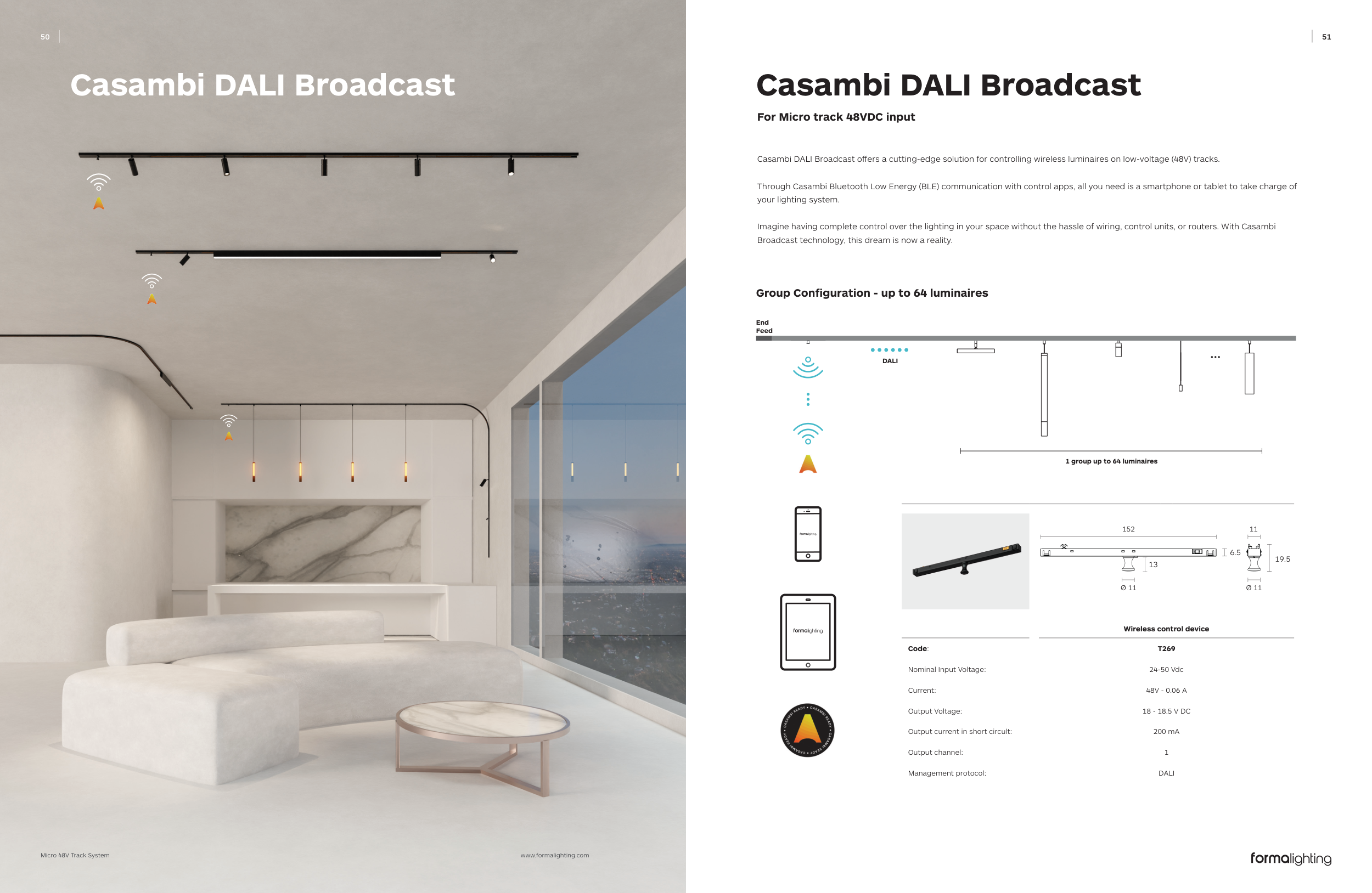

Casambi DALI Broadcast
Casambi DALI Broadcast
Group Configuration - up to 64 luminaires
For Micro track 48VDC input
Casambi DALI Broadcast offers a cutting-edge solution for controlling wireless luminaires on low-voltage (48V) tracks.
Through Casambi Bluetooth Low Energy (BLE) communication with control apps, all you need is a smartphone or tablet to take charge of
your lighting system.
Imagine having complete control over the lighting in your space without the hassle of wiring, control units, or routers. With Casambi
Broadcast technology, this dream is now a reality.
End
Feed
1 group up to 64 luminaires
13
6.5
19.5
Ø 11
11
152
Ø 11
Wireless control device
Code:
T269
Nominal Input Voltage:
24-50 Vdc
Current:
48V - 0.06 A
Output Voltage:
18 - 18.5 V DC
Output current in short circult:
200 mA
Output channel:
1
Management protocol:
DALI
DALI
www.formalighting.com
Micro 48V Track System
50
51
