Pixo Retro
Micro 48V Track
Spot
light
Ambient
light
Spot light
+
Ambient
light

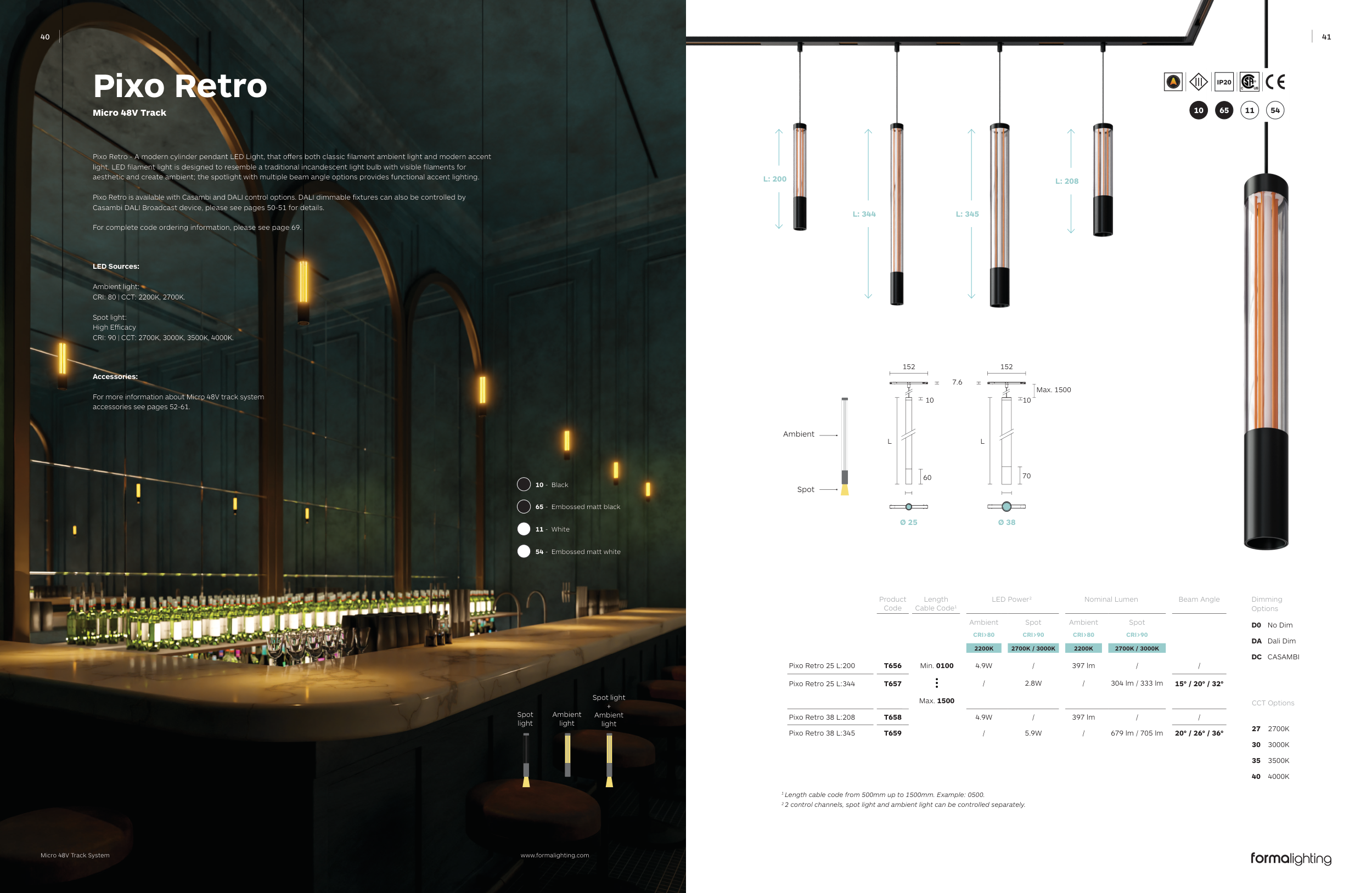

Pixo Retro - A modern cylinder pendant LED Light, that offers both classic filament ambient light and modern accent
light. LED filament light is designed to resemble a traditional incandescent light bulb with visible filaments for
aesthetic and create ambient; the spotlight with multiple beam angle options provides functional accent lighting.
Pixo Retro is available with Casambi and DALI control options. DALI dimmable fixtures can also be controlled by
Casambi DALI Broadcast device, please see pages 50-51 for details.
For complete code ordering information, please see page 69.
1 Length cable code from 500mm up to 1500mm. Example: 0500.
IP20
L: 200
L: 344
L: 345
L: 208
152
7.6
60
10
L
Ambient
Spot
Ø 25
152
Max. 1500
70
10
L
Ø 38
Product
Code
Length
Cable Code1
LED Power2
Nominal Lumen
Beam Angle
Ambient
Spot
Ambient
Spot
CRI>80
CRI>90
CRI>80
CRI>90
2200K
2700K / 3000K
2200K
2700K / 3000K
Pixo Retro 25 L:200
T656
Min. 0100
4.9W
/
397 lm
/
/
Pixo Retro 25 L:344
T657
/
2.8W
/
304 lm / 333 lm
15° / 20° / 32°
Max. 1500
Pixo Retro 38 L:208
T658
4.9W
/
397 lm
/
/
Pixo Retro 38 L:345
T659
/
5.9W
/
679 lm / 705 lm
20° / 26° / 36°
Dimming
Options
D0
No Dim
DA
Dali Dim
DC CASAMBI
CCT Options
27
2700K
30
3000K
35
3500K
40
4000K
LED Sources:
Ambient light:
CRI: 80 | CCT: 2200K, 2700K.
Spot light:
High Efficacy
CRI: 90 | CCT: 2700K, 3000K, 3500K, 4000K.
Accessories:
For more information about Micro 48V track system
accessories see pages 52-61.
10 - Black
65 - Embossed matt black
11 - White
54 - Embossed matt white
www.formalighting.com
Micro 48V Track System
40
41
2 2 control channels, spot light and ambient light can be controlled separately.
