Micro 48V Track System
36
37
Polaris 20 Wallwasher Low Voltage micro track light in extruded aluminum
in four different lengths, aisle spotlight with special high-definition optics
made of thermoplastic material, integrated glare shield with luminance
glare control, energy-efficient high-power LEDs with excellent color
rendering; wallwasher light distribution with supreme uniformity.
Polaris 20 Wallwasher is available with Casambi and DALI control options.
DALI dimmable fixtures can also be controlled by Casambi DALI
Broadcast device, please see pages 50-51 for details.
For complete code ordering information, please see page 67.
3 LEDs
6 LEDs
9 LEDs

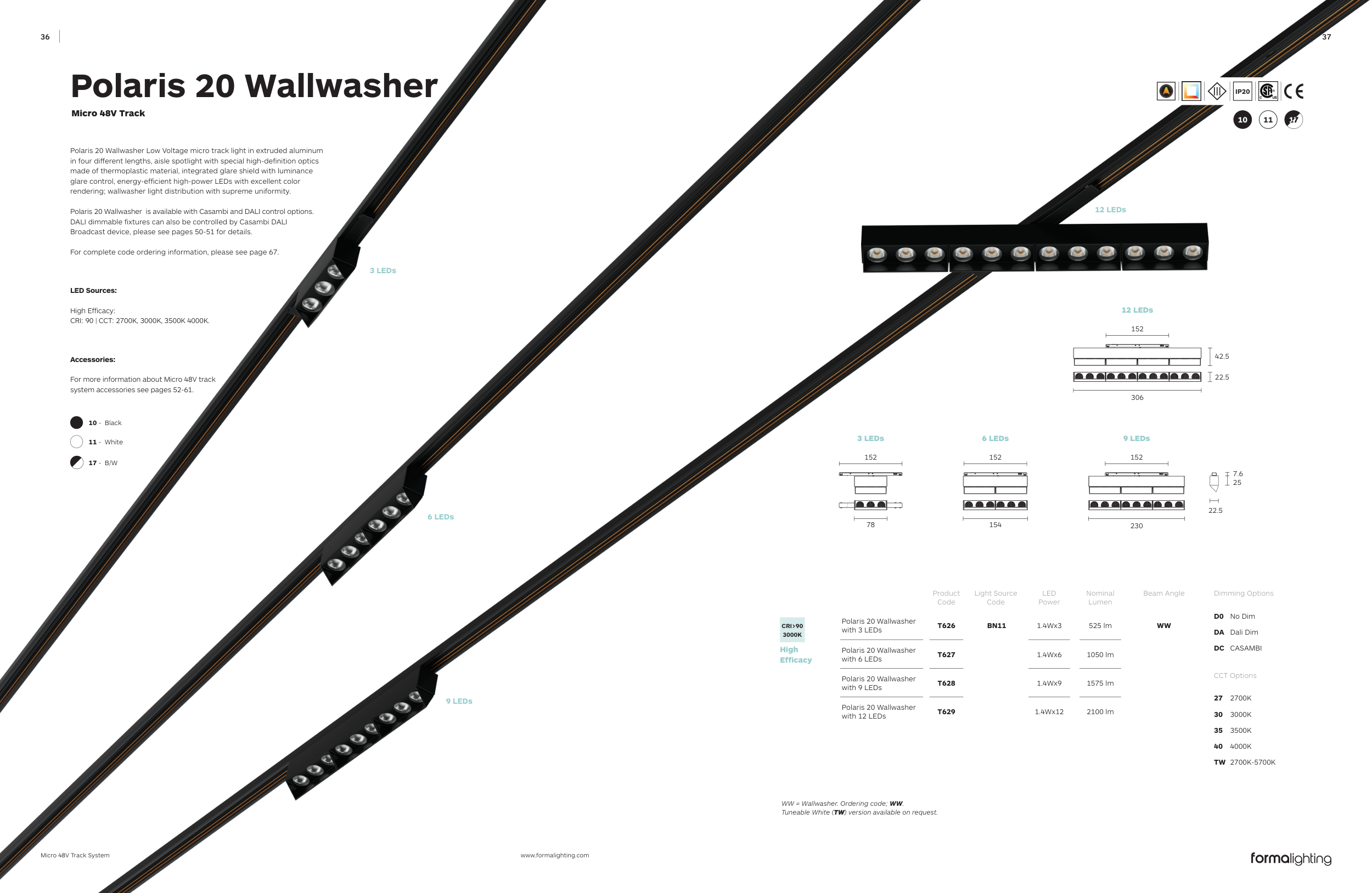

Polaris 20 Wallwasher
Micro 48V Track
CCT Options
27
2700K
30
3000K
35
3500K
40
4000K
TW 2700K-5700K
IP20
Dimming Options
D0
No Dim
DA
Dali Dim
DC CASAMBI
Product
Code
Light Source
Code
LED
Power
Nominal
Lumen
Beam Angle
CRI>90
3000K
High
Efficacy
Polaris 20 Wallwasher
with 3 LEDs
T626
BN11
1.4Wx3
525 lm
WW
Polaris 20 Wallwasher
with 6 LEDs
T627
1.4Wx6
1050 lm
Polaris 20 Wallwasher
with 9 LEDs
T628
1.4Wx9
1575 lm
Polaris 20 Wallwasher
with 12 LEDs
T629
1.4Wx12
2100 lm
12 LEDs
12 LEDs
152
306
3 LEDs
78
152
9 LEDs
230
152
42.5
22.5
6 LEDs
154
152
22.5
25
7.6
LED Sources:
High Efficacy:
CRI: 90 | CCT: 2700K, 3000K, 3500K 4000K.
WW = Wallwasher. Ordering code; WW.
Accessories:
For more information about Micro 48V track
system accessories see pages 52-61.
Tuneable White (TW) version available on request.
10 - Black
11 - White
17 - B/W
