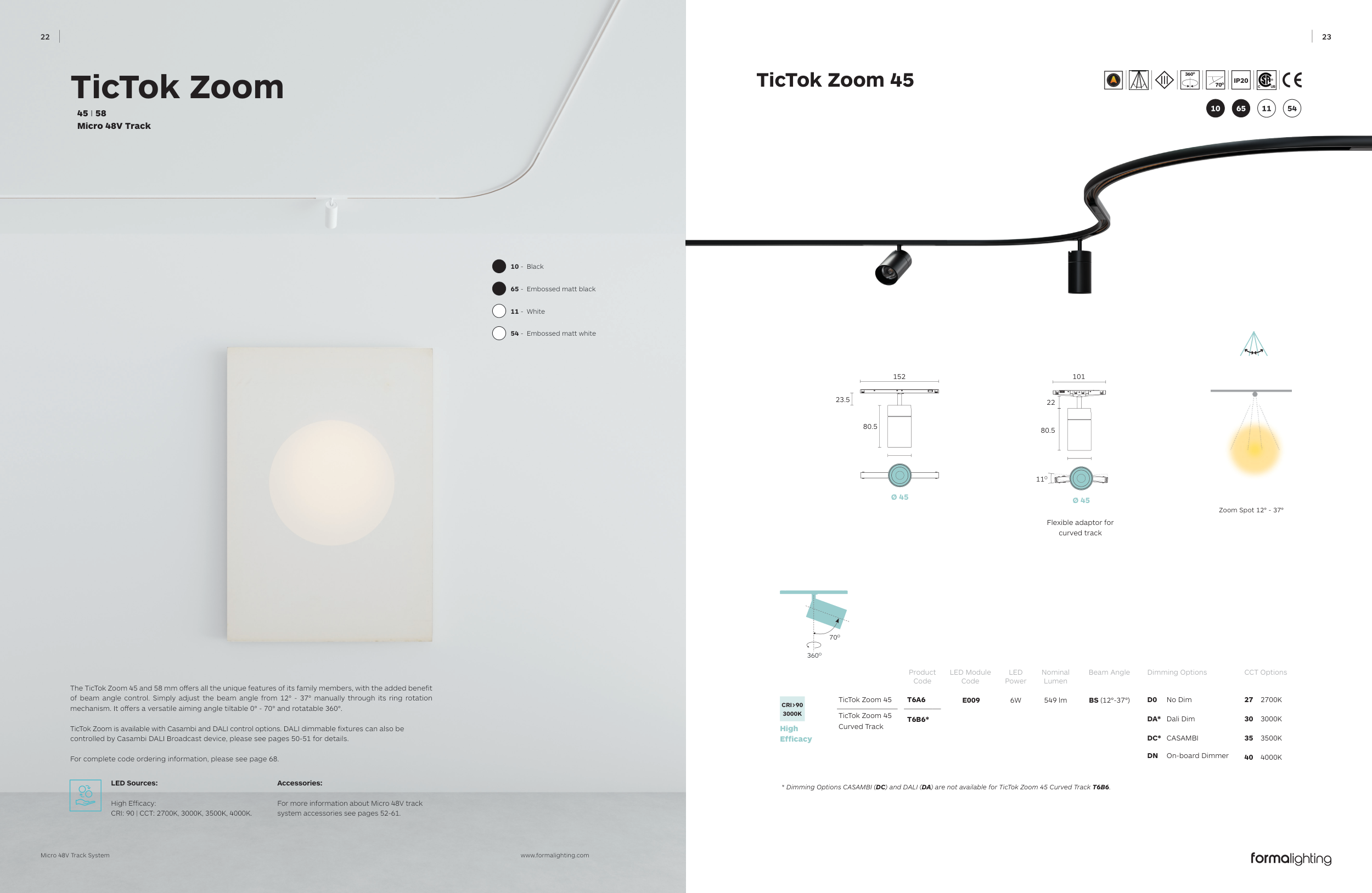

TicTok Zoom
Dimming Options
D0
No Dim
DA* Dali Dim
DC* CASAMBI
DN
On-board Dimmer
CCT Options
27
2700K
30
3000K
35
3500K
40
4000K
TicTok Zoom 45
360O
70O
IP20
Product
Code
LED Module
Code
LED
Power
Nominal
Lumen
Beam Angle
CRI>90
3000K
High
Efficacy
TicTok Zoom 45
T6A6
E009
6W
549 lm
BS (12°-37°)
TicTok Zoom 45
Curved Track
T6B6*
Zoom Spot 12° - 37°
45 I 58
Micro 48V Track
The TicTok Zoom 45 and 58 mm offers all the unique features of its family members, with the added benefit
of beam angle control. Simply adjust the beam angle from 12° - 37° manually through its ring rotation
mechanism. It offers a versatile aiming angle tiltable 0° - 70° and rotatable 360°.
TicTok Zoom is available with Casambi and DALI control options. DALI dimmable fixtures can also be
controlled by Casambi DALI Broadcast device, please see pages 50-51 for details.
For complete code ordering information, please see page 68.
Accessories:
For more information about Micro 48V track
system accessories see pages 52-61.
LED Sources:
High Efficacy:
CRI: 90 | CCT: 2700K, 3000K, 3500K, 4000K.
Ø 45
152
80.5
23.5
Ø 45
101
22
80.5
11O
10 - Black
65 - Embossed matt black
11 - White
54 - Embossed matt white
70O
360O
www.formalighting.com
Micro 48V Track System
22
23
Flexible adaptor for
curved track
* Dimming Options CASAMBI (DC) and DALI (DA) are not available for TicTok Zoom 45 Curved Track T6B6.
