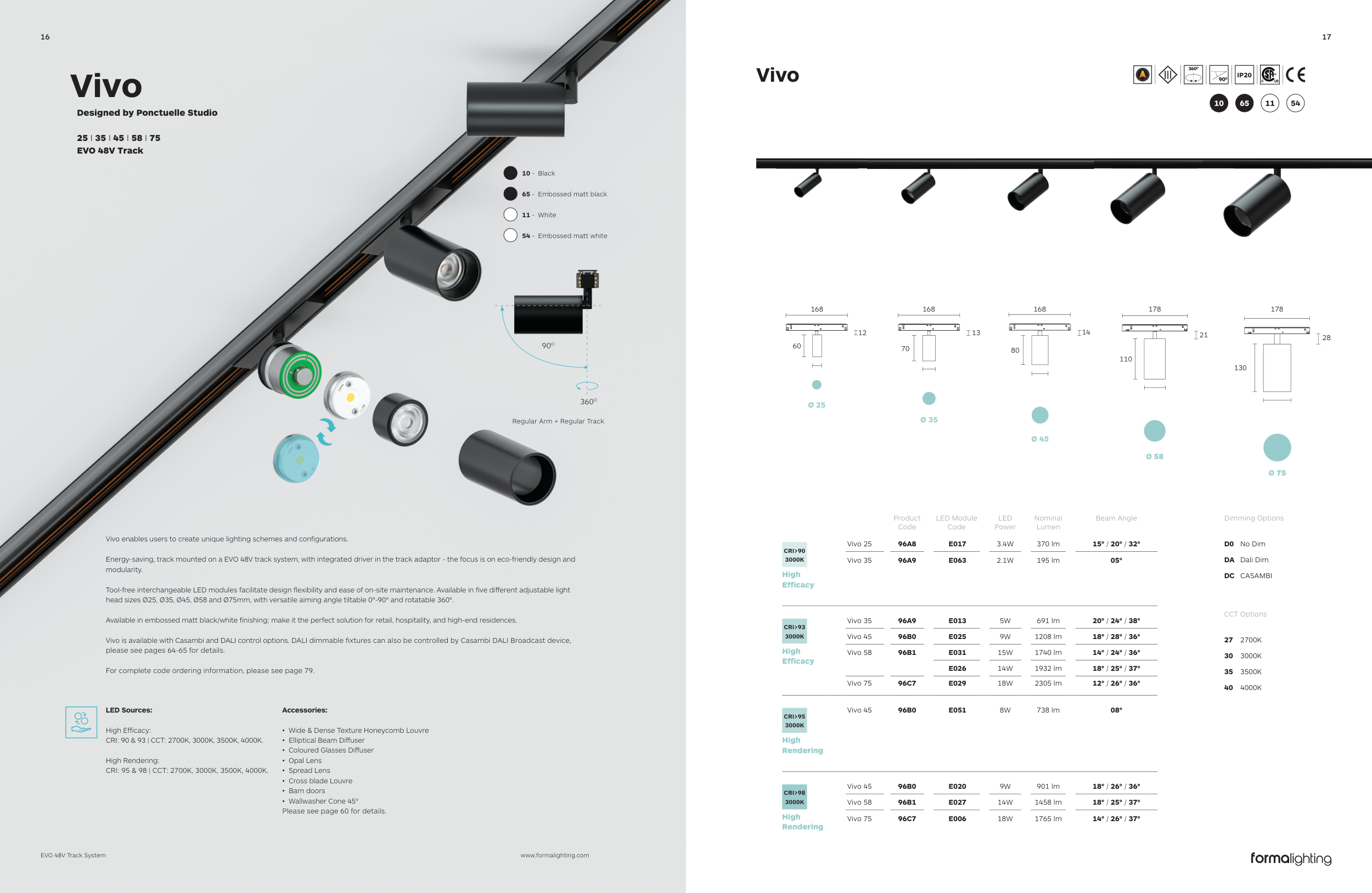

EVO 48V Track System
Vivo
www.formalighting.com
16
EVO 48V Track System
Vivo enables users to create unique lighting schemes and configurations.
Energy-saving, track mounted on a EVO 48V track system, with integrated driver in the track adaptor - the focus is on eco-friendly design and
modularity.
Tool-free interchangeable LED modules facilitate design flexibility and ease of on-site maintenance. Available in five different adjustable light
head sizes Ø25, Ø35, Ø45, Ø58 and Ø75mm, with versatile aiming angle tiltable 0°-90° and rotatable 360°.
Available in embossed matt black/white finishing; make it the perfect solution for retail, hospitality, and high-end residences.
Vivo is available with Casambi and DALI control options. DALI dimmable fixtures can also be controlled by Casambi DALI Broadcast device,
please see pages 64-65 for details.
For complete code ordering information, please see page 79.
Regular Arm + Regular Track
360O
Dimming Options
D0
No Dim
DA
Dali Dim
DC CASAMBI
CCT Options
27
2700K
30
3000K
35
3500K
40
4000K
Product
Code
LED Module
Code
LED
Power
Nominal
Lumen
Beam Angle
CRI>90
3000K
High
Efficacy
Vivo 25
96A8
E017
3.4W
370 lm
15° / 20° / 32°
Vivo 35
96A9
E063
2.1W
195 lm
05°
CRI>93
3000K
High
Efficacy
Vivo 35
96A9
E013
5W
691 lm
20° / 24° / 38°
Vivo 45
96B0
E025
9W
1208 lm
18° / 28° / 36°
Vivo 58
96B1
E031
15W
1740 lm
14° / 24° / 36°
E026
14W
1932 lm
18° / 25° / 37°
Vivo 75
96C7
E029
18W
2305 lm
12° / 26° / 36°
CRI>95
3000K
High
Rendering
Vivo 45
96B0
E051
8W
738 lm
08°
CRI>98
3000K
High
Rendering
Vivo 45
96B0
E020
9W
901 lm
18° / 26° / 36°
Vivo 58
96B1
E027
14W
1458 lm
18° / 25° / 37°
Vivo 75
96C7
E006
18W
1765 lm
14° / 26° / 37°
Vivo
25 I 35 I 45 I 58 I 75
EVO 48V Track
Designed by Ponctuelle Studio
LED Sources:
High Efficacy:
CRI: 90 & 93 | CCT: 2700K, 3000K, 3500K, 4000K.
High Rendering:
CRI: 95 & 98 | CCT: 2700K, 3000K, 3500K, 4000K.
Accessories:
• Wide & Dense Texture Honeycomb Louvre
• Elliptical Beam Diffuser
• Coloured Glasses Diffuser
• Opal Lens
• Spread Lens
• Cross blade Louvre
• Barn doors
• Wallwasher Cone 45°
Please see page 60 for details.
360O
90O
IP20
Ø 25
Ø 35
Ø 45
Ø 58
Ø 75
10 - Black
65 - Embossed matt black
11 - White
54 - Embossed matt white
90O
168
12
60
168
13
70
168
14
80
178
21
110
178
28
130
