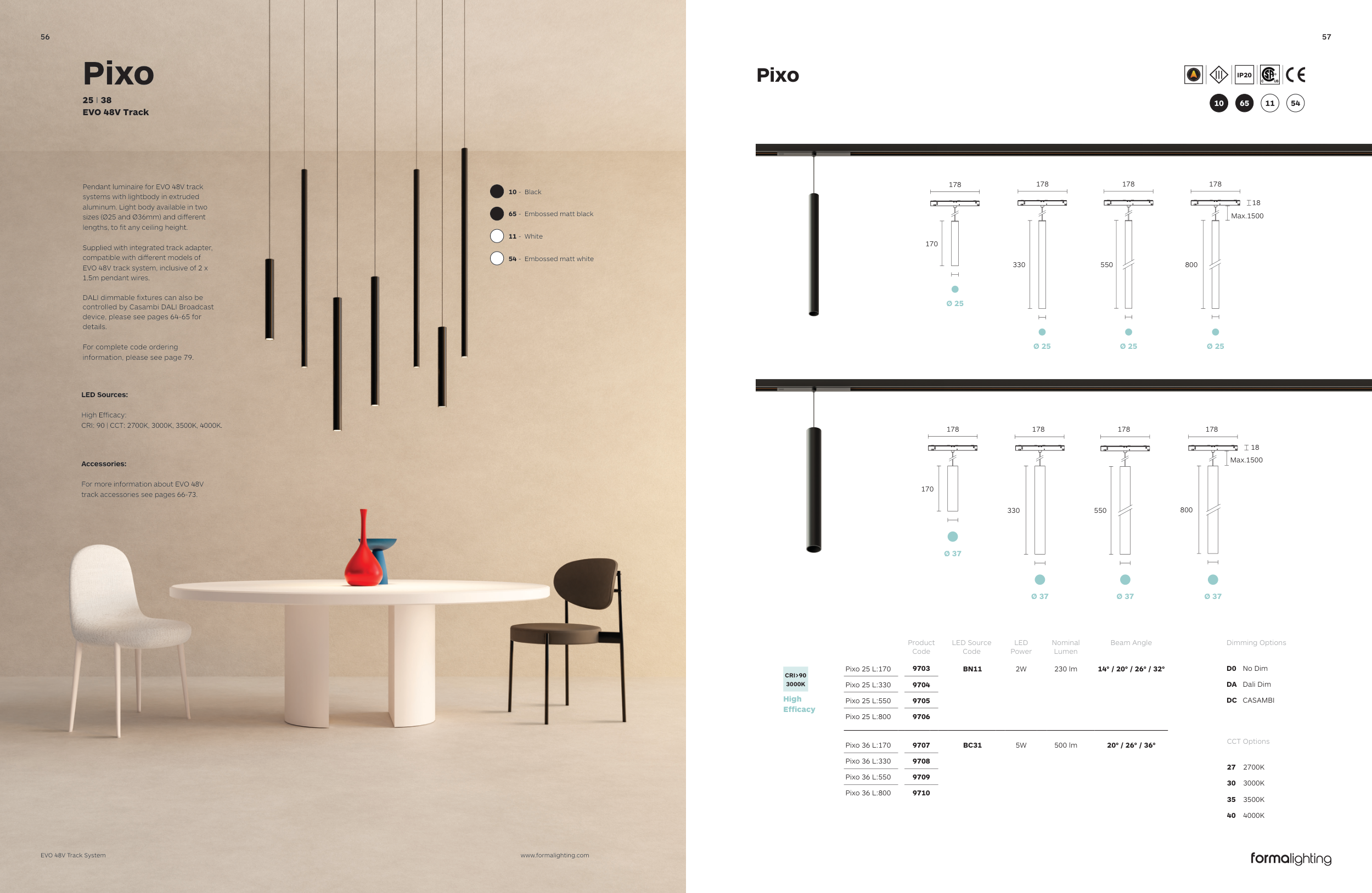

EVO 48V Track System
Pendant luminaire for EVO 48V track
systems with lightbody in extruded
aluminum. Light body available in two
sizes (Ø25 and Ø36mm) and different
lengths, to fit any ceiling height.
Supplied with integrated track adapter,
compatible with different models of
EVO 48V track system, inclusive of 2 x
1.5m pendant wires.
DALI dimmable fixtures can also be
controlled by Casambi DALI Broadcast
device, please see pages 64-65 for
details.
For complete code ordering
information, please see page 79.
LED Sources:
High Efficacy:
CRI: 90 | CCT: 2700K, 3000K, 3500K, 4000K.
Accessories:
For more information about EVO 48V
track accessories see pages 66-73.
25 I 38
EVO 48V Track
Pixo
www.formalighting.com
56
EVO 48V Track System
10 - Black
65 - Embossed matt black
11 - White
54 - Embossed matt white
Pixo
Dimming Options
D0
No Dim
DA
Dali Dim
DC CASAMBI
CCT Options
27
2700K
30
3000K
35
3500K
40
4000K
Product
Code
LED Source
Code
LED
Power
Nominal
Lumen
Beam Angle
CRI>90
3000K
High
Efficacy
Pixo 25 L:170
9703
BN11
2W
230 lm
14° / 20° / 26° / 32°
Pixo 25 L:330
9704
Pixo 25 L:550
9705
Pixo 25 L:800
9706
Pixo 36 L:170
9707
BC31
5W
500 lm
20° / 26° / 36°
Pixo 36 L:330
9708
Pixo 36 L:550
9709
Pixo 36 L:800
9710
170
178
330
178
550
178
18
800
Max.1500
178
178
170
330
178
550
178
800
178
18
Max.1500
IP20
Ø 25
Ø 37
Ø 25
Ø 25
Ø 25
Ø 37
Ø 37
Ø 37
