EVO 48V Track System
Filo
EVO 48V Track
10 - Black
11 - White

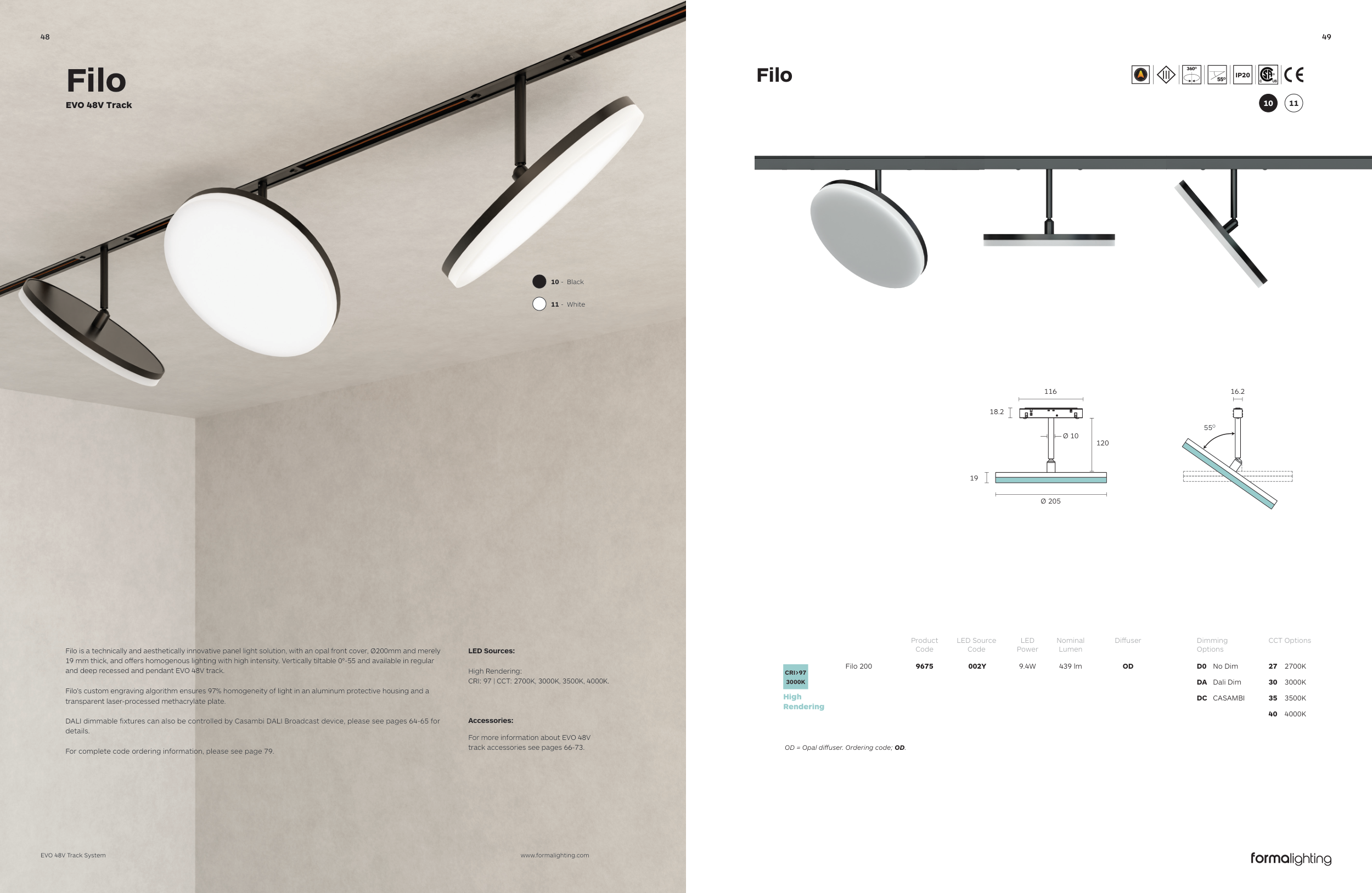

Filo is a technically and aesthetically innovative panel light solution, with an opal front cover, Ø200mm and merely
19 mm thick, and offers homogenous lighting with high intensity. Vertically tiltable 0°-55 and available in regular
and deep recessed and pendant EVO 48V track.
Filo’s custom engraving algorithm ensures 97% homogeneity of light in an aluminum protective housing and a
transparent laser-processed methacrylate plate.
DALI dimmable fixtures can also be controlled by Casambi DALI Broadcast device, please see pages 64-65 for
details.
For complete code ordering information, please see page 79.
LED Sources:
High Rendering:
CRI: 97 | CCT: 2700K, 3000K, 3500K, 4000K.
Accessories:
For more information about EVO 48V
track accessories see pages 66-73.
www.formalighting.com
48
EVO 48V Track System
120
19
Ø 205
116
18.2
Ø 10
55O
16.2
Filo
Product
Code
LED Source
Code
LED
Power
Nominal
Lumen
Diffuser
CRI>97
3000K
High
Rendering
Filo 200
9675
002Y
9.4W
439 lm
OD
Dimming
Options
D0
No Dim
DA
Dali Dim
DC CASAMBI
CCT Options
27
2700K
30
3000K
35
3500K
40
4000K
360O
55O
IP20
OD = Opal diffuser. Ordering code; OD.
